Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 190-00763-01 Rev. A 62
FLIGHT INSTRUMENTS
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
HORIZONTAL SITUATION INDICATOR (HSI)
The Horizontal Situation Indicator (HSI) displays a rotating compass in a heading-up orientation. Letters
indicate the cardinal points and numeric labels occur every 30˚. Major tick marks are at 10˚ intervals and minor
tick marks at 5˚ intervals. A digital reading of the current heading appears on top of the HSI, and the current
track is represented on the HSI by a magenta diamond bug. The HSI also presents turn rate, course deviation,
bearing, and navigation source information.
The 360˚ HSI contains a Course Deviation Indicator (CDI), with a Course Pointer, To/From Indicator, and a
sliding deviation bar and scale. The course pointer is a single line arrow (GPS, VOR1, and LOC1) or a double
line arrow (VOR2 and LOC2) which points in the direction of the set course. The To/From arrow rotates with
the course pointer and is displayed when the active NAVAID is received.
1 Turn Rate Indicator
2 Current Track Indicator
3 Lateral Deviation Scale
4 Navigation Source
5 Aircraft Symbol
6 Course Deviation Indicator
(CDI)
7 Rotating Compass Rose
8 OBS Mode Active
9 To/From Indicator
10 Course Pointer
11 Selected Heading Bug
12 Flight Phase
13 Turn Rate/Heading
Trend Vector
14 Current Heading
15 Lubber Line

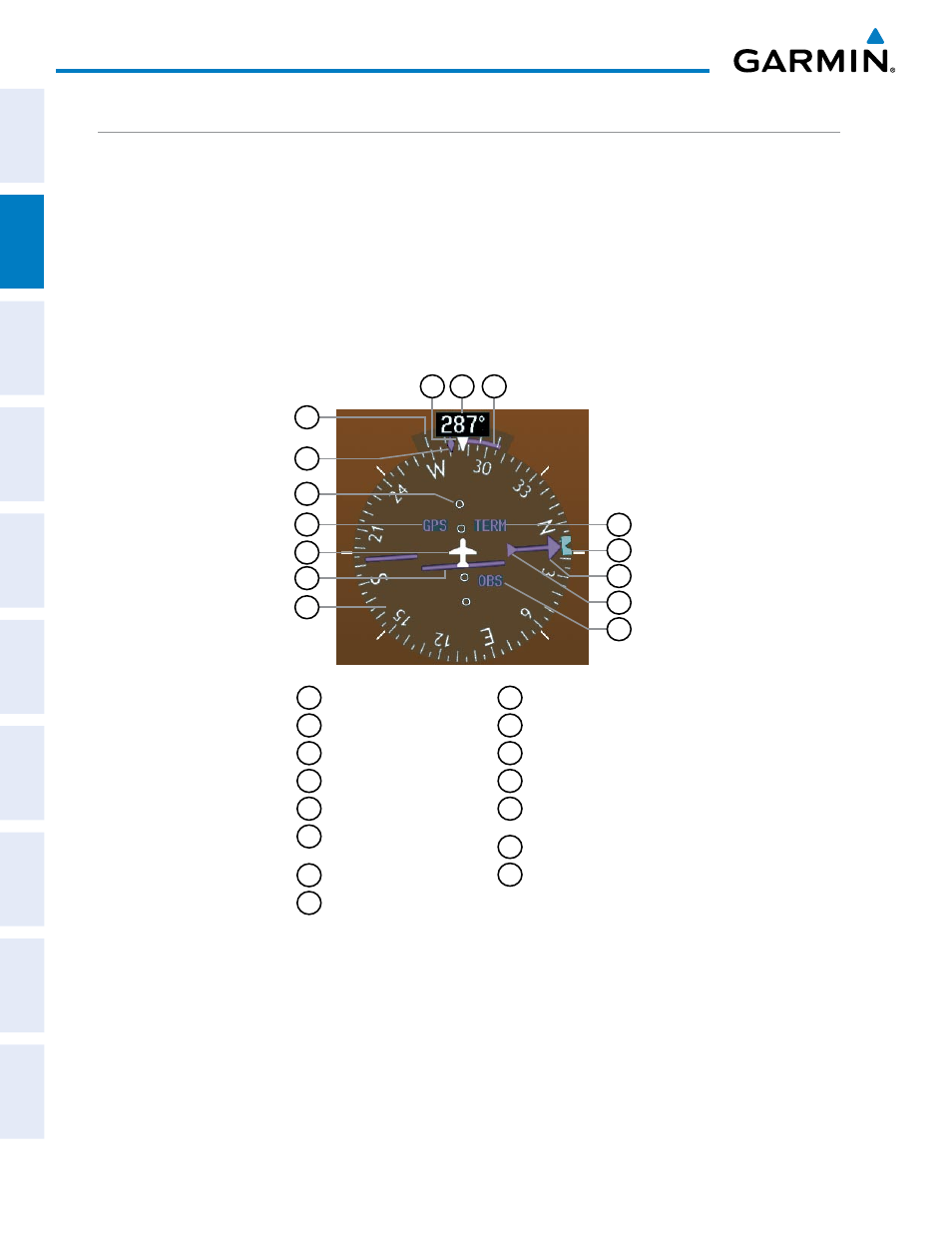

Figure 2-16 Horizontal Situation Indicator (HSI)
11
7
6
5
3
2
1
12
10
4
14 15 13
8
9
