Displaying traffic on the Navigation Map
1) Ensure that the TAS system is operating. With the Navigation Map displayed, select the MAP Softkey.
2) Select the TRAFFIC Softkey. Traffic is now displayed on the map as shown in the figure.
Proximity
Traffic

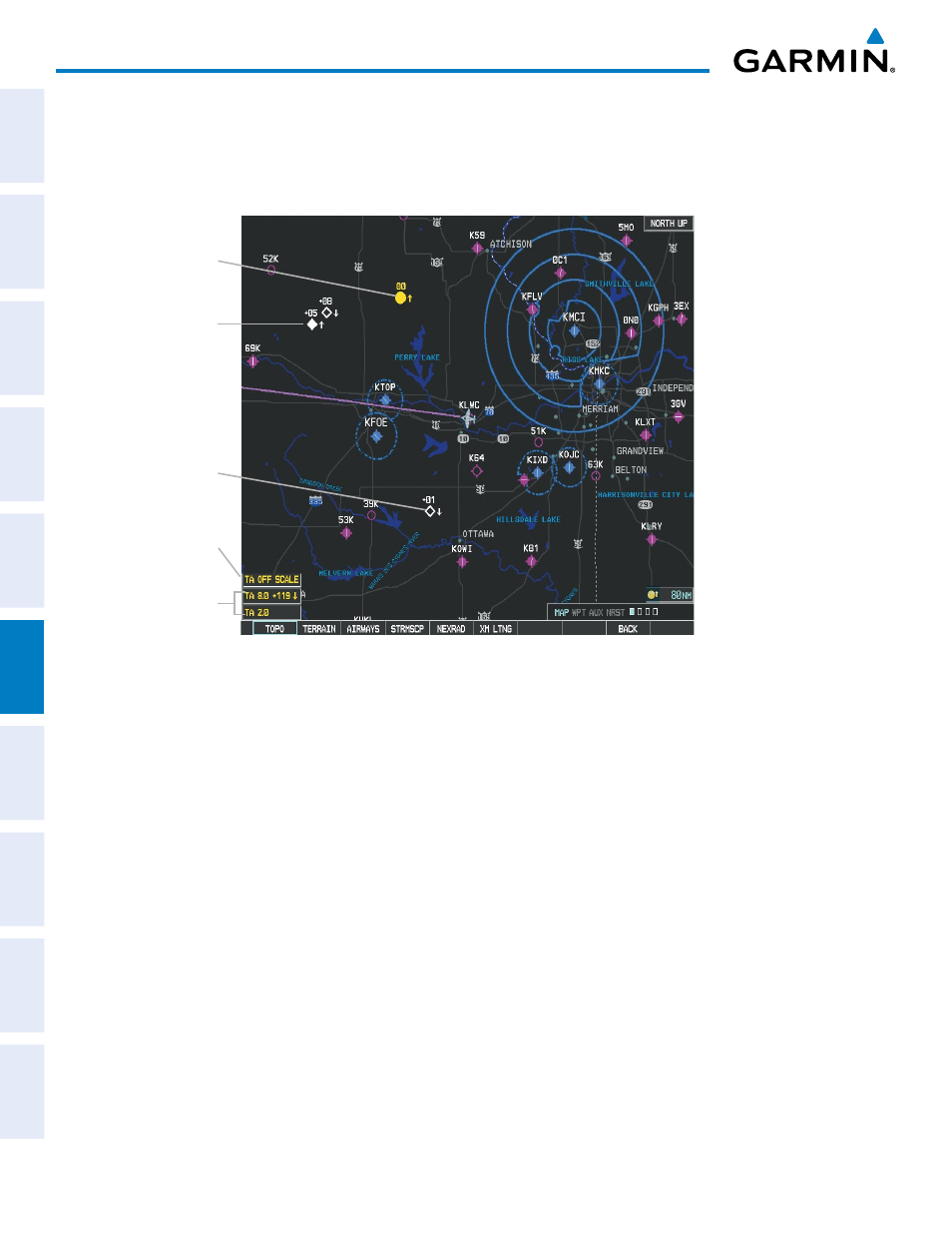

Figure 6-94 TAS Traffic on Navigation Map
Traffic
Advisory
TA Off Scale
Banner
Non-Bearing
Traffic Advisories
Non-Threat
Traffic
Displaying traffic information (PFD Inset Map):
1) Select the INSET Softkey.
2) Select the TRAFFIC Softkey to select TRFC-1 and display traffic data.
3) Select the TRAFFIC Softkey again to select TRFC-2 and display the traffic-only inset.
4) Select the TRAFFIC Softkey to deselect TRFC-2 and remove traffic data.
