APPENDIX A
COMPARATOR ANNUNCIATIONS
Comparator Window
Text
Condition
ALT MISCOMP Difference in altitude sensors is > 200 ft.
IAS MISCOMP
If both airspeed sensors detect < 35 knots, this is inhibited.
If either airspeed sensor detects > 35 knots, and the difference in sensors is > 10 kts.
If either airspeed sensor detects > 80 knots, and the difference in sensors is > 7 kts.
HDG MISCOMP Difference in heading sensors is > 6 degrees.
PIT MISCOMP Difference in pitch sensors is > 5 degrees.
ROL MISCOMP Difference in roll sensors is > 6 degrees.
ALT NO COMP No data from one or both altitude sensors.
IAS NO COMP No data from one or both airspeed sensors.
HDG NO COMP No data from one or both heading sensors.
PIT NO COMP No data from one or both pitch sensors.
ROL NO COMP No data from one or both roll sensors..

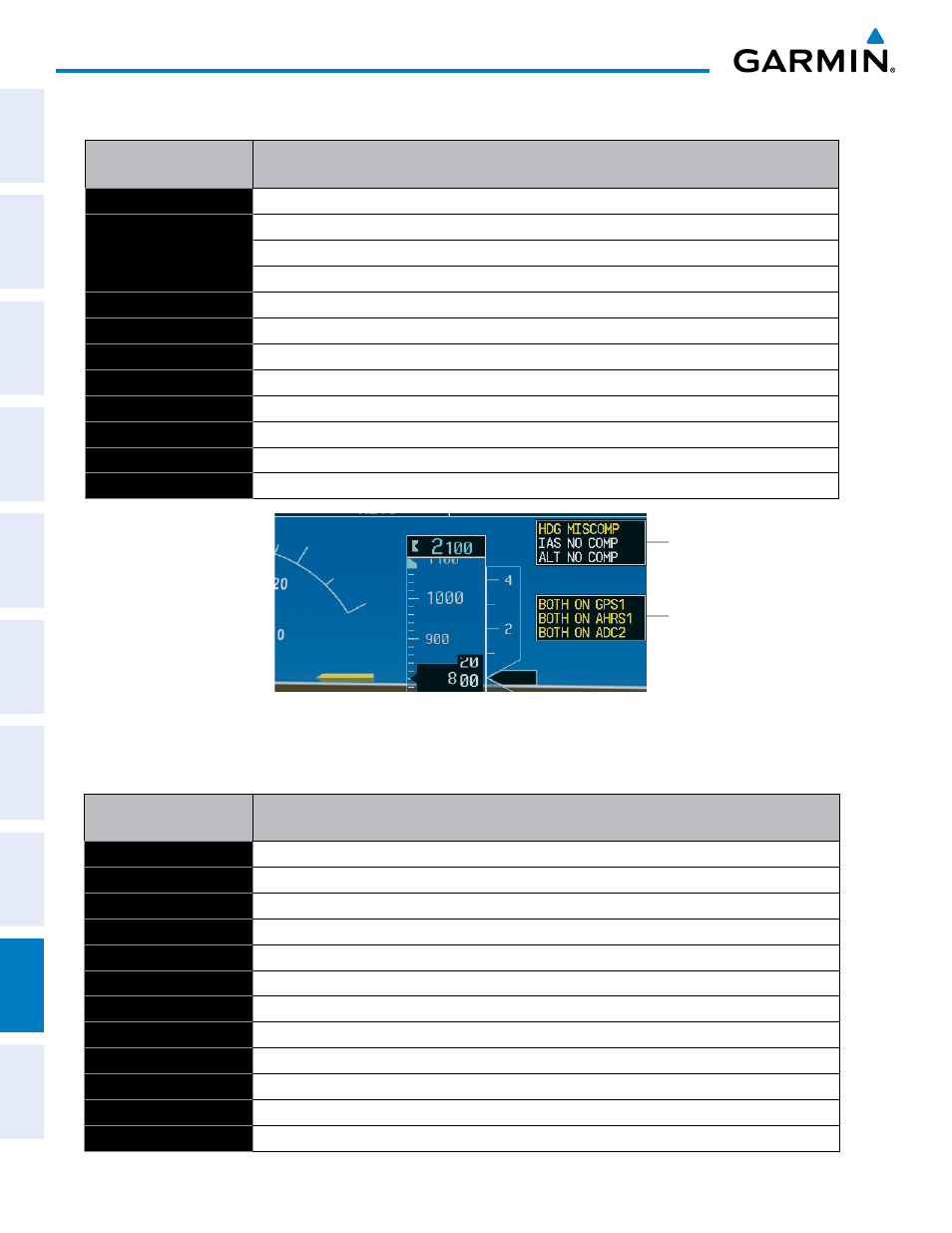

Figure A-3 Comparator and Reversionary Sensor Annunciation Windows
Comparator
Window
Reversionary
Sensor
Window
REVERSIONARY SENSOR ANNUNCIATIONS
Reversionary Sensor
Window Text
Condition
BOTH ON ADC1 Both PFDs are displaying data from the number one Air Data Computer.
BOTH ON ADC2 Both PFDs are displaying data from the number two Air Data Computer.
BOTH ON AHRS1 Both PFDs are displaying data from the number one Attitude & Heading Reference System.
BOTH ON AHRS2 Both PFDs are displaying data from the number two Attitude & Heading Reference System.
BOTH ON GPS1 Both PFDs are displaying data from the number one GPS receiver.
BOTH ON GPS2 Both PFDs are displaying data from the number two GPS receiver.
USING ADC1 PFD2 is displaying data from the #1 Air Data Computer.
USING ADC2 PFD1 is displaying data from the #2 Air Data Computer.
USING AHRS1 PFD2 is displaying data from the #1 AHRS.
USING AHRS2 PFD1 is displaying data from the #2 AHRS.
USING GPS1 PFD2 is displaying data from the #1 GPS.
USING GPS2 PFD1 is displaying data from the #2 GPS.
