88 www.xilinx.com Virtex-5 FPGA ML561 User Guide
UG199 (v1.2.1) June 15, 2009
Chapter 7: ML561 Hardware-Simulation Correlation R

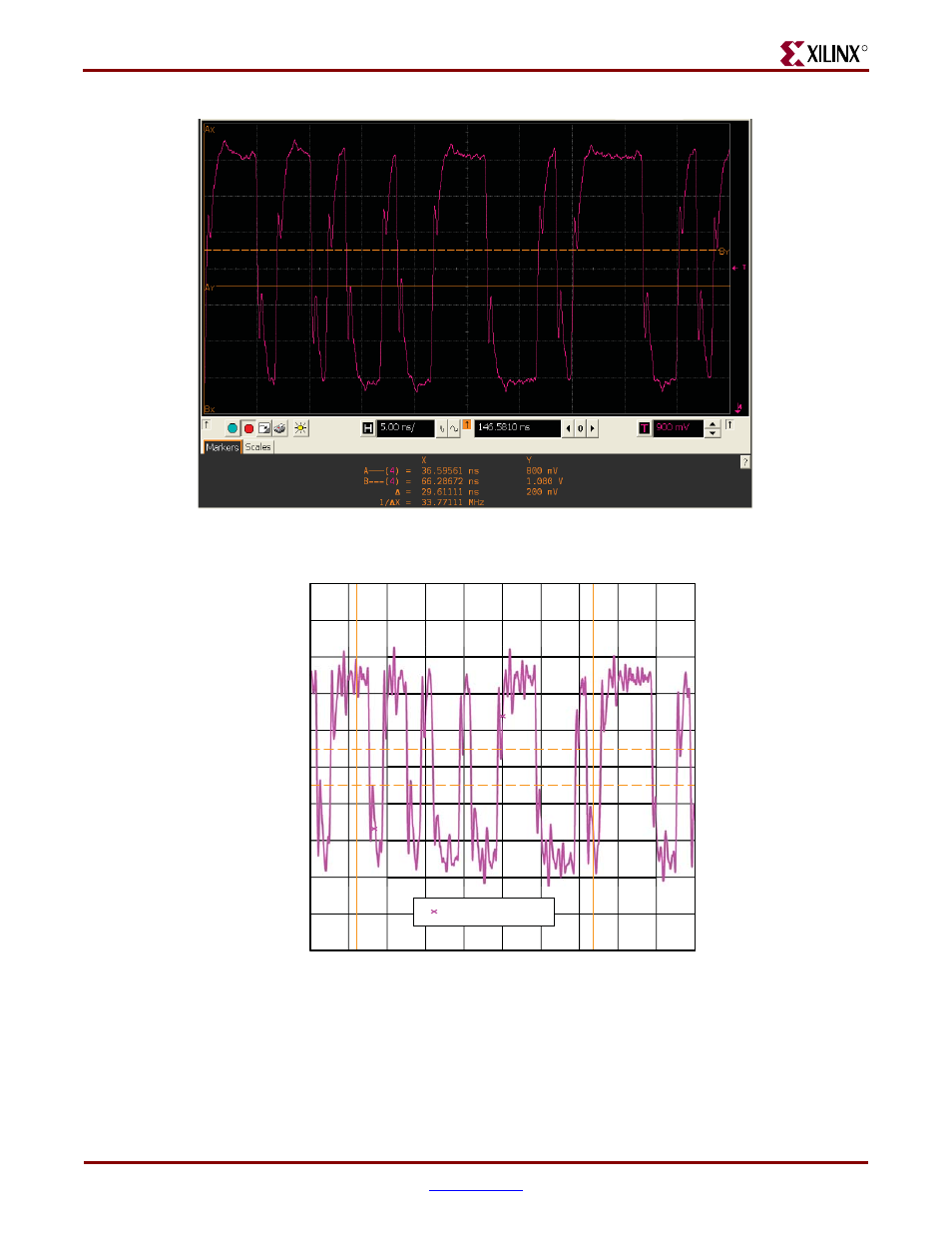

Figure 7-51: QDRII Read HW Measurement - Waveform Scope Shot at Probe Point (FPGA3 Via)
UG199_c7_51_071107
Figure 7-52: QDRII Read Correlation - Waveform Scope Shot at Probe Point (Slow Corner)
20.000 30.000 40.000 50.000 60.000 70.000
-100.0
100.0
300.0
500.0
700.0
900.0
1100.0
1300.0
1500.0
1700.0
1900.0
Time (ns)
Voltage (mV)
UG199_c7_52_071007
Probe 3:C7.1 (at pin)
