283 Chapter 23 Media Bandwidth Management Advanced Setup
23.10 Bandwidth Monitor
To view the Prestige’s bandwidth usage and allotments, click Media Bandwidth
Management, then Monitor. The screen appears as shown.

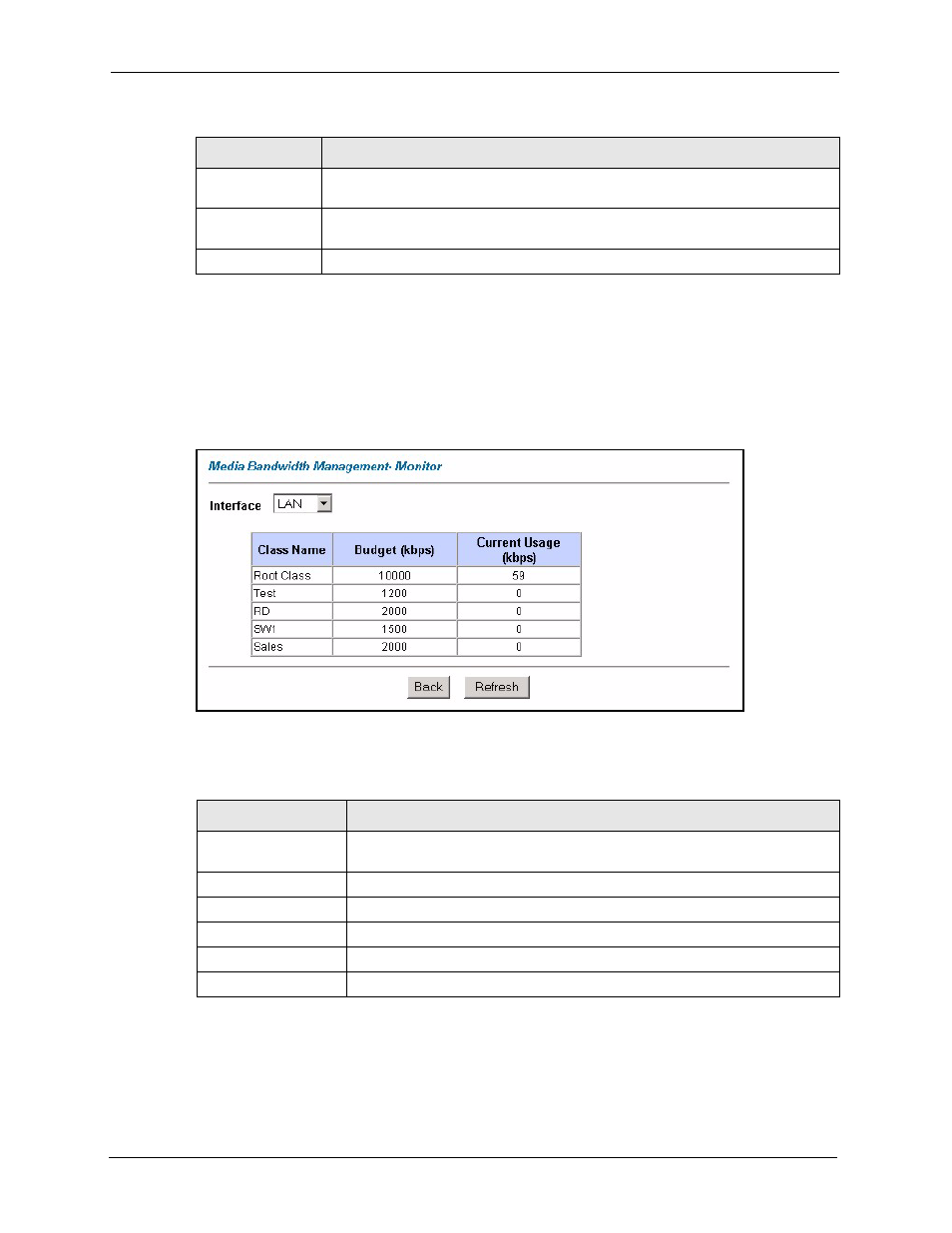

Figure 135 Media Bandwidth Management: Monitor
The following table describes the labels in this screen.
Set Interval Click Set Interval to apply the new update period you entered in the Update
Period field above.
Stop Update Click Stop Update to stop the browser from refreshing bandwidth management
statistics.
Clear Counter Click Clear Counter to clear all of the bandwidth management statistics.
Table 89 Media Bandwidth Management Statistics
LABEL DESCRIPTION
Table 90 Media Bandwidth Management: Monitor
LABEL DESCRIPTION
Interface Select an interface from the drop-down list box to view the bandwidth usage of
its bandwidth classes.
Class Name This field displays the name of the class.
Budget (kbps) This field displays the amount of bandwidth allocated to the class.
Current Usage (kbps) This field displays the amount of bandwidth that each class is using.
Back Click Back to go to the main Media Bandwidth Management screen.
Refresh Click Refresh to update the page.
