Chapter 23 Media Bandwidth Management Advanced Setup 272

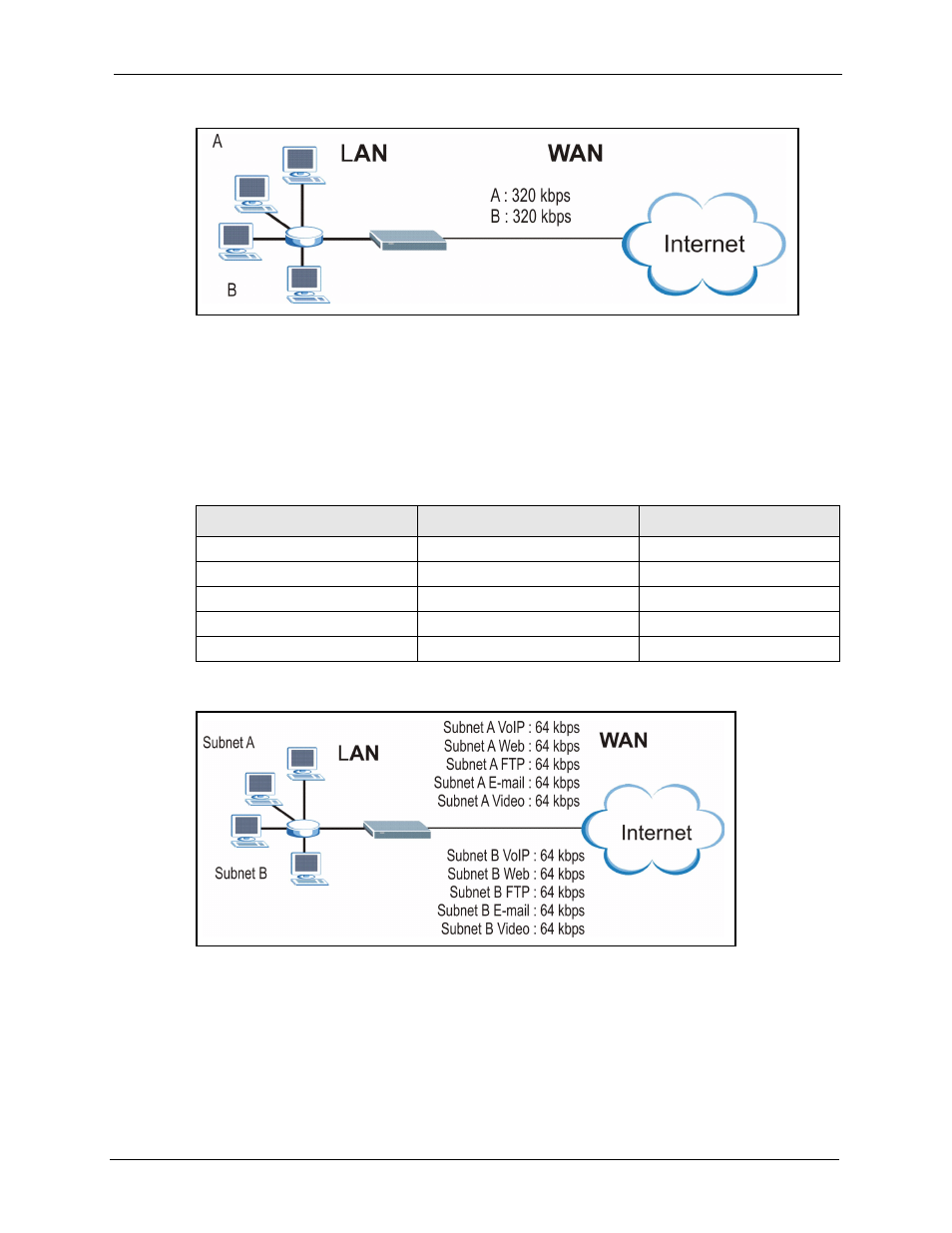

Figure 126 Subnet-based Bandwidth Management Example
23.4.3 Application and Subnet-based Bandwidth Management
Example
The following example uses bandwidth classes based on LAN subnets and applications
(specific applications in each subnet are allotted bandwidth).
Figure 127 Application and Subnet-based Bandwidth Management Example
23.5 Scheduler
The scheduler divides up an interface’s bandwidth among the bandwidth classes. The Prestige
has two types of scheduler: fairness-based and priority-based.
Table 84 Application and Subnet-based Bandwidth Management Example
TRAFFIC TYPE FROM SUBNET A FROM SUBNET B
VoIP 64 kbps 64 kbps
Web 64 kbps 64 kbps
FTP 64 kbps 64 kbps
E-mail 64 kbps 64 kbps
Video 64 kbps 64 kbps
