Prestige 662H/HW Series User’s Guide
Chapter 23 Media Bandwidth Management Advanced Setup 276

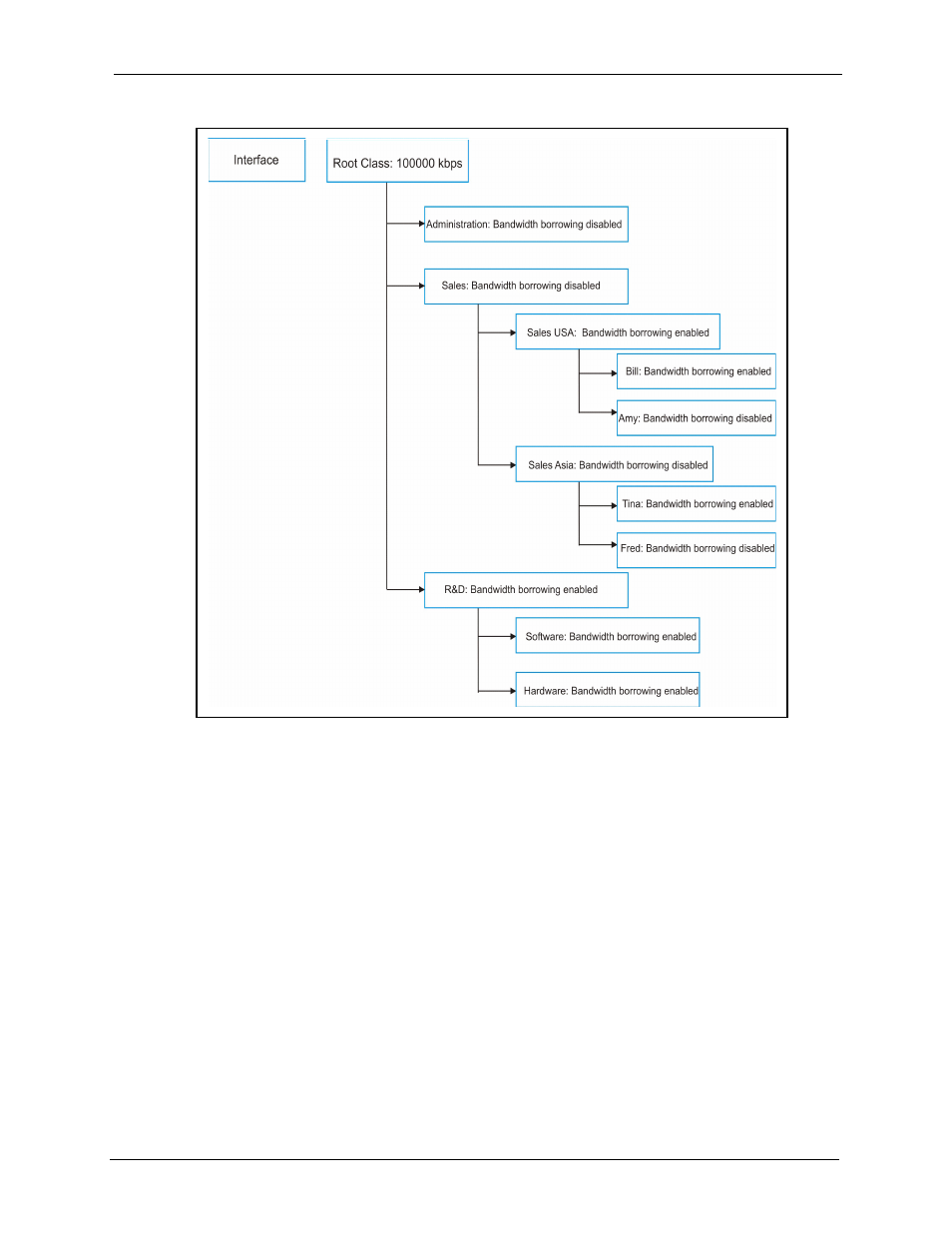

Figure 130 Bandwidth Borrowing Example
• The Bill class can borrow unused bandwidth from the Sales USA class because the Bill
class has bandwidth borrowing enabled.
• The Bill class can also borrow unused bandwidth from the Sales class because the Sales
USA class also has bandwidth borrowing enabled.
• The Bill class cannot borrow unused bandwidth from the Root class because the Sales
class has bandwidth borrowing disabled.
• The Amy class cannot borrow unused bandwidth from the Sales USA class because the
Amy class has bandwidth borrowing disabled.
• The R&D Software and Hardware classes can both borrow unused bandwidth from the
R&D class because the R&D Software and Hardware classes both have bandwidth
borrowing enabled.
• The R&D Software and Hardware classes can also borrow unused bandwidth from the
Root class because the R&D class also has bandwidth borrowing enabled.
