19.17 Telecommuter VPN/IPSec Examples
The following examples show how multiple telecommuters can make VPN connections to a
single Prestige at headquarters. The telecommuters use IPSec routers with dynamic WAN IP
addresses. The Prestige at headquarters has a static public IP address.
19.17.1 Telecommuters Sharing One VPN Rule Example
See the following figure and table for an example configuration that allows multiple
telecommuters (A, B and C in the figure) to use one VPN rule to simultaneously access a
Prestige at headquarters (HQ in the figure). The telecommuters do not have domain names
mapped to the WAN IP addresses of their IPSec routers. The telecommuters must all use the
same IPSec parameters but the local IP addresses (or ranges of addresses) should not overlap.

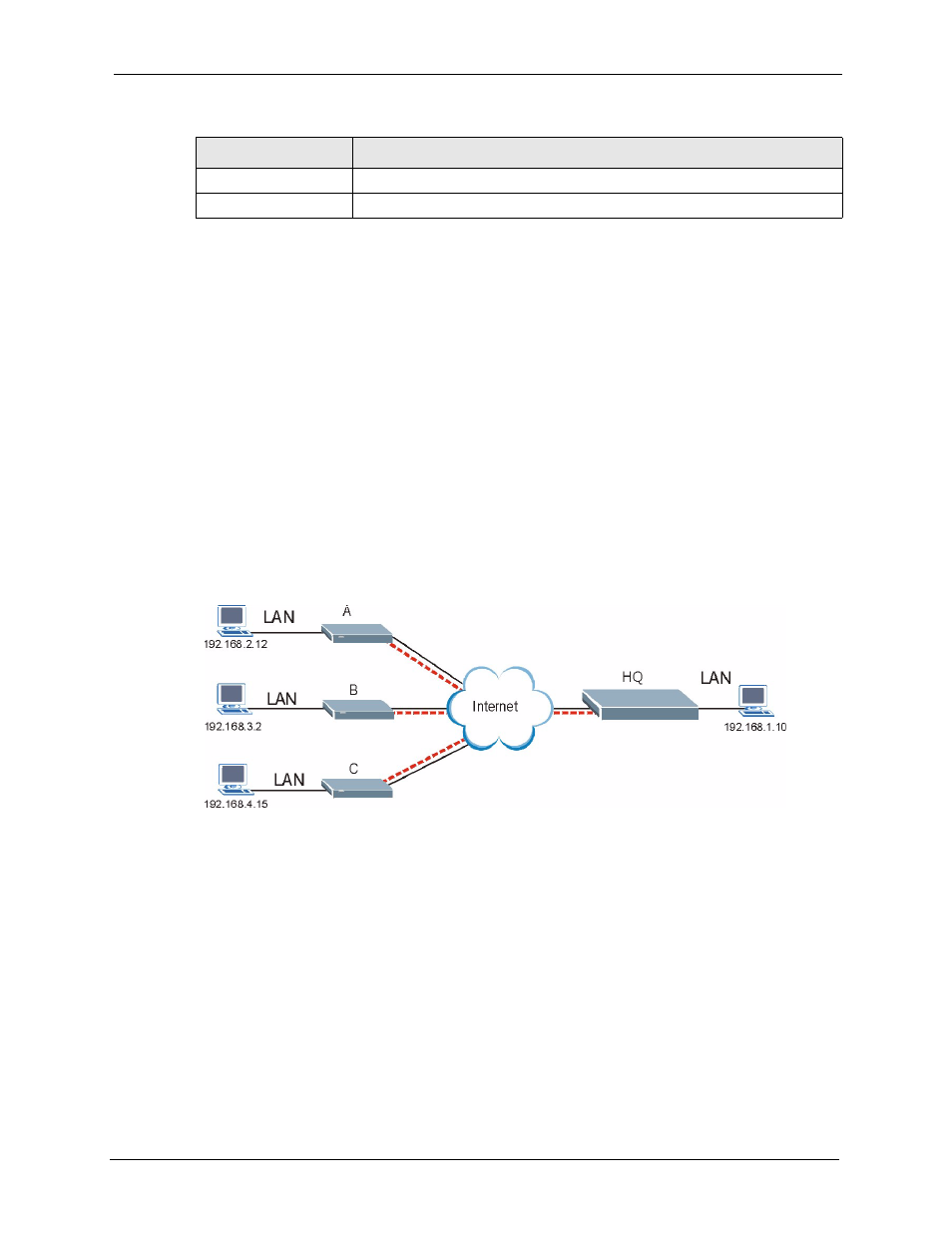

Figure 103 Telecommuters Sharing One VPN Rule Example
Apply Click Apply to save your changes back to the Prestige.
Cancel Click Cancel to begin configuring this screen afresh.
Table 76 VPN: Global Setting (continued)
LABEL DESCRIPTION
