Parker Hannifin

62 Aries User Guide

Motor Feedback Connector—Encoder

Inputs for the resolver feedback, motor thermal switch, and hall effects are
located on the 15-pin Motor Feedback connector.

Figure 29

MOTOR FEEDBACK

connector, female drive connector pinout

Important —

Encoder inputs use a DS26LV32 differential line receiver.

Parker Hannifin recommends 26LS31 (or compatible) differential line driven
encoders.
Single ended encoders are not compatible.

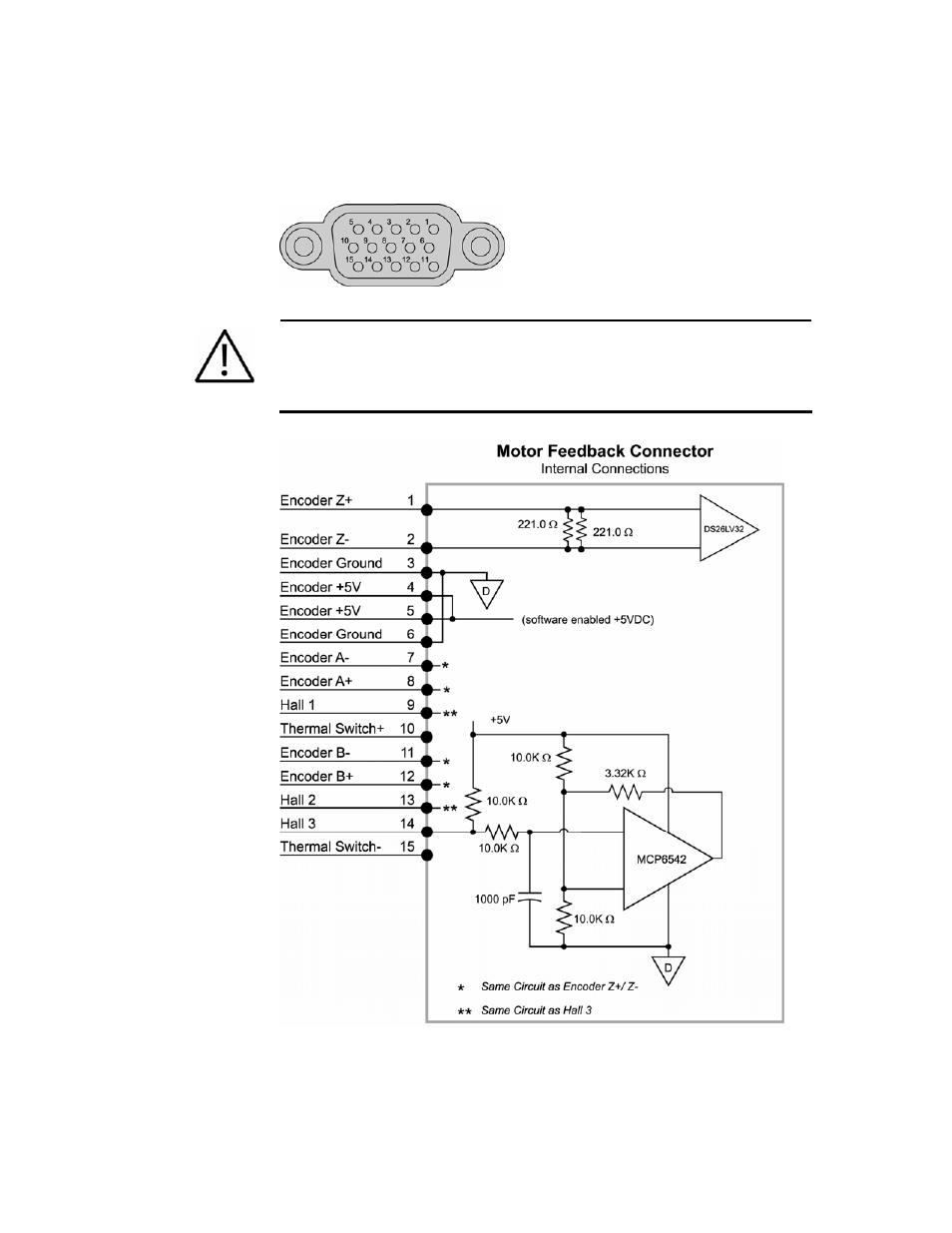

Figure 30

MOTOR FEEDBACK

connector, internal circuit diagram
