Overveiw of the Product 1
1.3 Product Configuration

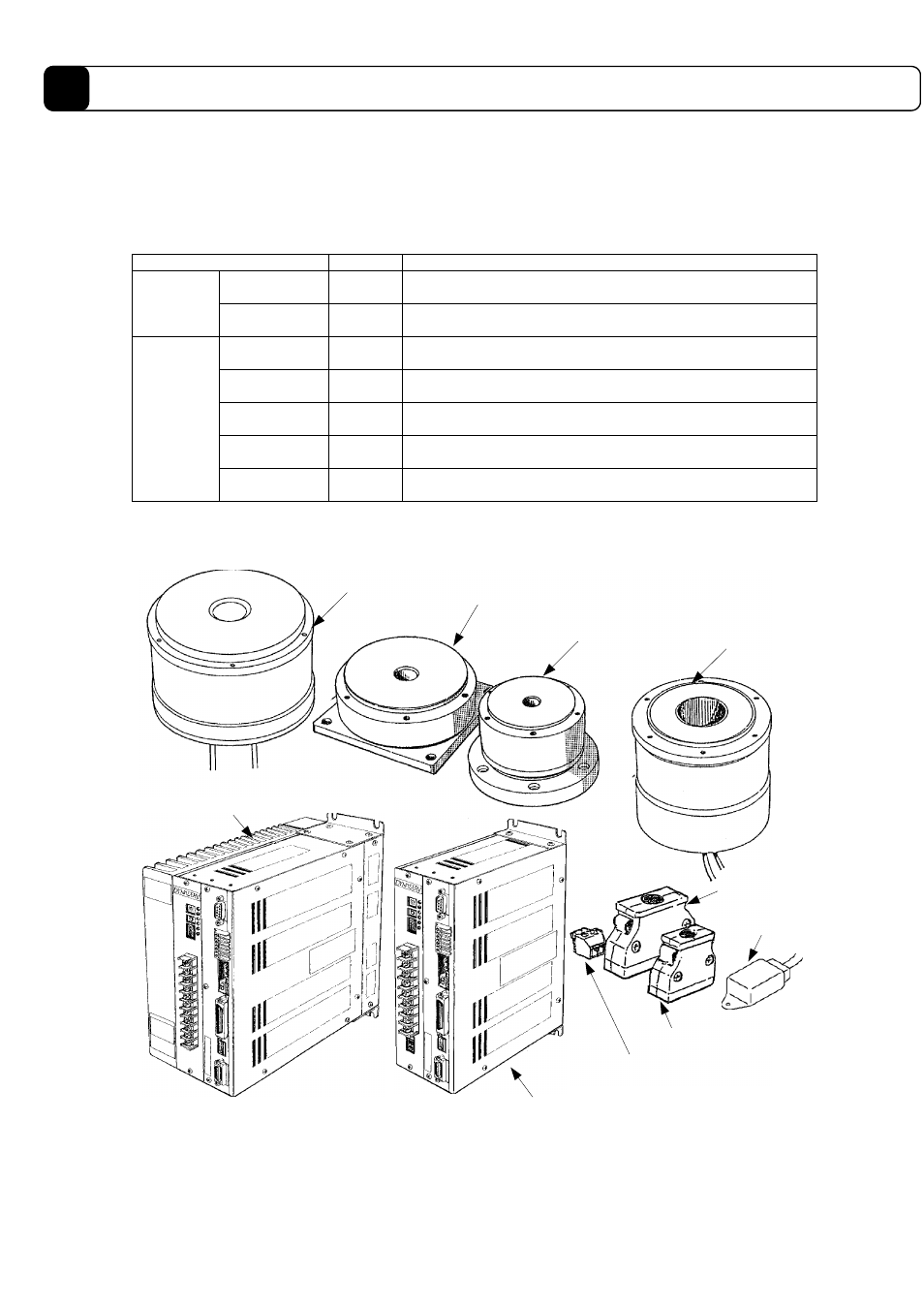

The following shows the configuration of this product. Upon unpacking, please check the model name and code
of the product’s main unit, whether or not all the standard accessories are included, and also the quantity
supplied.
Part name Number Notes
Motor part 1
The external appearance varies depending on the model
name/code.
Main body
Driver part 1
The external appearance varies depending on the model
name/code.
Connector for
driver CN2
1
Made by Honda Tsushin Kogyo (connector) PCR-S20FS
(cover) PCR-LS20LA1
Connector for
driver CN4
1
Made by Honda Tsushin Kogyo (connector) PCR-S50FS
(cover) PCR-LS50LA
Connector for
driver CN5*
1 Made by Phoenix Contact MC1, 5/6-ST-3, 81
Terminal for
driver CNA**
1 Made by Phoenix Contact MC1, 5/2-ST-5, 08
Standard
accessory
Regenerative
resistor **
1 80W 60Ω (for 100V) or 80W 200Ω (for 200V)
* Supplied for drivers whose interface type is the I/O contact type.
** Supplied only for 500W level drivers with regenerative terminals
Regenerative
terminal
Driver part (2kW level)
With regenerative unit
Motor part/DM series
Motor part/DM1004B
Motor part/DM1004C Motor part/
DR series
Driver part
(500W level)
Connector for CN4
Connecto for CN2
Connector for CNA
Note: The exact shape varies depending on the model you ordered. Refer to the figure showing the outer
dimensions for more details.
