REMOTE ACCESS: DVR Netviewer

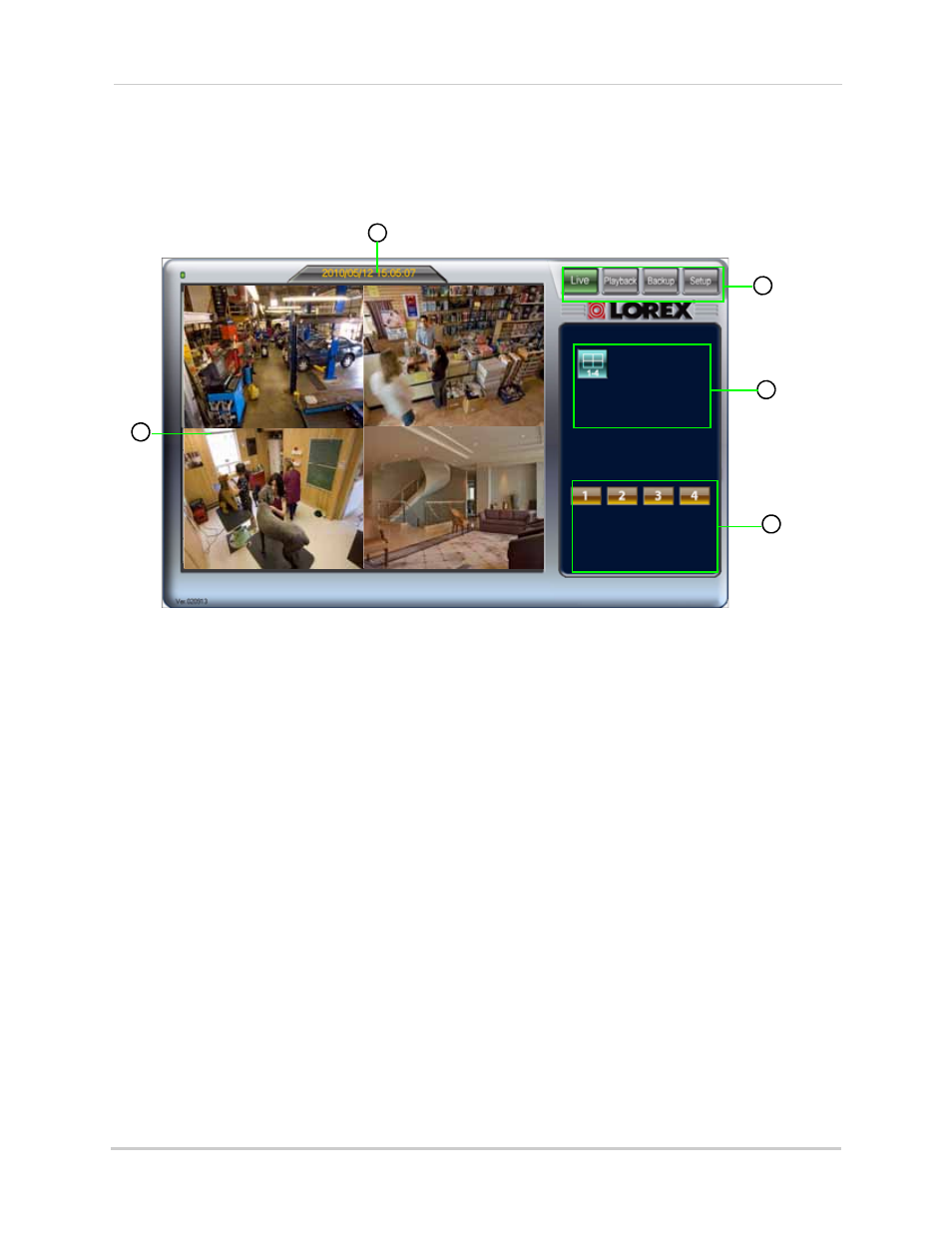

DVR Netviewer Main Screen

4-channel

Upon login, the DVR Netviewer main screen appears in your browser. By default, DVR Netviewer
opens in Live Viewing mode.

1. Display screen: Displays channels in single channel full-screen, or all channels in quad

split-screen.

2. Date/Time: Present date and time on the networked system.

3. Modes:

•

LIVE

: Click to view live, streaming video; view single channels in full-screen, or view all channels

in quad split-screen.

•

PLAYBACK

: Click to view recorded video from the system. Select channel and enter date and time;

playback controls appear when Playback mode selected.

•

BACKUP

: Click to save recorded video data to your PC.

•

SETUP

: Click to open the Setup menu. (Not available on Safari (Mac) ).

4. Views: Click to view in Quad mode (4-channel).

5. Channels: Click to view channels in full-screen.

NOTE: PTZ function is not available in Netviewer.

Figure 19.0 DVR Netviewer main screen
