Getting Started

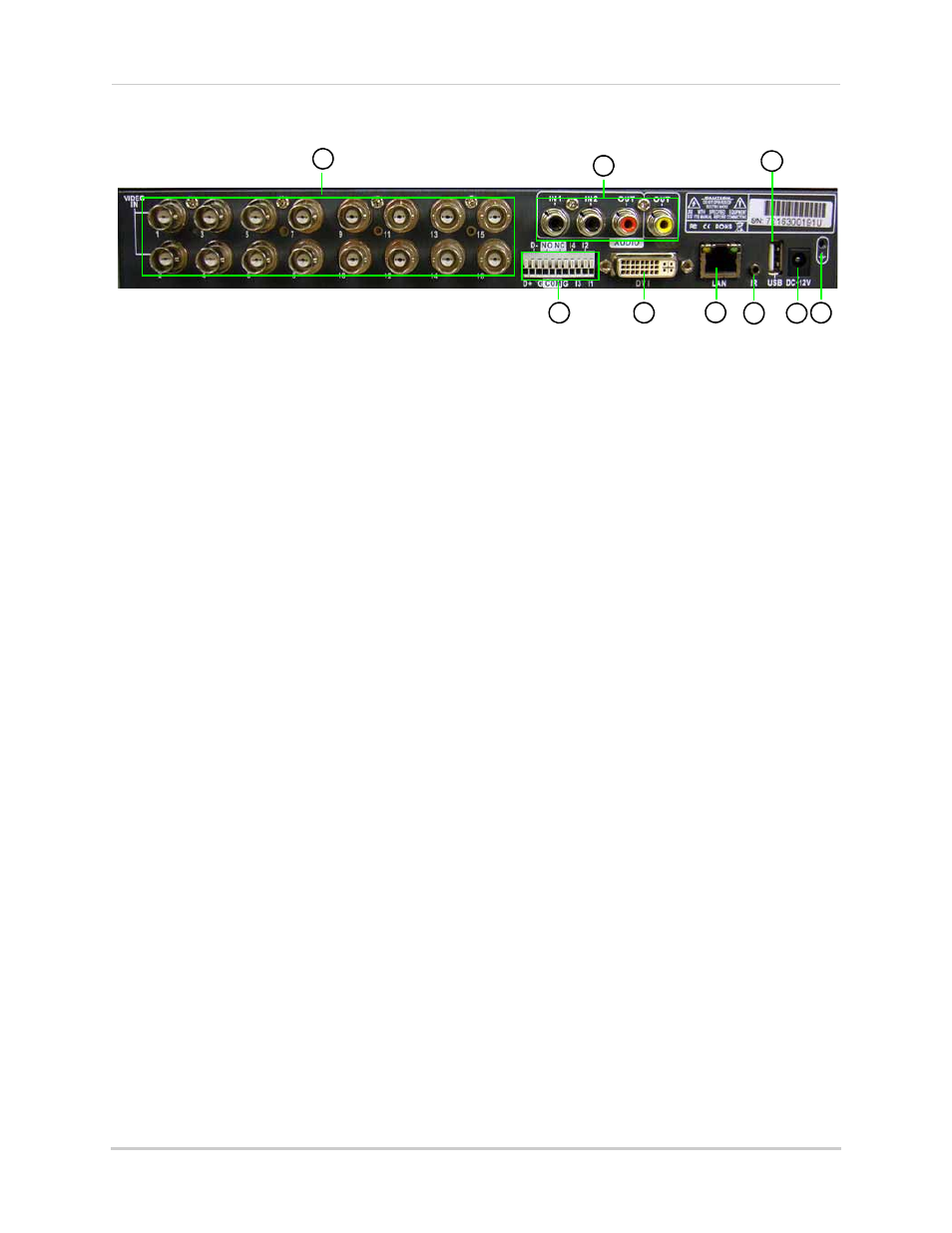

16-channel

1. Video In: BNC input ports for 16 BNC cameras.
2. Audio In: Input ports for audio enabled cameras (not included).

Audio Out: Output for two audio channels.

3. Alarm Block: Input/output port for alarm / relay devices (i.e. PTZ cameras and sensors, not

included).

4. DVI: Port to connect a DVI monitor (not included).
5. LAN: Networking port for a 10/100 Base-T RJ-45 network cable (included).
6. IR: Port for the Flex-IR Extender.
7. USB Port: Port for a USB mouse.
8. DC 12V: Port for 12V DC, 3A power adapter (included).
9. Ground Port.
