Getting Started

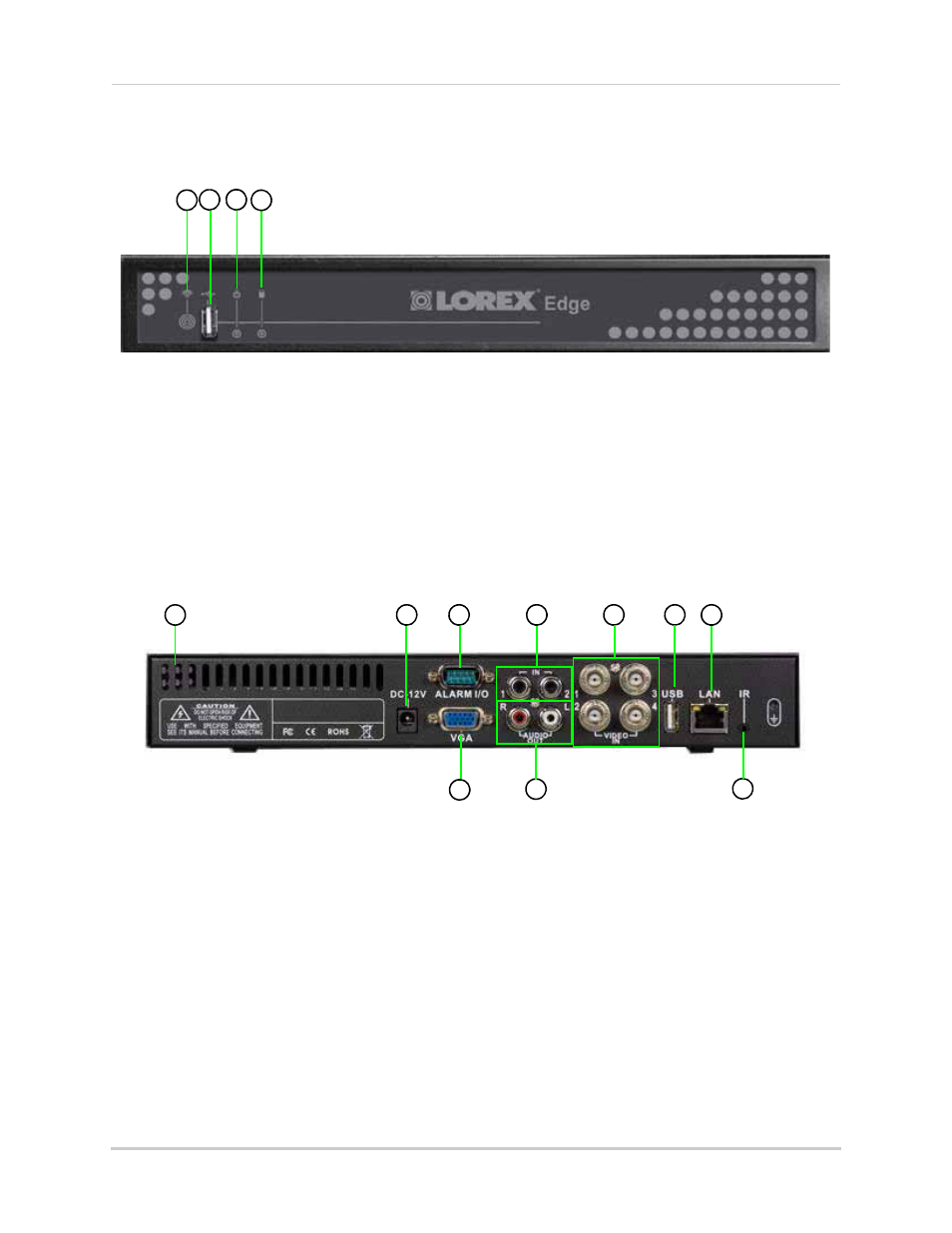

Lorex EDGE: Front Panel
All models
1. IR Receiver: Internal IR receiver for the remote control.
2. USB port: Connect a USB flash drive for data backup and firmware updates (download from
website).
3. Power Indicator: LED indicator for system power. When system is powered on, LED is lit red.
4. HDD Indicator: LED indicator for internal hard drive. When in continuous recording mode,
LED pulses red.
Lorex EDGE: Rear Panel
4-channel models
1. Exhaust slots: Slots to let heat escape from the internal hard drive. Do not block . Allow for
proper ventilation.
2. DC 12V: Port for 12V DC 2.5 A power adapter (included).
3. Alarm I/O: Input/output port for alarm / relay (D-sub 9 connector required—not included).
4. Audio In: Input ports for audio enabled cameras.
5. Video In: BNC input ports for 4 BNC cameras.
6. USB Port: Port for a USB mouse.
7. LAN: Networking port for a 10/100 Base-T RJ-45 network cable (included).
8. VGA: Port to connect a VGA monitor (not included)
9. Audio Out: Output for two audio channels.
10. IR: Port for the Flex-IR Extender.
11. Ground Port
1 2 3 4
1 2 3 6 7
8 9
4 5
10
