Getting Started

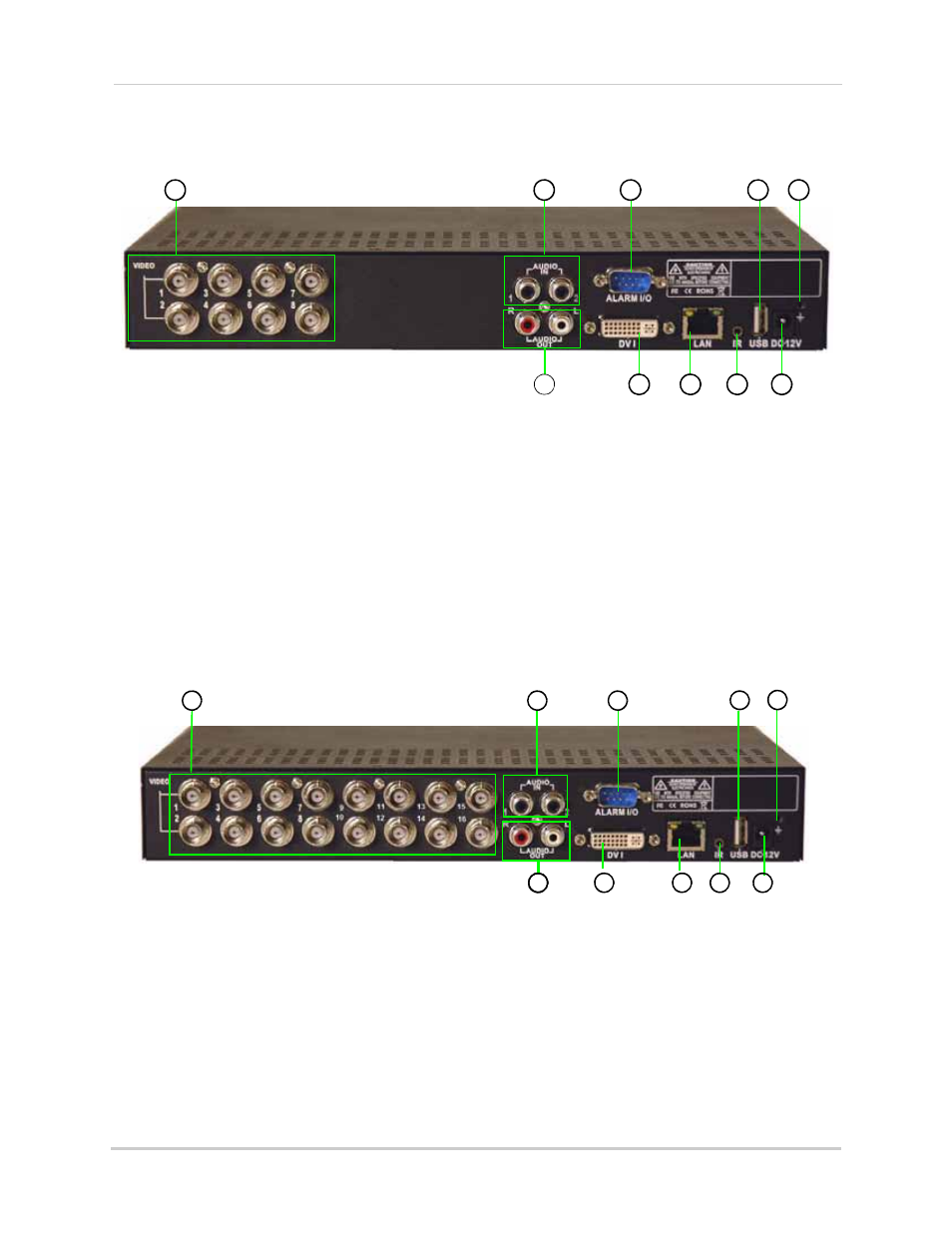

Lorex EDGE: Rear Panel

8-channel

1. Video In: BNC input ports for 8 BNC cameras.
2. Audio In: Input ports for audio enabled cameras.
3. Alarm I/O: Input/output port for alarm / relay (D-sub 9 connector required—not included).
4. Audio Out: Output for two audio channels.
5. DVI: Port to connect a DVI monitor (not included).
6. LAN: Networking port for a 10/100 Base-T RJ-45 network cable (included).
7. IR: Port for the Flex-IR Extender.
8. USB Port: Port for a USB mouse.
9. DC 12V: Port for 12V DC 3 A power adapter (included).
10. Ground Port.

16-channel

1. Video In: BNC input ports for 16 BNC cameras.
2. Audio In: Input ports for audio enabled cameras.
3. Alarm I/O: Input/output port for alarm / relay (D-sub 9 connector required—not included).
4. Audio Out: Output for two audio channels.
5. DVI: Port to connect a DVI monitor (not included).
6. LAN: Networking port for a 10/100 Base-T RJ-45 network cable (included).
7. IR: Port for the Flex-IR Extender.
8. USB Port: Port for a USB mouse.
9. DC 12V: Port for 12V DC 3 A power adapter (included).
10. Ground Port.
