MC9000-G Product Reference Guide for Embedded Windows® CE .NET

2-10

53-Key Keypad

There are two physical configurations of the 53-key keypad, however both of the keypads are
functionally identical. The 53-key keypads contain a Power button, application keys, scroll keys and
function keys. The keypad is color-coded to indicate the alternate function key (blue) values. Note that
keypad functions can be changed by an application so the mobile computer’s keypad may not function
exactly as described. See

Table 2-3 on page 2-11

for key and button descriptions and

Table 2-7 on

page 2-22

for the keypad’s special functions.

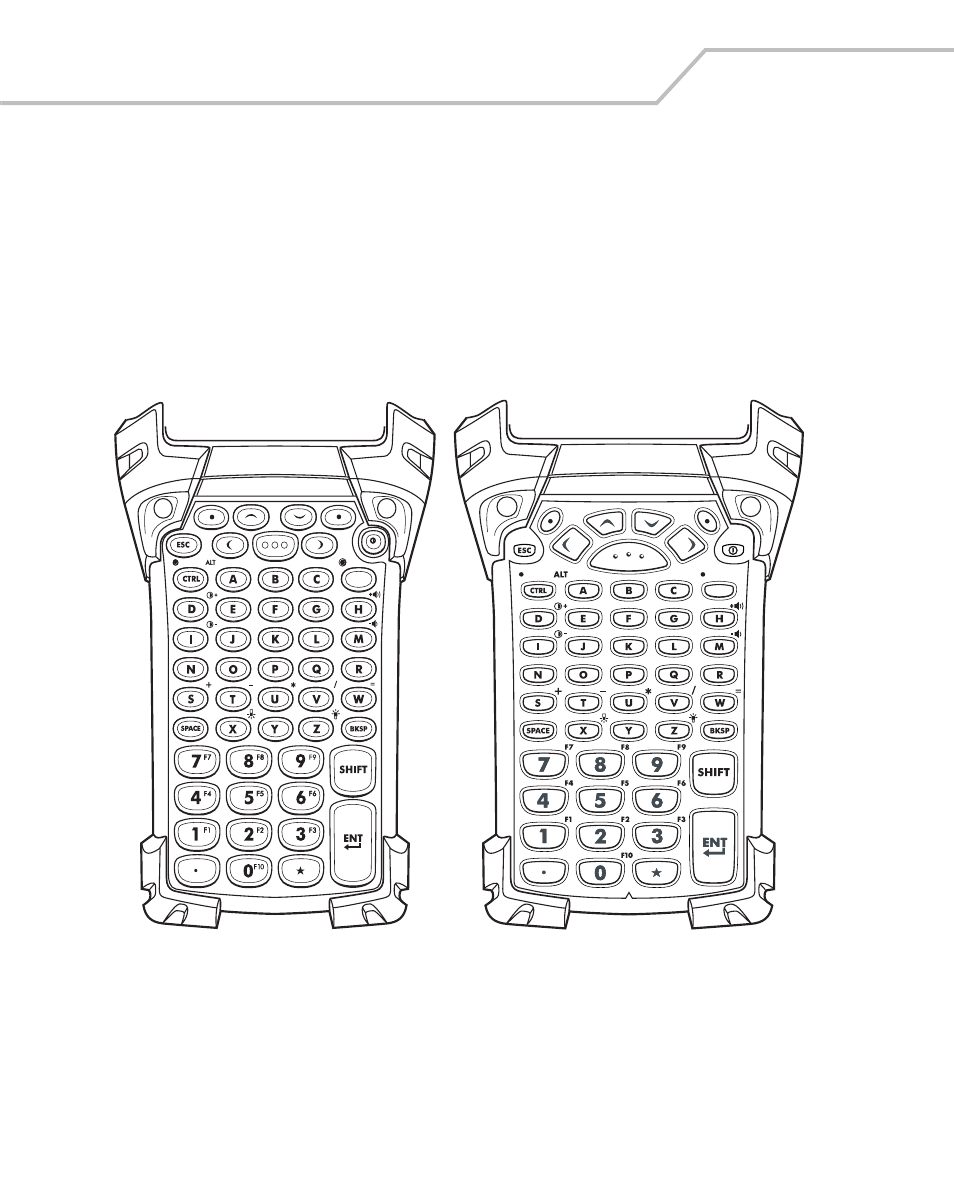

Figure 2-3. 53-Key Keypads
