Technical Specifications A-11
Accessory CAM and MSR Pin-Outs

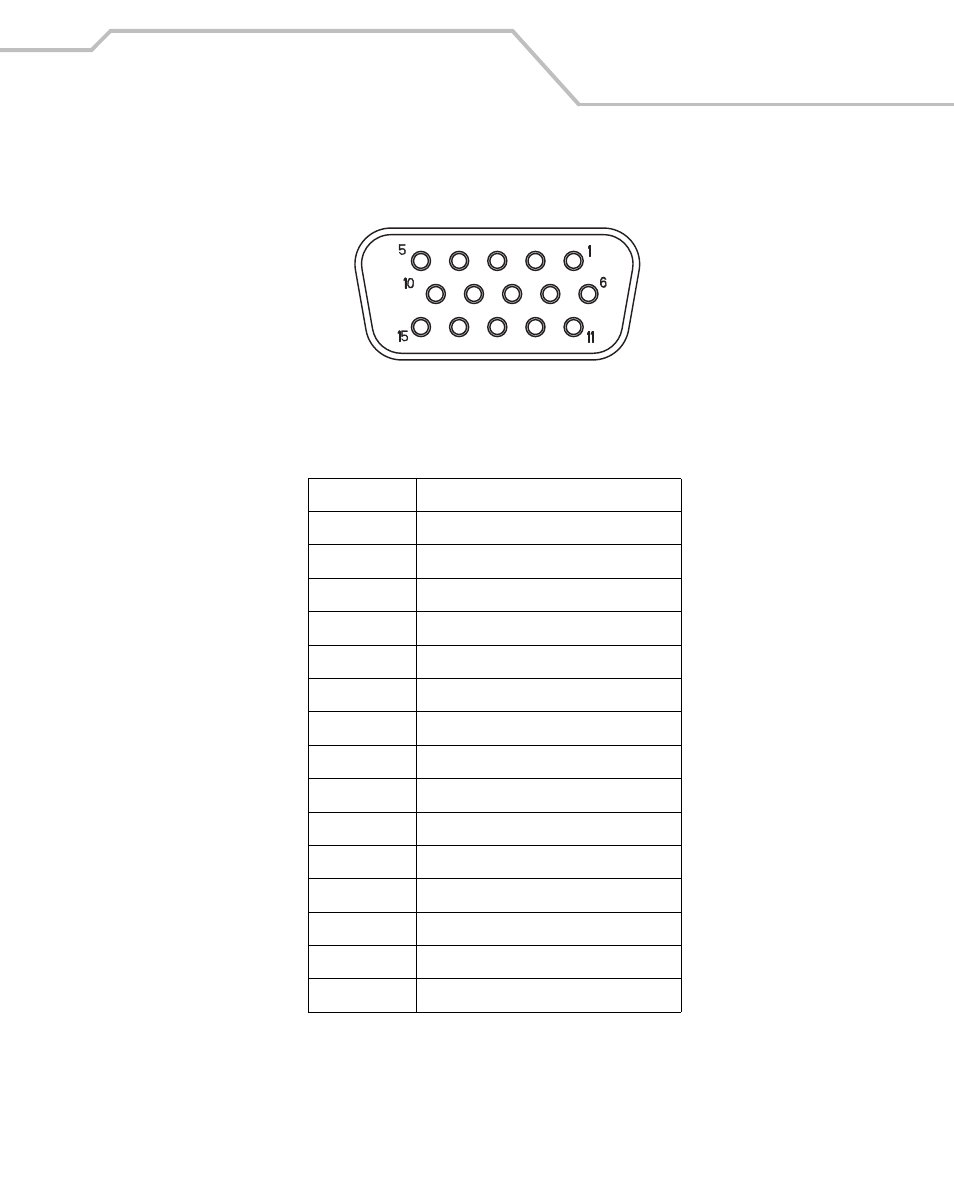

Figure A-2. CAM and MSR Serial Connector
Table A-4. CAM and MSR Serial Connector Pinouts
Pin Signal
1 USB_5V_DET
2 USB_D_MINUS
3 USB_D_PLUS
4 GND
5 GND
6 PWR_EXT_OUT
7 CRADLE_DET*
8 DSR
9 DCD
10 TXD
11 CTS
12 DTR
13 RI
14 RTS
15 RXD
