MC9000-G Product Reference Guide for Embedded Windows® CE .NET 7-24
Cable Adapter Module
This section describes how to set up and use the CAM. Both the CAM and the MSR attach to the
mobile computer the same way, see
Figure 7-12 on page 7-19 . They also share the same power
connection, see Figure 7-13 on page 7-20 and the same serial/USB connection, see Figure 7-14 on
page 7-21 . The CAM and the MSR allow connection and charging of the MC9000-G using the
following cables:
• Auto Charge Cable
• DEX Cable
• Serial Cable
• Printer Cable
• USB Cable.

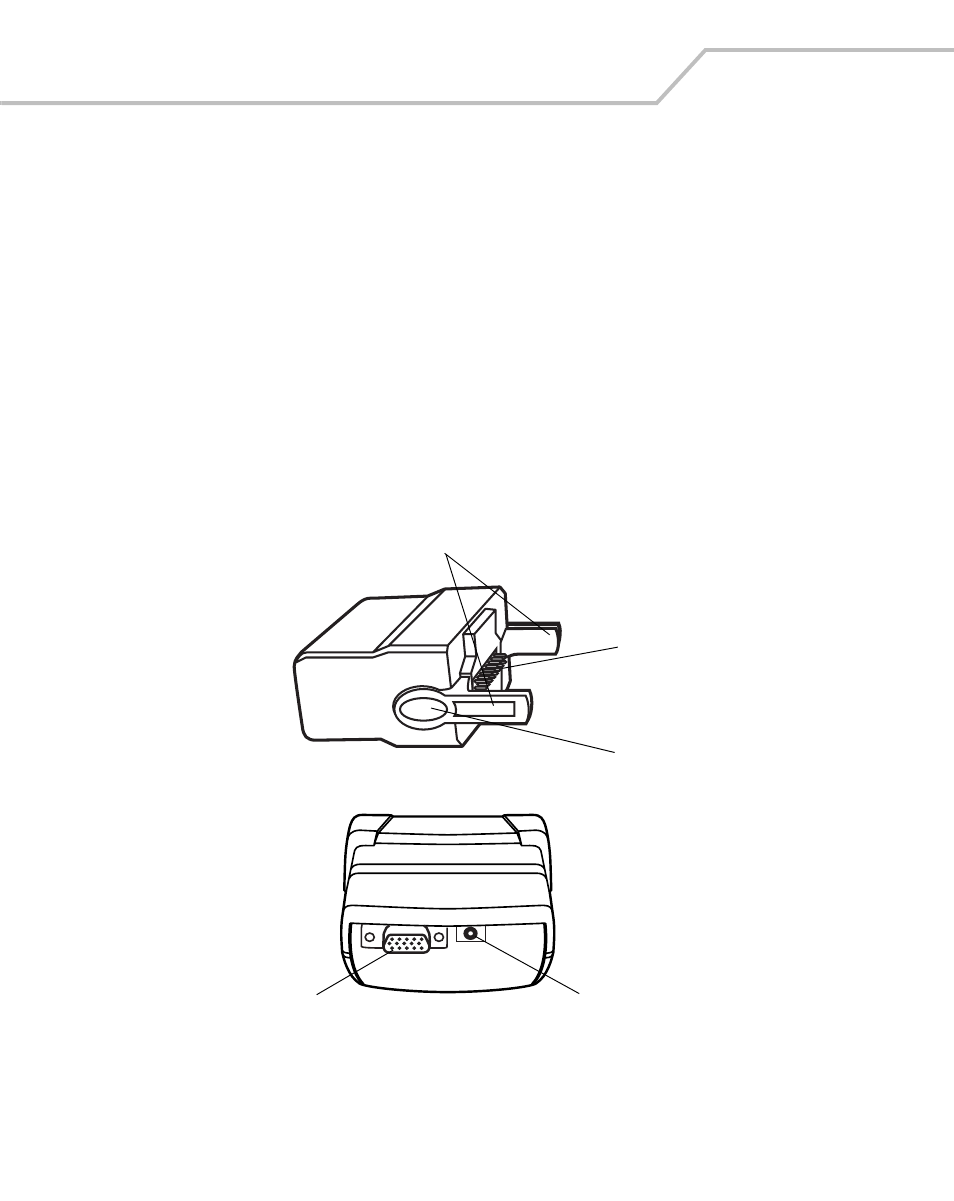

Figure 7-16. CAM
Latches
Power Port Communications Port
Pogo Pin Pass Through
Connector
Latch Grip
