MC9000-G Product Reference Guide for Embedded Windows® CE .NET

2-4

28-Key Keypad

The 28-key keypad contains a Power button, application keys, scroll keys and a function key. The
keypad is color-coded to indicate the alternate function key (blue) values and the alternate ALPHA key
(orange) values. Note that keypad functions can be changed by an application so the mobile
computer’s keypad may not function exactly as described, see

Table 2-1 on page 2-5

for key and

button descriptions and

Table 2-7 on page 2-22

for the keypad’s special functions.

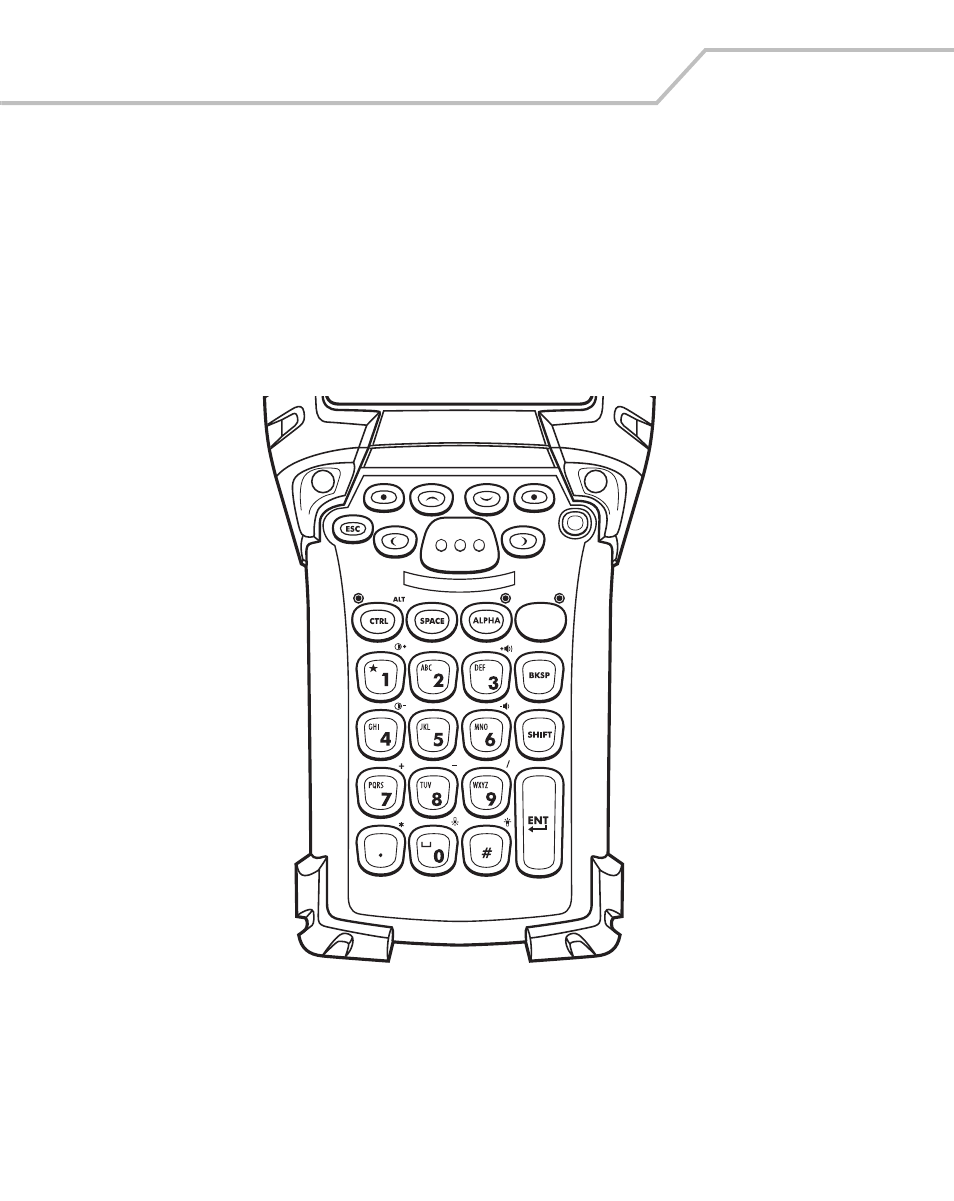

Figure 2-1. 28-Key Keypad
