Chapter 3—Operation
3-14 Hughes-JVC Technology Corporation
MAIN
CHANNELS CH 3 (SVGA2)
# Name VIC Sources
1 VGA 2.1 LDNT
2 RGB 1.1 LD
3 SVGA 2.1 VGA
SVGA1
SVGA2
4 MAC 2.2 MAC33
MAC45
5 HD-LD 2.3 HD
6 CABLE 2.4 GRA

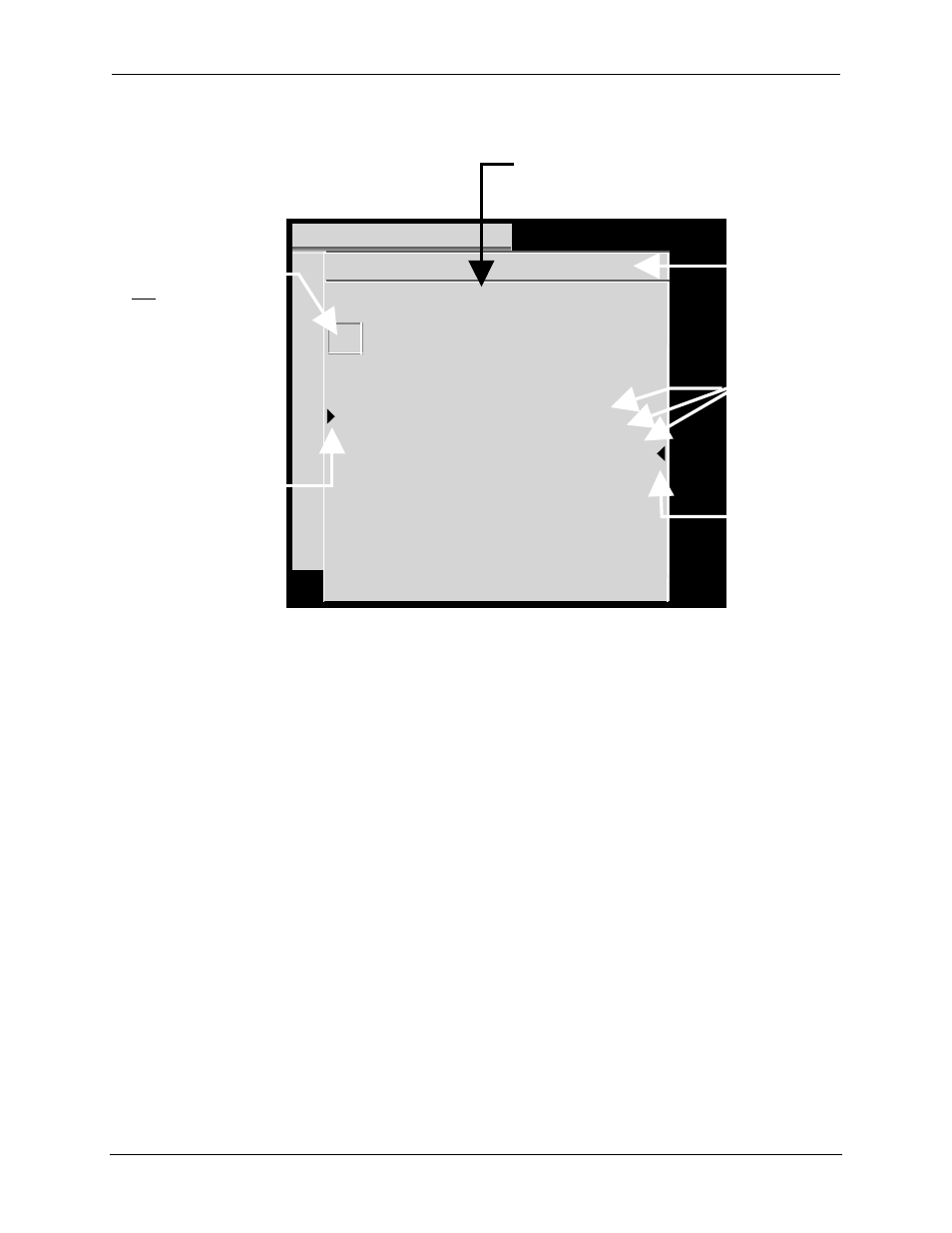

Figure 3.0-4 Channel List with Active Channel and Source
3.9. Attaching a Source
A source is defined as an input signal with a specific set of parameters such as
horizontal/vertical scan rates, interlaced or noninterlaced scanning, and sync
type/polarity. An incoming source can be attached to a source file that was
previously set up for a different source. The attached source is using the setup
data from the original source file.
NOTE: Setup procedures for new sources are covered beginning with
Section 4.1. on page 4-2. When setting up a source file for a new source,
the operator:
1. Connects the source to the side panel input jacks;
2. Selects the channel to receive that source;
3. Names the channel to show the source type;
4. Selects the VIC slot and/or VIC port to handle that source (if the projector
uses an optional or a multi-port VIC);
5. Follows the adjustment procedures in Chapter 4 on page 4-37
to set up a source file to handle that specific source.
Once a source has been set up, it can be “attached” to another channel.
To “attach a source” means that an original source file and its geometry and
convergence parameters are being used by another source input signal.
Pointer shows active
source (SVGA2) for CH 3.
Pointer is a tilde (~) for
an approximate
matched source.
Indicates active channel
(CH 3) and active source
(SVGA2).
Highlighted channel
not selected yet.
Move the highlight
with the arrow keys.
Pointer shows the active
(on screen) channel,
provided it is on the screen list.
Pointer moves to another
channel after the operator
selects a new channel
and presses E NTER
This column shows the Video Input Card
being used for the channel and source.
The first number is the VIC slot,
the second number is the VIC port,
and the third number is the switcher port, if any.
List of set-up sources
on Channel 3 (CH 3).
