14. OPTIONS AND AUXILIARY EQUIPMENT

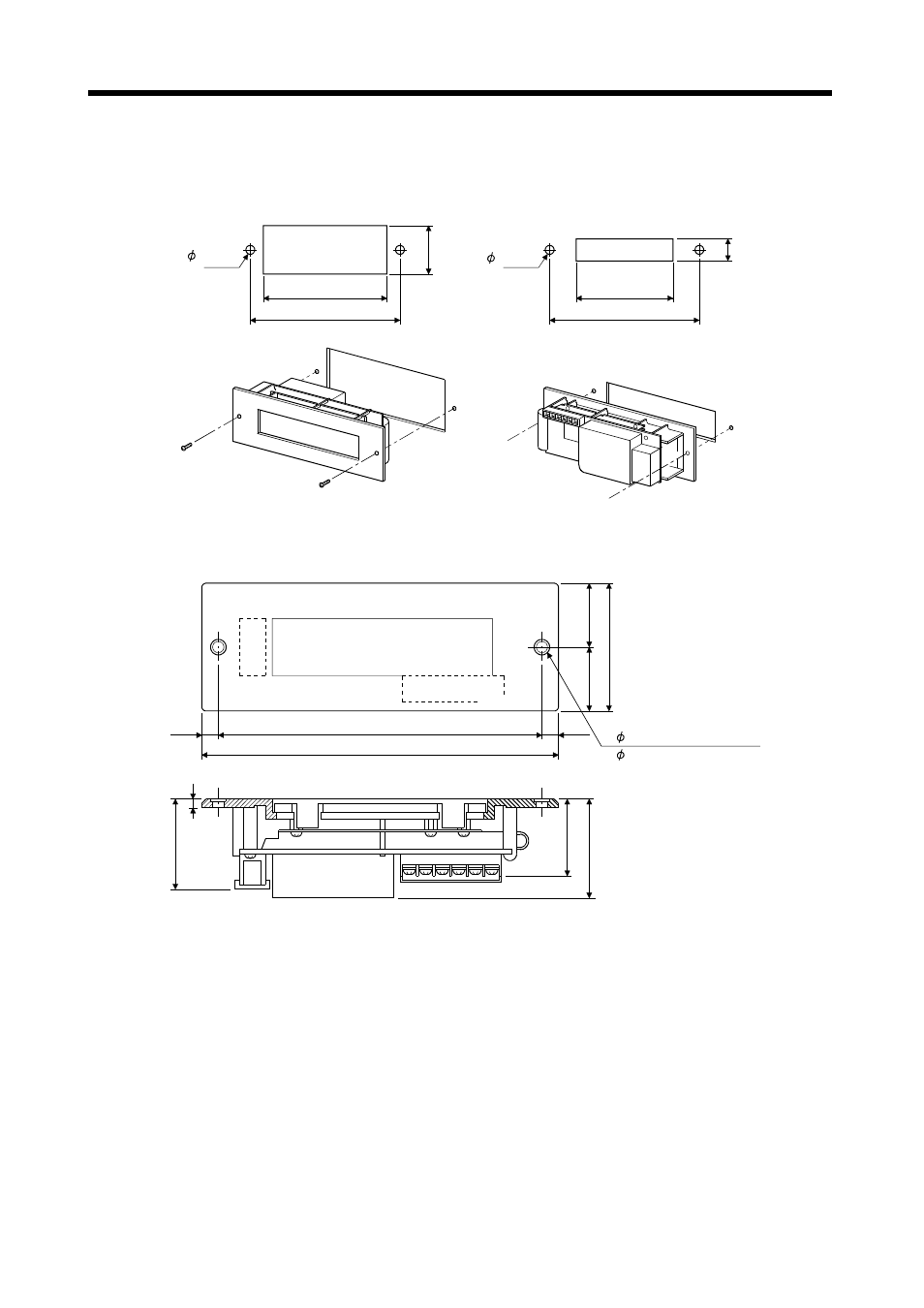

(4) Mounting
Front mounting
2- 5 (0.20)
Square hole
141(5.55)
150(5.91)
53
(2
.09)
[Unit: mm (in)]
Inside mounting
2- 5 (0.20)
Square hole
95(3.74)
150(5.91)
20
(0.
79
)
(5) Outline dimension drawing
7.5
MITSUBISHI
7.5 150(5.91)
165(6.50)
MR-DP60
TB1
TB2
29
(1
.14)
29(1.
14)
58(2.
28)
4
43(1.
69)
38
(1
.50)
48(1.
89)
[Unit: mm (in)]
2- 4.5 (0.18) mounting hole
2- 6.5 (0.26), depth 1 (0.04)
(0.30) (0.30)
(0.16
)
