7. DISPLAY AND OPERATION

7.5 Point table mode

You can set the target position, servo motor speed, acceleration time, deceleration time, dwell and auxiliary
function.

7.5.1 Point table transition

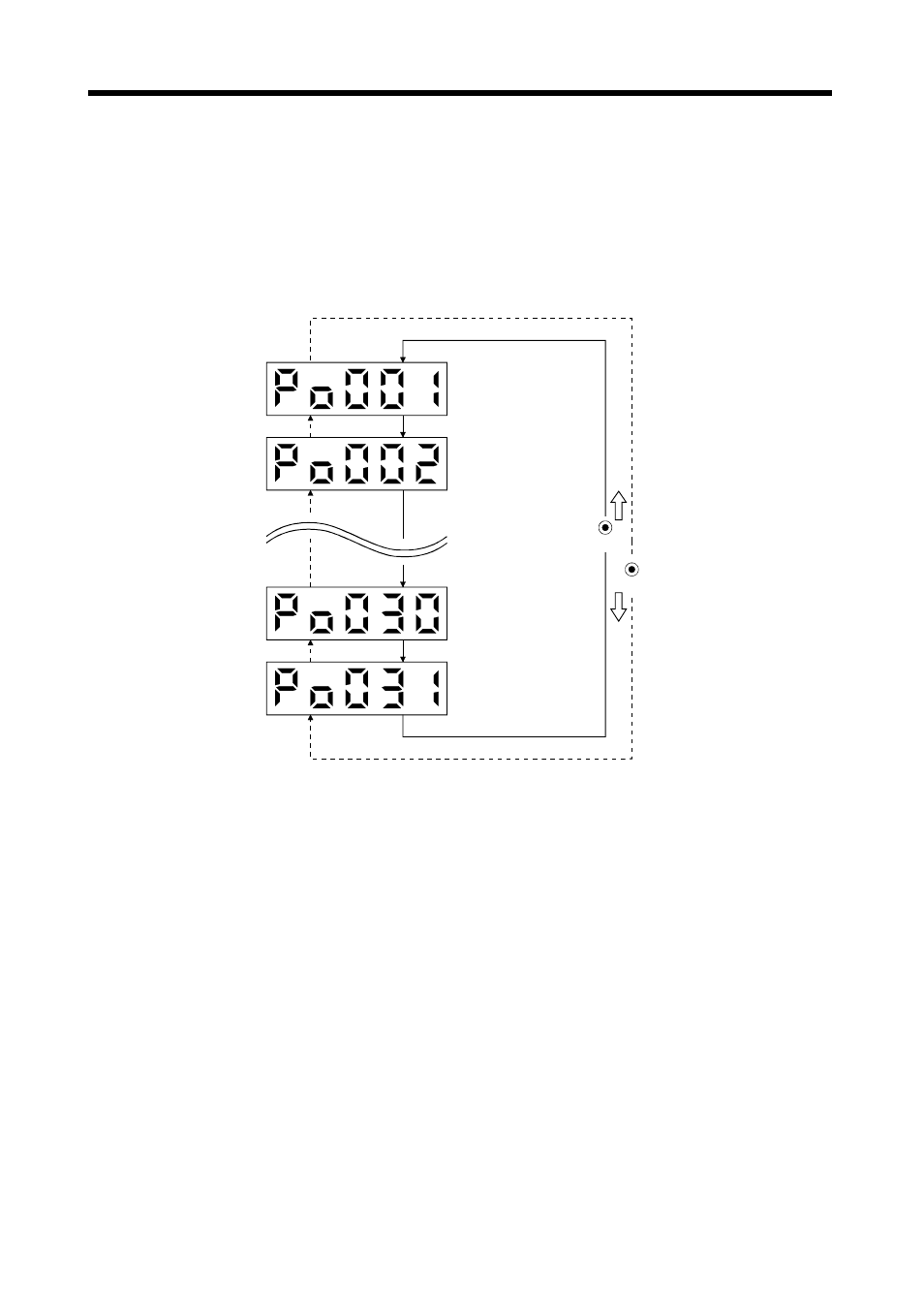

After choosing the point table mode with the "MODE" button, pressing the "UP" or "DOWN" button
changes the display as shown below.

Point table No. 1

Point table No. 2

Point table No. 30

Point table No. 31

DOWN
