6 - 2
6. MR Configurator (SERVO CONFIGURATION SOFTWARE)

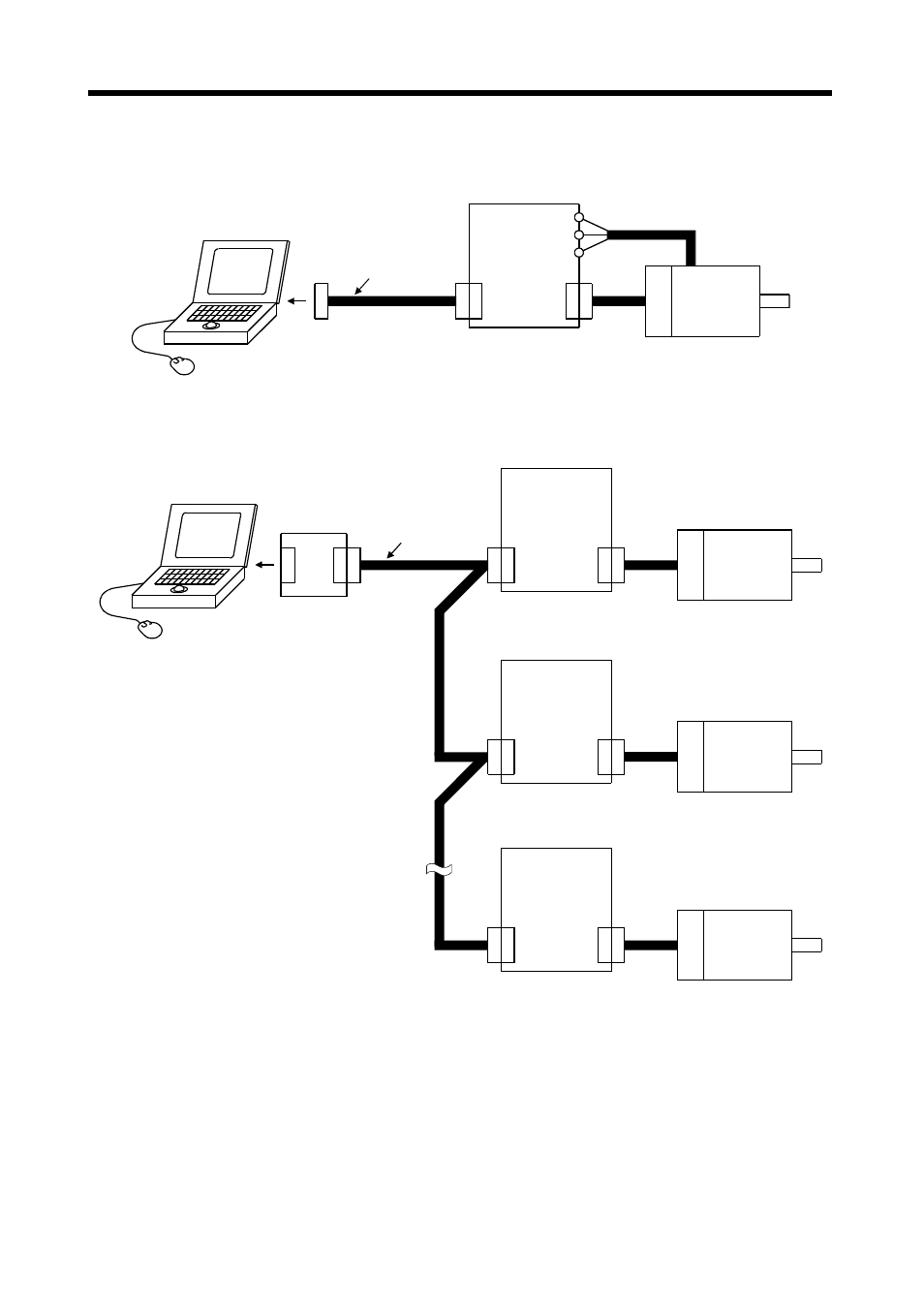

(2) Configuration diagram
(a) For use of RS-232C
Personal computer
Communication cable
Servo amplifier
Servo motor
CN3
CN2
To RS-232C connector
U
V
W
(b) For use of RS-422
Up to 32 axes may be multidropped.
Personal computer
Communication cable
To RS-232C
connector
Servo amplifier
Servo motor
CN3
CN2
Servo amplifier
Servo motor
CN3
CN2
Servo amplifier
Servo motor
CN3
CN2
(Axis 32)
(Axis 2)
(Axis 1)
RS-232C/RS-422
(Note 1)
converter
Note. Refer to Section 15.1.1 for cable connections.
