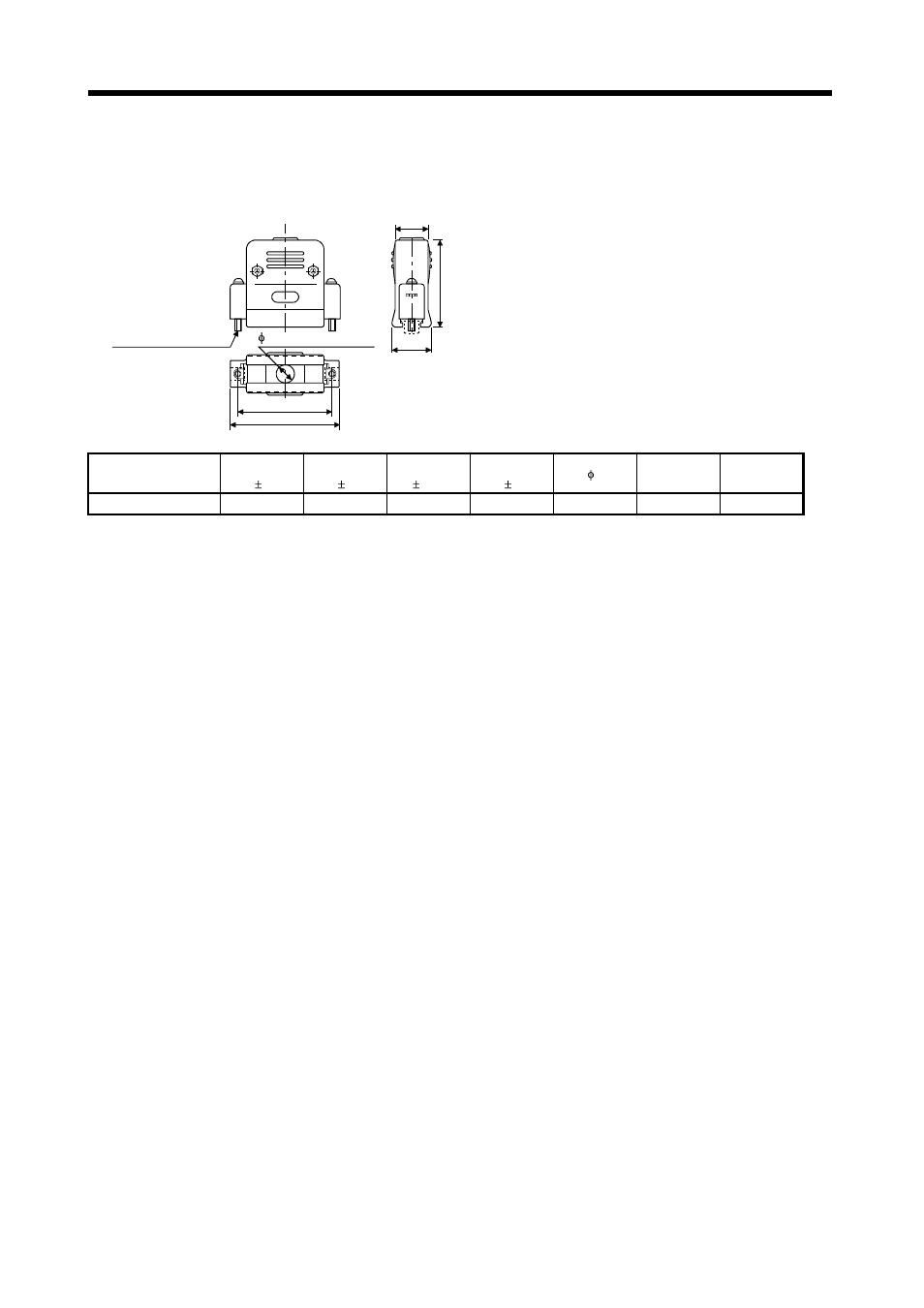

12. OUTLINE DIMENSION DRAWINGS
(2) Communication cable connector
C
D
F
A
B
[Unit: mm]
([Unit: in])
Fitting fixing screw G
E (max. diameter of
cable used)
Type
A
1
B
1
C
0.25
D
1
E
F
reference
G
DE-C1-J6-S6
34.5 (1.36)
19 (0.75)
24.99 (0.98)
33 (1.30)
6 (0.24)
18 (0.71)
#4-40
