6. MR Configurator (SERVO CONFIGURATION SOFTWARE)


6.7.3 Motor-less operation

POINT

When this operation is used in an absolute position detection system, the

home position cannot be restored properly.


Without a servo motor being connected, the output signals are provided and the servo amplifier display
shows the status as if a servo motor is actually running in response to the external I/O signals.
The sequence of the host programmable controller can be checked without connection of a servo motor.

Click “Test” on the menu bar and click “Operation w/o Motor” on the menu.

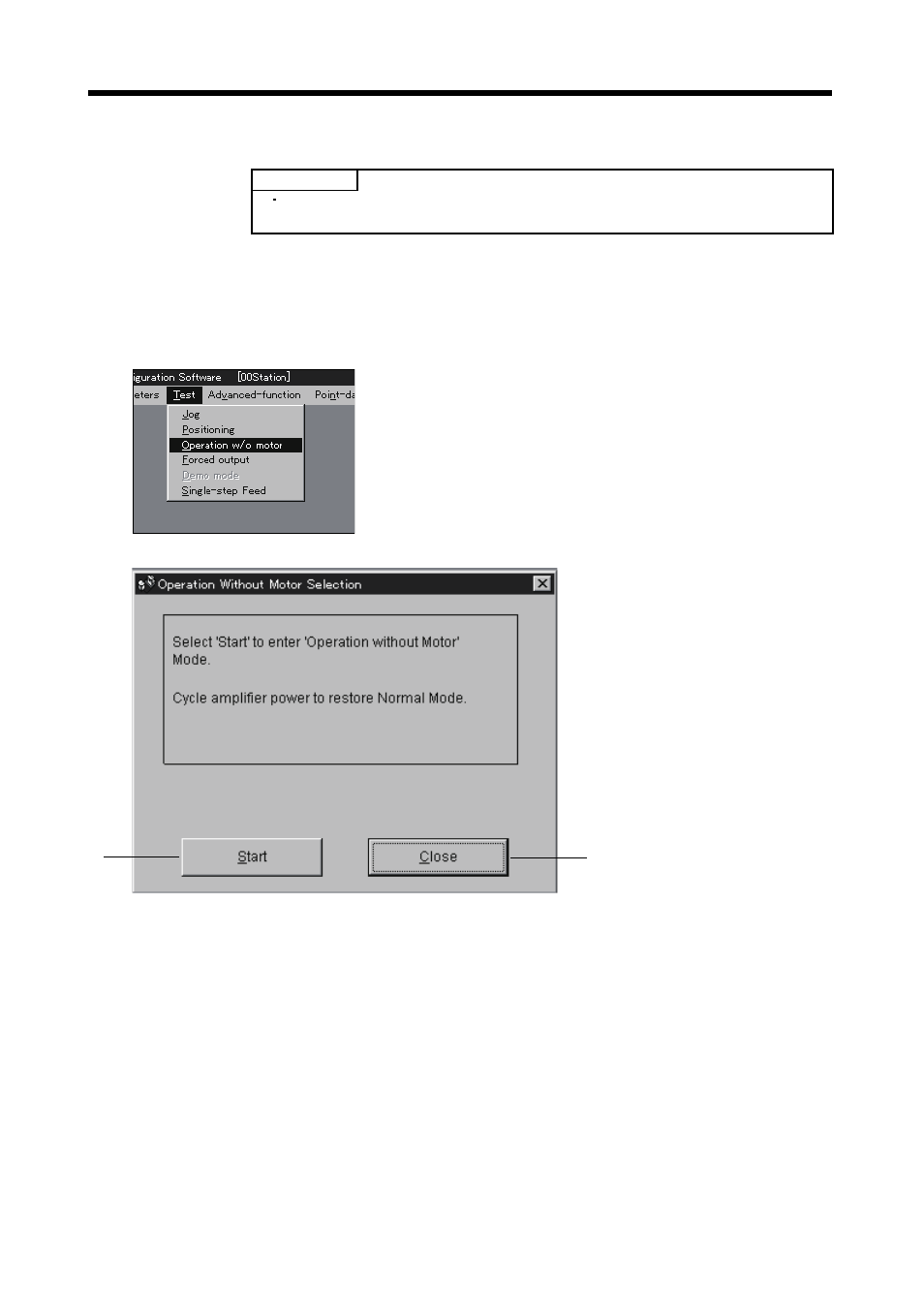

When the above choices are made, the following window appears.

b)

a)

(1) Execution of motor-less operation ( a) )

Click “Start” to perform motor-less operation.


(2) Termination of motor-less operation ( b) )

Click “Close” to close the window.


(3) Cancel of motor-less operation

To cancel motor-less operation, switch off the power of the servo amplifier.
