8 connection of servo amplifier and servo motor, 1 connection instructions, 2 connection diagram – MITSUBISHI ELECTRIC MR-J2S- CP User Manual

Page 78: Signals and wiring, Warning, Caution

Text mode
Original mode

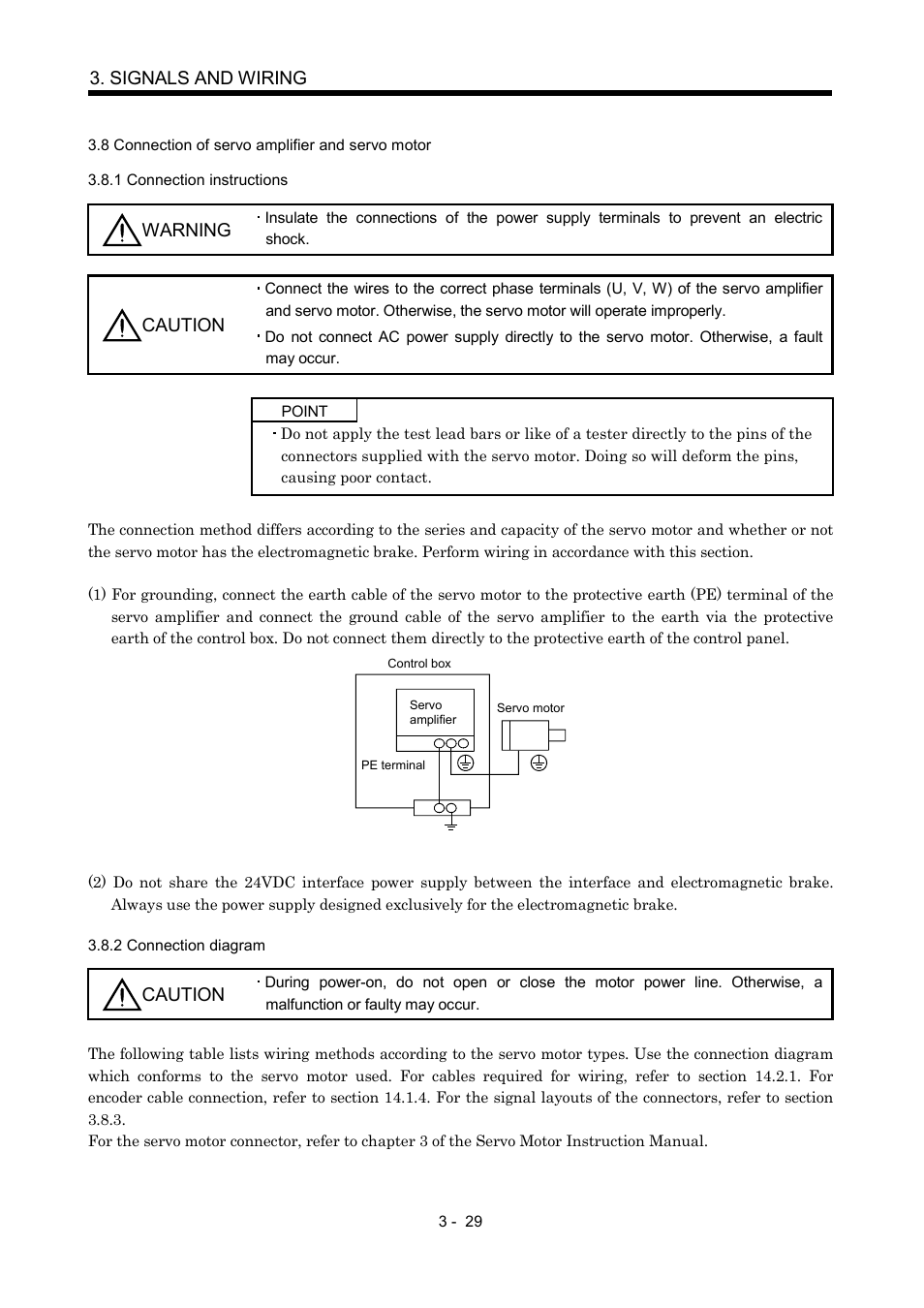

8 connection of servo amplifier and servo motor, 1 connection instructions, 2 connection diagram | Signals and wiring, Warning, Caution | MITSUBISHI ELECTRIC MR-J2S- CP User Manual | Page 78 / 357
