Product Description
38 MS-9200UDLS PN 52750:E1 01/27/09
1.8.7.7 ANN-RLY Annunciator Module
The ANN-RLY relay module provides 10 programmable Form-C relays when used
with a compatible FACP.

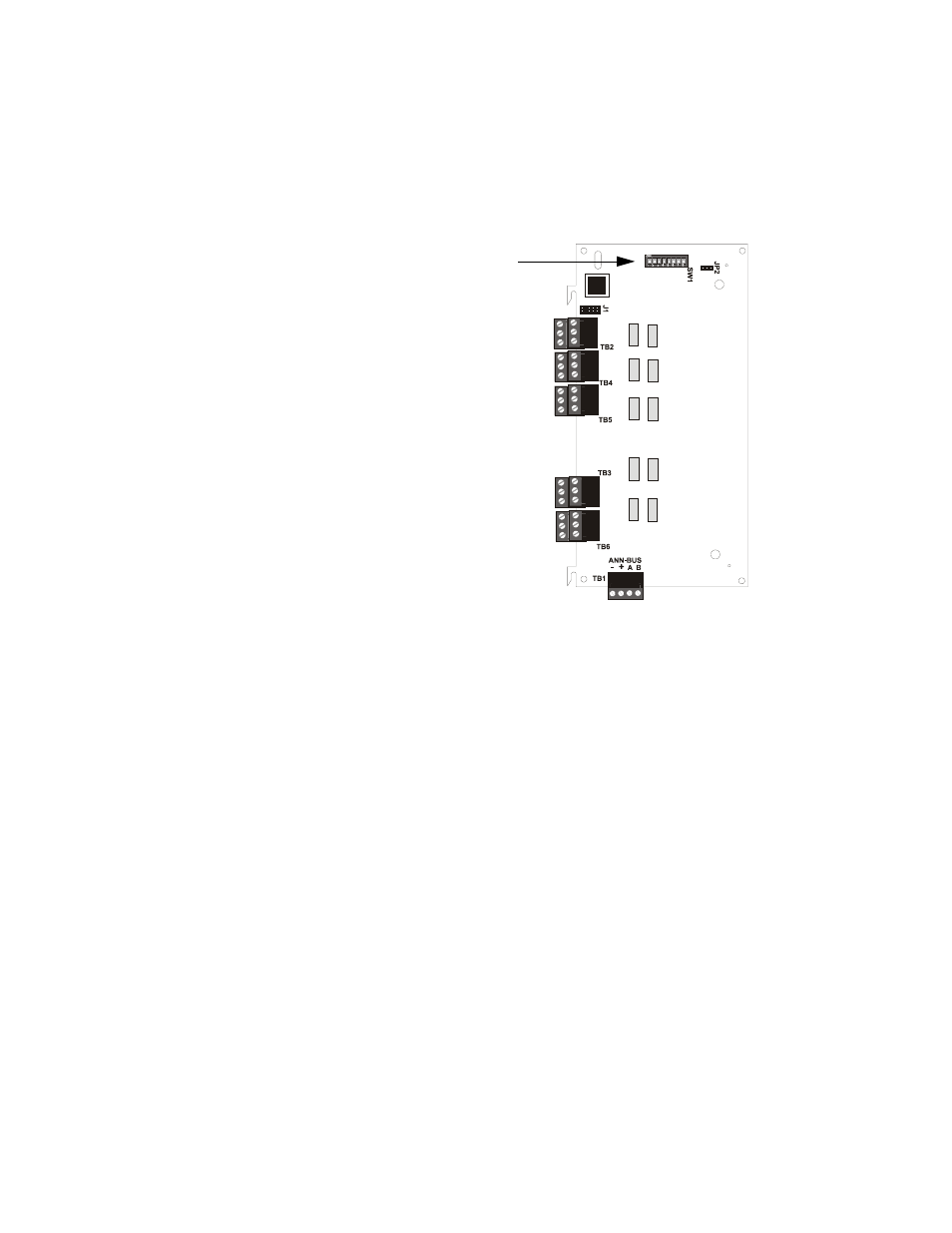

1.8.7.7.1 ANN-RLY Board Layout
Figure 1.10 illustrates the ANN-RLY board showing locations of screw terminals
for connection to the FACP and the DIP switches for selecting the ANN-BUS ID
number.
1.8.7.7.2 Specifications
• Operating Voltage: 24 VDC
• Max. Current:
Alarm: 75 mA
Standby: 15 mA
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only
1.8.7.7.3 Mounting/Installation
The ANN-RLY relay module can be mounted inside the FACP main circuit board
chassis. Refer to documentation supplied with the relay module.
ANN-BUS (ID#)
Address DIP switch
ANN-BUS Connector
Figure 1.12 ANN-RLY Board Layout
