Product Description
MS-9200UDLS PN 52750:E1 01/27/09 35
1.8.7.6 ANN-LED Annunciator Module
The ANN-LED and ANN-RLED annunciator modules provide LED annunciation
of general system faults and input zones/points when used with a compatible FACP.
The ANN-LED module provides alarm (red), trouble (yellow) and supervisory
(yellow) indication for up to ten input zones or addressable points. The
ANN-LEDR provides alarm (red) indication for up to 30 input zones or addressable
points. Multiple ANN-(R)LED modules may be used for full system coverage.

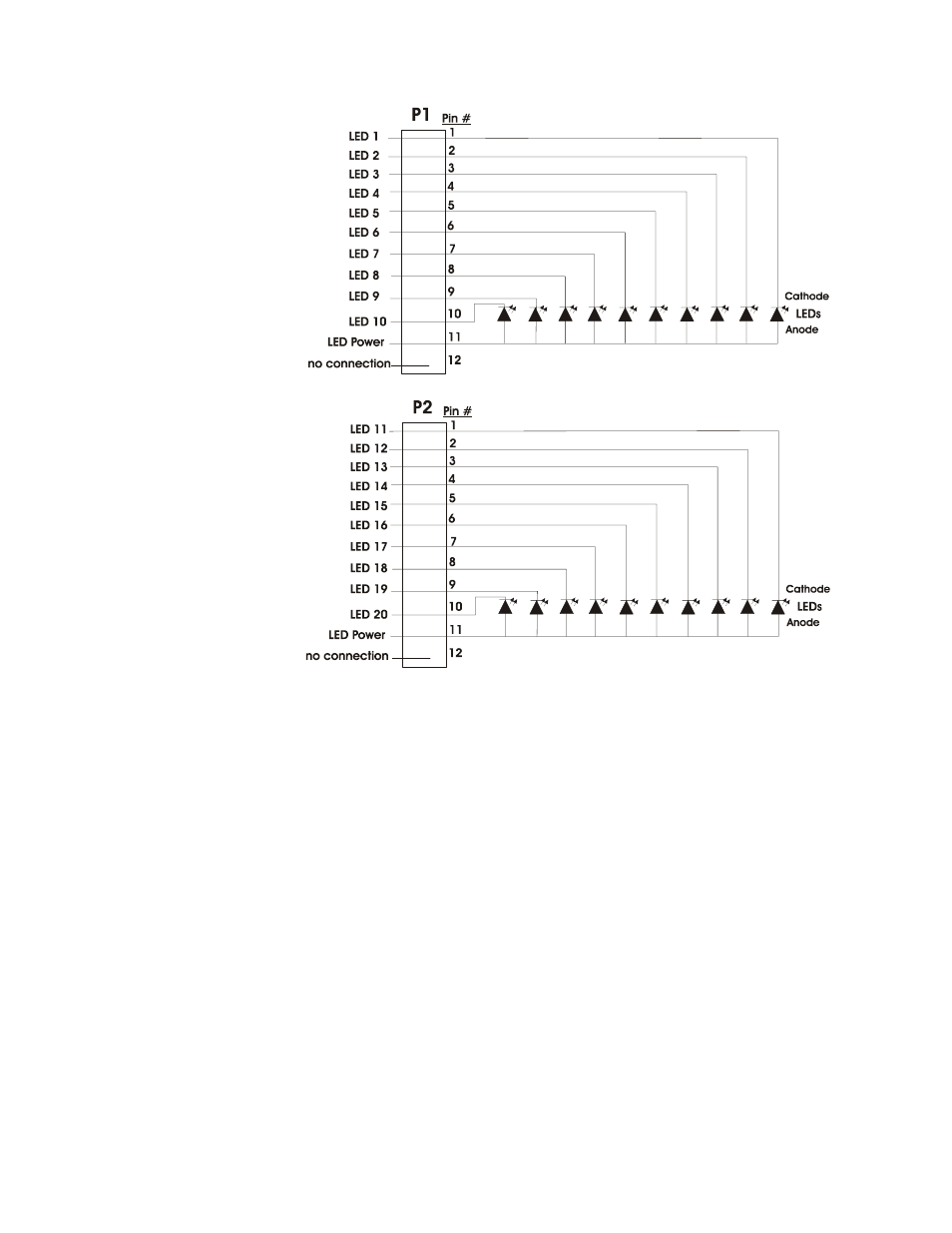

Figure 1.9 ANN-I/O Board Layout
a
nnI-Ole
ds
.c
dr
