Product Description
MS-9200UDLS PN 52750:E1 01/27/09 37
1.8.7.6.4 ANN-LED Connection to FACP
Figure 1.10 illustrates the ANN-LED board showing locations of screw terminals
for connection to the FACP and the DIP switches for selecting the ANN-BUS ID
number.

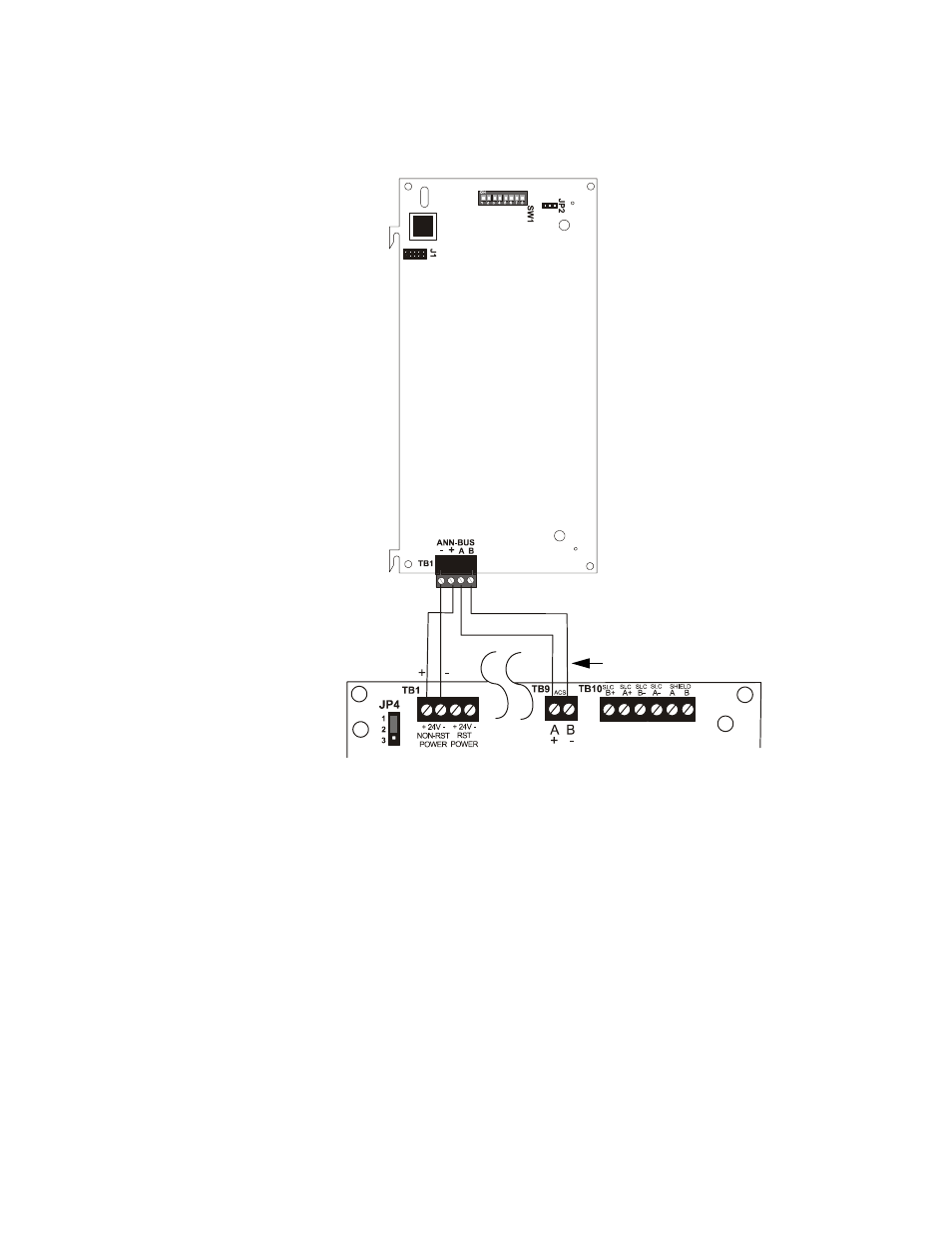

Figure 1.11 ANN-LED Connection to FACP
MS-9200UDLS
ANN-LED
ANN-BUS/ACS BUS
+24 VDC -24 VDC
ANN-BUS and power wiring are
supervised and power-limited
