Model OFE/OFG-321,322,323,324

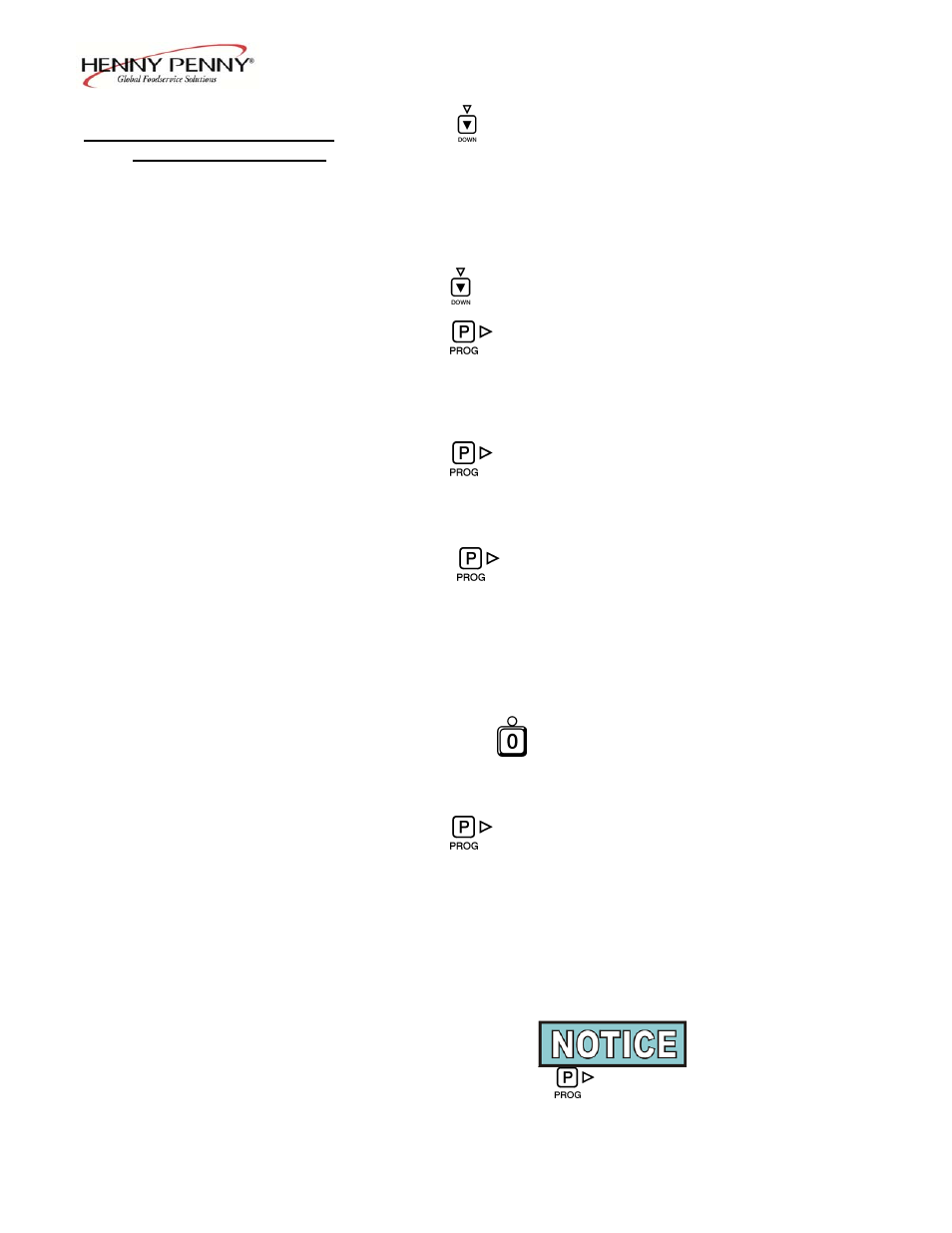

6-1. INFORMATION MODE Press to view the No Connect/Ground (“NC/GND”)
FUNCTIONS (Continued) status of each output. This monitors a possible problem with
the relays on the output PC board.
“F
√”, “H √” and “P √” in the display means everything on
the output PC board is good. A flashing “X” behind the F, H
or P means a problem exists.
Press to view the outputs and inputs (see step 10) together.
Press to continue onto the OIL TMP reading.
8. OIL TMP
This step shows the present peanut shortening temperature.
The display shows “7. OIL TMP (temp.)”.
Press to continue onto the CPU TMP reading.
9. CPU TMP
This step shows the present PC board temperature.
Press to continue on to the ANALOG reading.
10. ANALOG <1> 2.86V
This step displays the present status of any channel of the
controller’s a to d converter. This feature may be useful to a
technician troubleshooting a problem with the fryer or controller.
The displayed value can be toggled between volts and bits
by pressing . If the displayed value has a decimal point,
it is voltage (0 to 5 VDC). If no decimal point is shown, the
value is a-to-d bits (0 - 4095).
Press to continue onto AUTOLIFT/DETECT.
10. AUTOLIFT/DETECT=
This step shows the status of the autolift system, if installed.
The display indicates “Detect=Yes” if an autolift system is
detected; otherwise, it displays “Detect=No”.
The letter following the “L” indicates the status of the left- side
autolift motor: “u” = up, “d” = down. Similarly, the letter
following the “R” indicates the status of the right-side autolift
motor.
Press and hold to exit Information Mode at any
time, or after 2 minutes, controls automatically exit
back to normal operation.
6-6 1005
