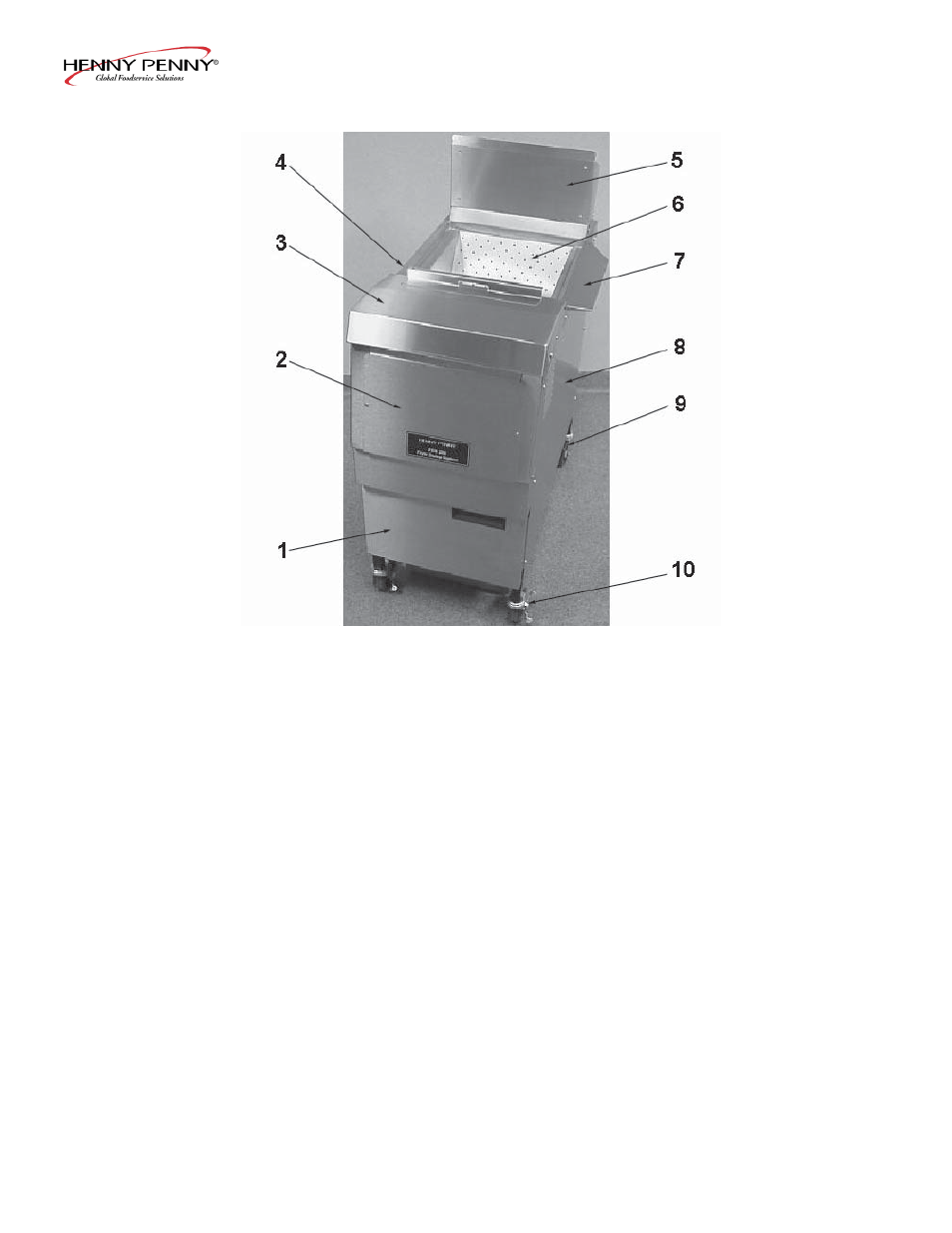

Fryer Dump Station

Part Number

Item

Number

Description

FDS-100

FDS-200

1

Door and Hinge Assy.

59614

71870

2

Blank Front Panel

--

24825

3

Top

Cover

Assembly

59530

60515

4

Left Side Panel

63642

60551

5

Rear

Shroud

Assembly

59531

23808

6

Dump

Tray-Weld

Assy.

82311

82321

7

Drip

Shield

48629

48629

8

Right Side Panel

59526

60552

9

Caster -- Non-Lock (2 each)

28170

60312

10

Caster -- Locking (2 each)

27154

52064

11*

Back

Panel

59529

--

12*

Upper Rear Panel

59532

60527

13*

Heat Lamp Accessory - 120V

63641

03202

13*

Heat Lamp Accessory - 230V

72127

03547

14*

Drain

Pan

--

21088

15*

Drain Pan Cover

--

21064

16*

Drip

Tray

59617

78348

* not shown
1

FM07-788-A

10/22/10

FDS Parts Sheet

FDS-100 and FDS-200
