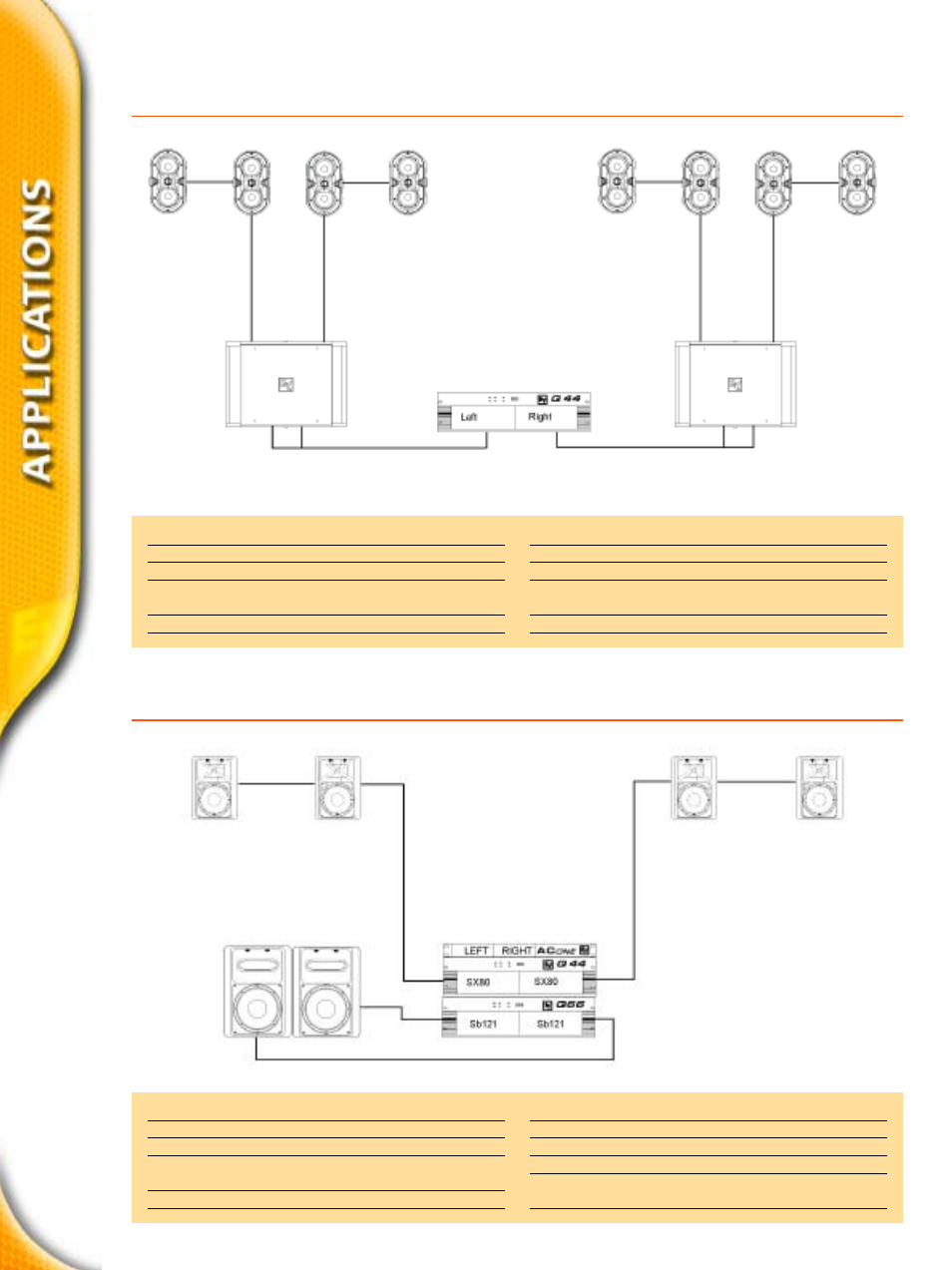

Single-Amp Drive – Stereo Music Pub, Cafe (Foreground Music)
2-Way Stereo (Mono Sub) Music Bar, Cafe, Small Disco
Cabinets 8 EVID 4.2, 2 EVID 12.1
Amplifiers 1 Q44 or CPS1
Controllers –
Cabling 10 2-wire long, 4 2-wire short
Accessories (AB-62 for 180°, or AB64 for 360° Array)
Horizontal Coverage 8 x 90°, or 4 x 180°, or 2 x 360°
Typical Distance 8 to 15 m
Total Amp Power 900 W
Options could also be used with only two 4.2’s per side
for smaller rooms, but high sub level requirement
Comments inputs on 12.1 in parallel
Cabinets 4 x Sx80, 2 x Sb121
Amplifiers 1 x Q44, 1 x Q66
Controllers 1 x Ac-One
Cabling 4 x NL4 long, 2 x NL4 short
Accessories Sx80MBB / UMH
Horizontal Coverage 2 x 100° to 150°, or 4 x 90°
Typical Distance 10 m to 15 m
Total Amp Power 2 x 830W = 1660W
Options Third Sx80 per line could be added
Comments Lo-Cut 50Hz, X-Over 85-90Hz,
Sb121 Mono Out
