Cobalt R100 VHF
Receiver
Controls
Front Panel:
Power On/Off
Rear Panel: Microphone Output Adjustment
Indicators
Diversity Lights:
Indicates antenna phase relationship
Audio Meter: Shows audio signal level from the transmitter
RF Meter: Shows the RF signal strength
Connectors XLR balanced output
Antennas Detachable 1/2- wave ground independent
RF Specifications
Frequency:
722-746 MHz Fully Programmable
Diversity: Full True Diversity
RF Sensitivity: <0.5uV for 12 dB SINAD
FCC type acceptance: Approved under Part 15
Audio Specifications
(compander active)
Frequency Response: 50 Hz – 15 kHz ± 1 dB
Audio Output Level: -50 dBm to –10 dBm into 200 Ohms
Distortion: Less that 0.5%
Dynamic Range: 100 dB
Audio Specifications (compander inactive)
Signal to Noise Ratio: 62 dB typical
Transmitters
Controls Power on/off switch
Audio mute on/off switch
Audio gain adjustment with 40 dB range
Indicators Red LED low battery indicator
Battery Life 7 hours with 9-volt alkaline
Antenna 1/4-wave detachable
Connector Microphone input 4-Pin TA4M
Pin 1: ground;
Pin 2: Mic input;
Pin 3: +5V bias; Pin 4: +5V through 3k ohm
RF Output Adjustable 5 or 50 mW Typical
Size 94 mm x 66 mm x 23 mm
3.7” x 2.60” x 0.91”

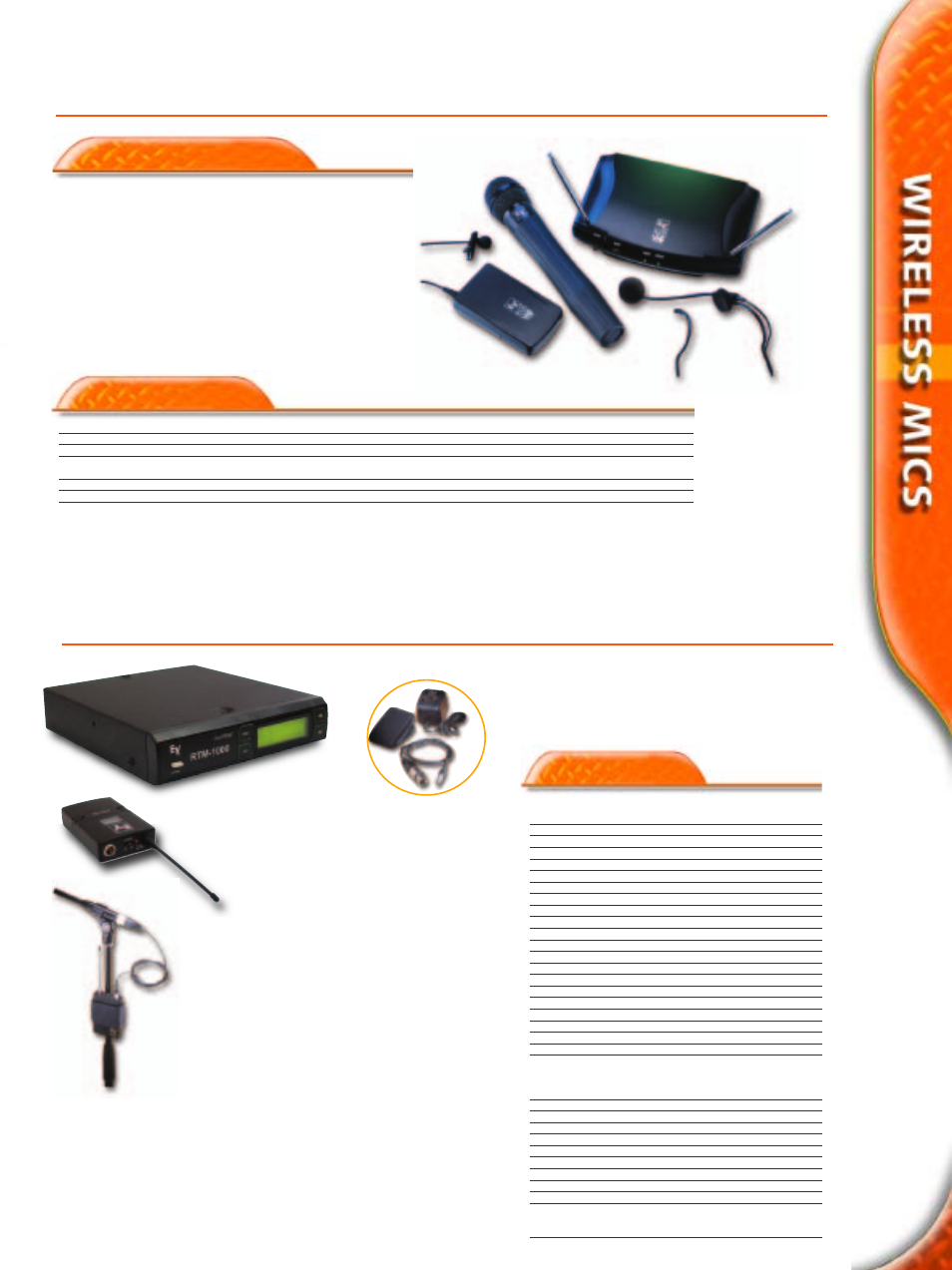

RTM-1000 transmitter is shown
with the mounting strap and cable
adapter. (Microphone and mic
stand not included)
RF Frequency Range: 174.100-203.200 MHz (11 stock frequencies)
Audio Frequency Response: 20 Hz-15 kHz +/- 2 dB
Harmonic Distortion: <0.5%
Radiated RF Output: 35-45 mW typical,
50 mW maximum
Audio Output Level: .775 V rms into 100 k Ω load
Battery Life: 8-12 hours typical
Available Systems: R100VHC7 Electro-Voice Co7 Handheld Dynamic • R100VHC11 Electro-Voice Co11 Handheld Condenser
R100VL Electro-Voice OLM10 Lavalier Condenser • R100VE Electro-Voice HM2 Headworn Condenser
R100VG Electro-Voice Guitar System
R-100 VHF System
The COBALT R100 VHF systems operate in the
frequency band between 174.100 and 185.350
MHz (channels 7-8 in the TV band). With the
R100 Series, having EV wireless freedom has nev-
er been more affordable, cost-effective or practi-
cal. The R100’s rock-solid RF performance is the
result of superior design and state-of-the-art man-
ufacturing. The R100 receiver can also be rack-
mounted with the optional RMR accessory kit.
RTM-1000 Remote Test System
Reduce the hassle and improve the results of your
pre-concert soundchecks with the RTM-1000
Remote Test Wireless System. This system provides
a wireless link between your calibrated measure-
ment microphone and audio analyzer. That
means you can quickly test multiple locations
from the front row to the nosebleed seats in
the time it would take to haul long mic cables to just
one spot.
• Wireless link between test microphone and audio
analyzer allows faster, easier measurement of
large performance spaces
• Works with most measurement microphones
• Non-companded transmission does not affect au-
dio quality
The key feature of the RTM-1000 is the compander
on/off switches on both the receiver and bodypack
transmitter. Wireless mic systems normally use com-
panding (compressing/expanding) to stuff more
dynamic range through narrow wireless channels.
But companding can also add coloration or distor-
tion to the signal. The RTM-1000 lets you defeat
the compander circuit, leaving the signal from mic
to analyzer unchanged.
• MOUNTING STRAP
• LEMO-to-XLR ADAPTER CABLE
• AC ADAPTER (as pictured at left)
SPECIFICATIONS
SPECIFICATIONS
