AC One Analog Controller
The AC One analog audio controller has been designed to
be used in high-performance applications that employ small-
to medium-size full-range systems with subwoofers. Its
excellent audio performance, dynamic range of 117 dB,
extremely low noise level, and outstanding price-perform-
ance ratio make the AC One an advantageous alternative to
conventional crossover and controller solutions. It is possible
to meet the tough demands of modern audio applications –
such as high sound pressure level, coverage, and sound
quality – only by using a biamped loudspeaker system which can fully separate, amplify, and reproduce the audio signal´s
frequency ranges. The PowerMax 12 crossover function
brings the low-frequency performance of bigger systems to
compact systems. The AC One guarantees highly economi-
cal system applications without loss of performance, and
helps to save on application space.
Inputs and outputs are active balanced. The inputs can be
fitted with optional high-quality input transformers (NRS
90208). The outputs feature output relays which protect
against unwanted noise in case of power failure.
The new PowerMax 12 crossover function (patents pending)
makes the best possible use of amplifier output power and
loudspeaker transmission capacities. Compared to other reg-
ular crossover designs on the market, PowerMax 12 delivers
an extra 3 dB SPL at the crossover point, something which
cannot be achieved by normal EQ´ing alone. In addition,
speaker overload and amplifier clipping are dramatically
reduced. The PowerMax 12 crossover function silences the
oft-heard complaint: “It needs more punch and definition.”
In addition, a 12-dB (Q: 1.0) lo-cut filter and a unique
3-band equalizer featuring the patented LPN filter allows for
flexible, easy, and quick system adjustments.
Part number Option/accessory
PA 1 Clear acrylic cover
NRS 90208 Input transformer
24 dB Linkwitz-Riley crossover curve
PowerMax 12 crossover curve
PowerMax 12 advantage

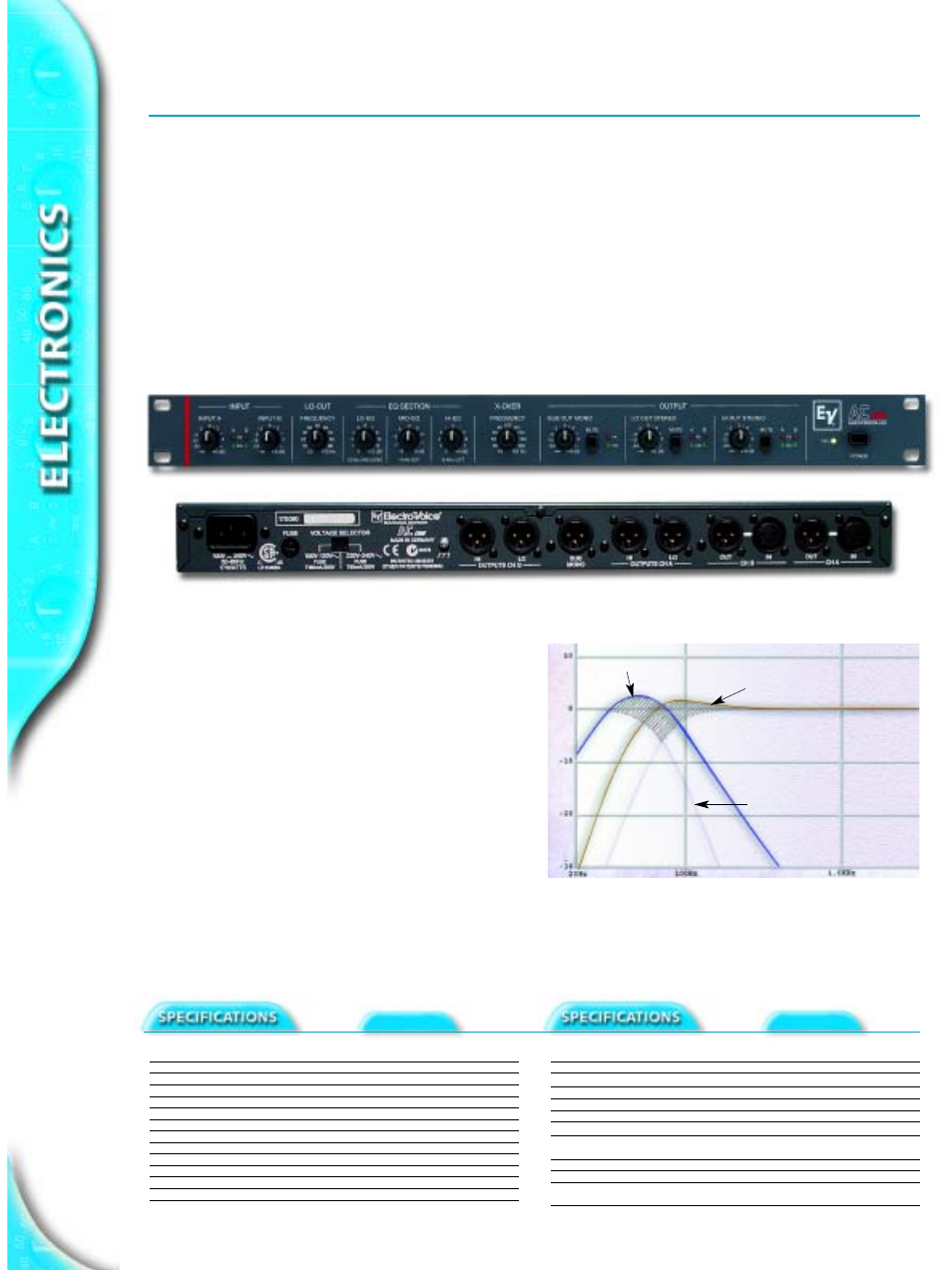

AC One Analog Audio Controller
The PowerMax 12 Advantage and its Unique EQ Section
AC One Options and Accessories:
AC One
Crossover type 2-way stereo + sub mono
Crossover frequency (sweepable) 45–160 Hz
Crossover filter type PowerMax 12
Filter options (adjustable) Lo-cut / 3-band EQ
Frequency response (-3 dB @ 1 kHz) 16 Hz–150 kHz
Nominal gain 0 dB
Maximum gain +12 dB
Dynamic range (+20 dBu, a-weighted) 117 dB
THD + N (20 Hz–20 kHz, +6 dBu) <0.02%
THD + N (typical, +6 dBu) 0.003%
Crosstalk attenuation >80 dB
Mute switch rejection >90 dB
Level control attenuation >80 dB
Input impedance 20 k Ω
AC One
Maximum level (Inputs: A, B) +20 dBu
Rated level (inputs: A, B) +6 dBu
Gain range (inputs: A, B) - ∞
to +6 dB
Output impedance (HI, LO, SUB) 75 Ω
Maximum level (outputs: HI, LO, SUB) +20 dBu
Rated level (outputs: HI, LO, SUB) +6 dBu
Gain range (outputs: HI, LO, SUB) - ∞
to +6 dB
Input/output connectors XLR (active balanced)/
Inputs with parallel out
Power consumption 17 W
Power requirements 50-60 Hz (switchable) 100–120V/220–240V
Dimensions (H x W x D) 1.72" x 19" x 8.92"
43.6 x 483 x 226.5 mm (1 RU)
Net weight 7.07 lbs (3.2 kg)
