HP Horns

HP4020

HP6040

HP9040

HP420

HP640

HP940

Coverage (H° x V° nominal)

40° x 20°

60° x 40°

90° x 40°

40° x 20°

60° x 40°

90° x 40°

Directivity Factor (average)

45.1 (+12.7, -18.9)

25.8 (+17.9, -5.9)

12.1 (+4.6, -3.7)

47.7 (+25.9, -23.5)

20.6 (+11.3, -3.3)

11.9 (+3.6, -3.0)

(500 Hz–20 kHz)

(1,250 Hz–20 kHz)

Directivity Index (average)

16.4 dB

14.1 dB

10.8 dB

16.8 dB

13.1 dB

10.7 dB

(+1.2, -2.2)

(+2.3, -1.1)

(+1.4, -1.6)

(+1.9, -3.0)

(+1.9, -0.7)

(+1.2, -1.2)

(500 Hz–20 kHz)

(1,250 Hz–20 kHz)

Useable low-frequency limit

200 Hz

500 Hz

400 Hz

Throat entrance

2" bolt-on

Height

838 mm (33.0")

813 mm (32.0")

367 mm (14.4")

330 mm (13.0")

Width

813 mm (32.0")

711 mm (28.0")

679 mm (26.75")

610 mm (24.0")

711 mm (28.0")

533 mm (21.0")

Depth

1,252 mm (49.3")

808 mm (31.8")

749 mm (29.5")

437 mm (17.2")

285 mm (11.2")

Net weight

12.3 kg (27.0 lbs)

9.1 kg (20.0 lbs)

5.9 kg (13.0 lbs)

4.3 kg (9.5 lbs)

3.2 kg (7.0 lbs)

HP1240

HP64

HP66

HP94

HPT64

HPT94

Coverage (H° x V° nominal)

120° x 40°

60° x 40°

60° x 60°

90° x 40°

60° x 40°

90° x 40°

Directivity Factor (average)

8.6 (+2.5, -2.1)

18.1 (+4.1, -8.8)

17.9 (+10.5, -9.3)

10.1 (+5.8, -1.8)

15.8 (+5.2, -4.9)

11.6 (+5.0, -2.5)

(1,250 Hz–20 kHz)

(1,600 Hz–20 kHz)

(3,150 Hz–20 kHz)

Directivity Index (average)

9.34 dB

12.6 dB

12.5 dB

10.0 dB

12.0 dB

10.6 dB

(+1.1, -1.2)

(+0.9, -2.9)

(+2.0, -3.0)

(+2.0, -0.8)

(+1.2, -1.6)

(+1.6, -1.0)

(1,250 Hz–20 kHz)

(1,600 Hz–20 kHz)

(3,150 Hz–20 kHz)

Useable low-frequency limit

400 Hz

650 Hz

800 Hz

1,600 Hz

Throat entrance

2" bolt-on

1" bolt-on

Height

330 mm (13.0")

279 mm (11.0")

133 mm (5.25")

Width

533 mm (21.0")

224 mm (8.8")

222 mm (8.75")

133 mm (5.25")

Depth

265 mm (10.4")

220 mm (8.7")

165 mm (6.5")

220 mm (8.7")

104 mm (4.1")

101 mm (4.0")

Net weight

3.2 kg (7.0 lbs)

2.5 kg (4.5 lbs)

2.2 kg (4.8 lbs)

2.5 kg (4.5 lbs)

0.4 kg (0.8 lbs)

The HP horn series is a refinement of the concept of “con-
stant directivity,” which, in 1974, EV was the first to intro-
duce. For the first time, horn coverage angles were truly
uniform over a wide frequency range. In the HP series,
unique beamwidth-control vanes within the horn throat
form a waveguide that eliminates the narrowing of cover-
age angle – beaming – that occurs in other 2-inch-throat

horns. EV’s patented Transplanar™ design provides excep-
tionally smooth frequency response. HP horns or variants
thereof are used throughout the EV speaker system lines.
Each HP horn features an integral die-cast metal throat
encapsulated in the fiberglass sidewalls. This unitized con-
struction provides very high strength and low weight.

HP4020
HP6040
HP9040

• Large-format two-inch horns
• The ultimate in dispersion

control, with control of rated
dispersion angle down to
500 Hz, both horizontally and
vertically

• Directivity control to 500 Hz

maximizes vocal intelligibility
and musical clarity in difficult
acoustic environments

HP420
HP640
HP940
HP1240

• Medium-format two-inch horns
• Vertical dimensions have been

reduced, for use when space
constraints preclude the use
of large-format horns

• Horizontal directional control

maintained to ~500 Hz

• Vertical control to ~1,500 Hz

HP64
HP66
HP94

• Small-format two-inch horns
• Use as primary HF horns in

compact sound systems

• Beamwidth control to ~2,000 Hz

HPT64
HPT94

• Very-small-format one-inch

horns

• Use in three- and four-way

systems with DH3 driver for
tweeter and supertweeter
applications

• Directional control to 3,000 Hz

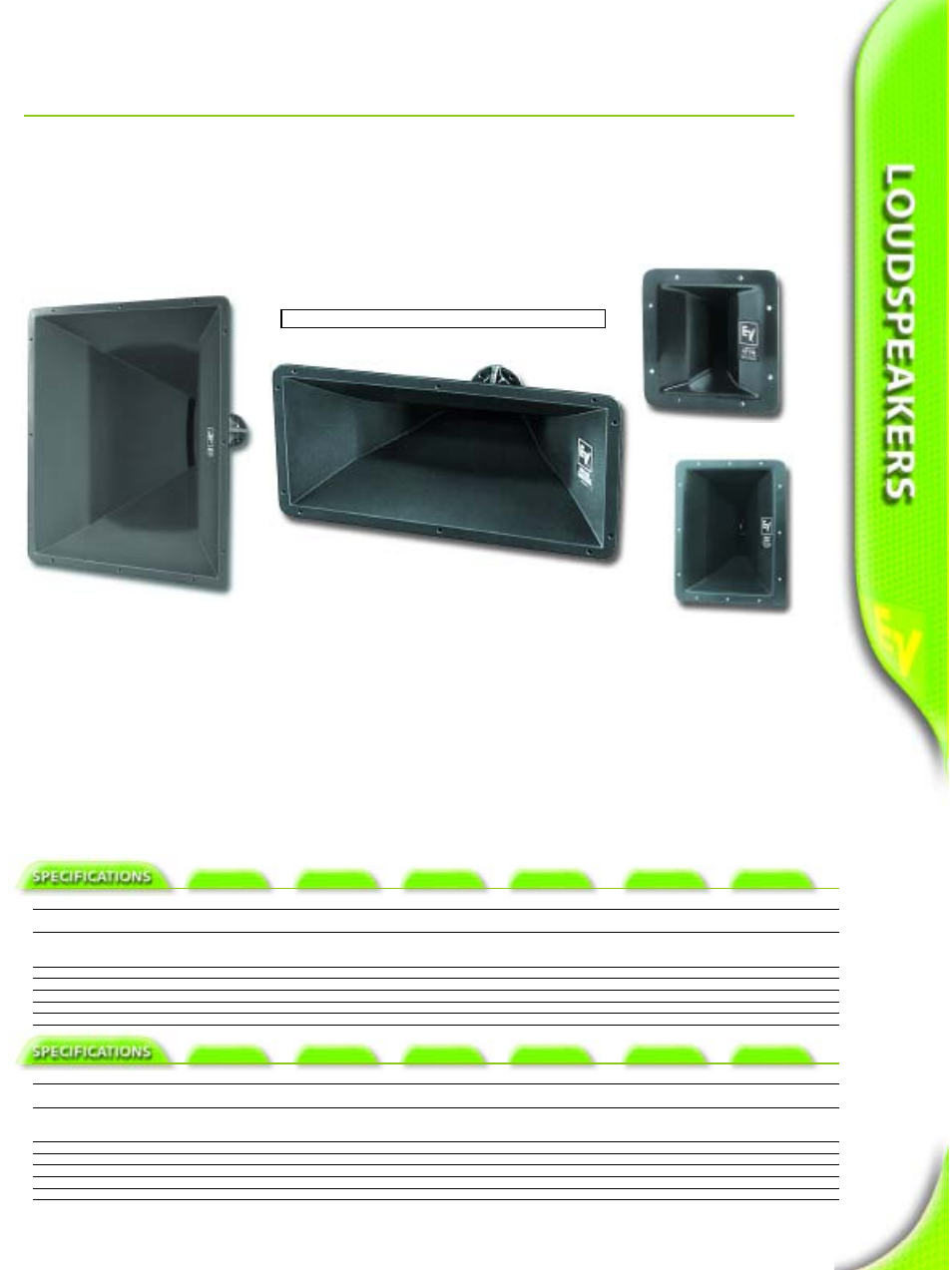

HP6040

HP64

HPT64

HP640

Note: Horns shown out of proportion to each other
