Electro-Voice Microphone - Manual (Page 75)

75

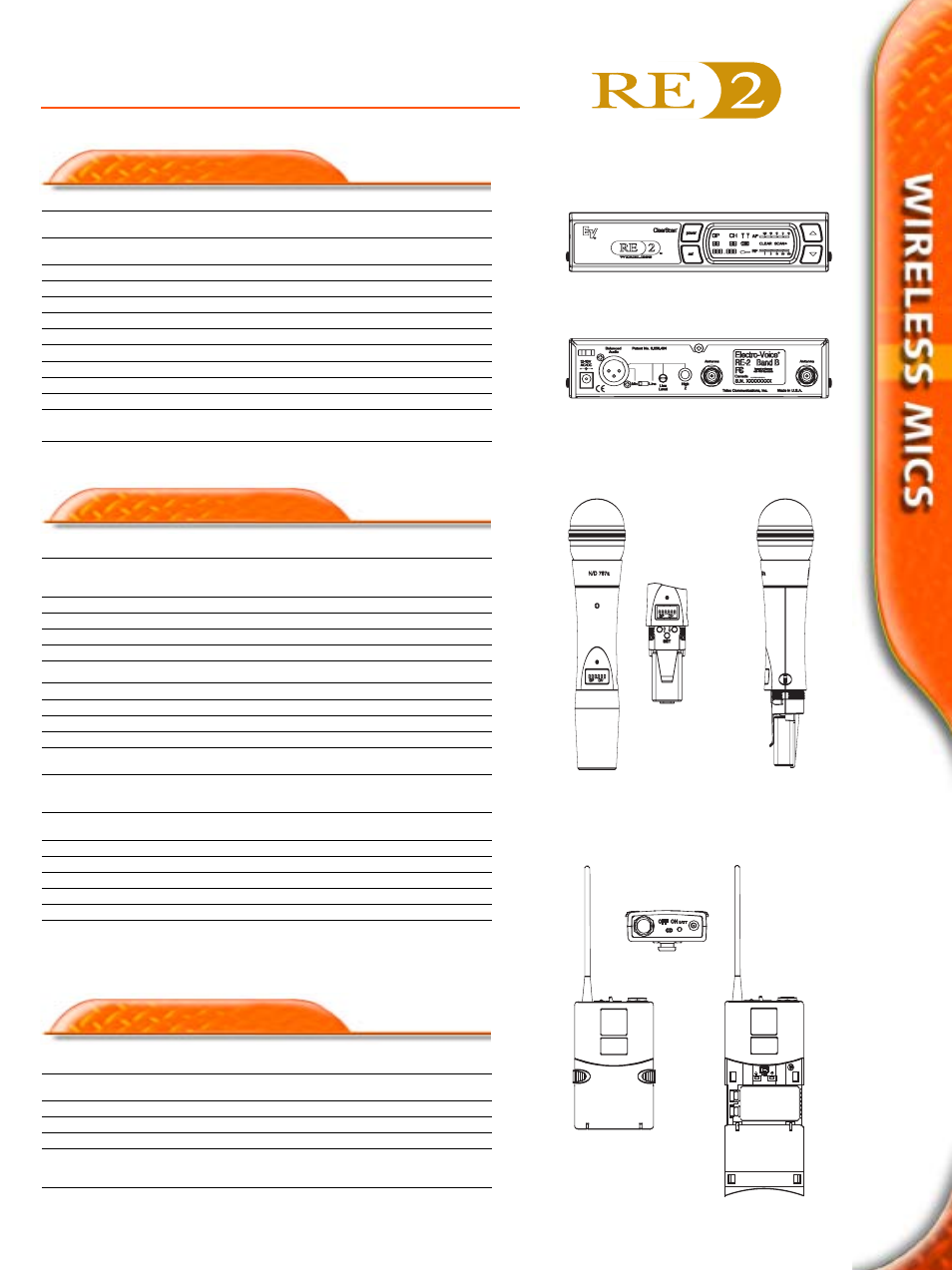

UHF Wireless Microphone System
RE-2 Receiver
Audio Parameters
Transmitters, Bodypack
RECEIVER
Front
Back
HANDHELD
Front
BODYPACK
Side
Top
Front
Receiver Type Synthesized PLL
Frequency Range (RF) A Band 648 – 676 MHz B Band 696 – 724 MHz
D Band 798 – 822 MHz E Band 841 – 865 MHz
Number of Channels 1112 possible channels
Programmable in 25 kHz steps
Modulation +/- 40 kHz
Diversity Digital Posi-Phase™ True Diversity
RF Sensitivity < 1.0 mV for 12 dB SINAD
Image Rejection > 60 dB
Squelch Tone Code plus Amplitude
Ultimate Quieting > 100 dB
FCC Certification Approved under Part 15
Power Requirements 12 V AC/DC 300 mA
Antennas Detachable 1/4 wave
Dimensions 43.69 cm H x 190.50 mm W x 150 mm D
1.72” H x 7.50” W x 5.9” D
Radiated Output Normal 5 mW typical
High 50 mW typical
Interchangeable Microphone Heads 767a Supercardioid N/DYM Dynamic
RE 510 Supercardioid Condenser
Bodypack Antenna Detachable Flexible external 1/4 wave
Handheld Antenna Internal 1/2 wave
Dimensions (Handheld) 26.8 cm (10.5 in.) Long
Dimensions (Bodypack) Cast Magnesium
96.5 mm H x 66 mm W x 23.4 mm
D3.8 in. H x 2.6 in. W x 0.92 in. D
Frequency Response 50 – 15 kHz +/- 2 dB
Balanced Output (max @ 40 kHz deviation)
Mic Position -10 dBV
Line Position Adjustable 10 mV-2V RMS
Unbalanced Output Adjustable 10 mV-1V RMS
Distortion <1.0%, 0.5% typical (ref 1 kHz, 40 kHz deviat)
Signal-to-Noise Ratio >100 dB A Weighted
Dynamic Range >100 dB
Transmitters, Bodypack (BPU-2) and handheld (HTU-2)
Radiated Output 30 mW typical
Microphone Head Electro-Voice 767a N/D 767a Supercardioid N/DYM Dynamic
Microphone Head Electro-Voice 267a N/D 267a Versatile Cardioid Dynamic
Microphone Head Electro-Voice RE 410 RE 410 Classic Cardioid condenser
Standard Lavalier Microphone EV RE 90Tx MicroMini™
Omni-Directional Condenser
TA4 Connector Wiring Pin 1: Ground; Pin 2 Mic Input;
Pin 3: +5V bias; Pin 4: +5V bias through a 3kW resis-
tor
Audio Gain Adjustment 40 dB (handheld 26 dB)
Power Requirements 9 Volt Alkaline Battery
Battery Life (Typical) > 8 hours with 9-Volt Alkaline Typical
Bodypack Antenna Flexible external 1/4 wave
Handheld Antenna Internal 1/2 wave
Dimensions (Handheld) 24.0 cm (9.4 in.) Long
Dimensions (Bodypack) 96.5 mm H x 66 mm W x 23.4 mm D
3.8 in. H x 2.6 in. W x 0.92 in. D
