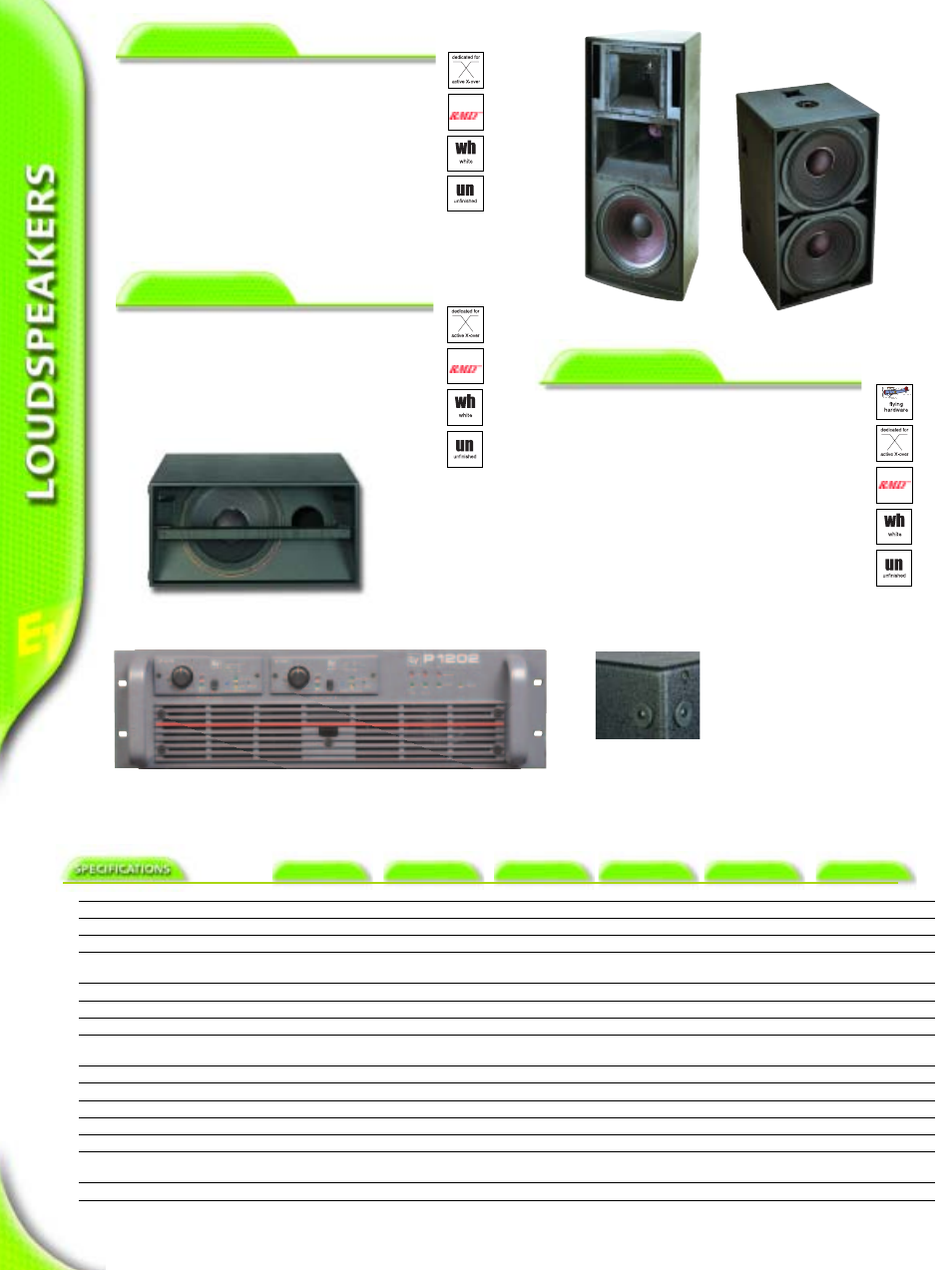

20
QRx 118 S
•
Subwoofer
•
Direct radiating vented design
•
High Sensitivity
•
Solid bass down to 30 Hz (-10 dB)
•
Rectangular
•
Equipped with shown features below
QRx 153/75
•
Three-way, high-output, full-range loudspeaker
•
Biamp only
•
Solid bass to 42 Hz (-10dB)
•
Vented LF enclosure
•
Asymetrical CD horn aimed downward by 10°
•
3” HF voice coil (titanium diaphram)
•
Protection circuit for HF driver
•
Trapezoidal cabinet (15° per side) for tight-
pack situations
•
Comes with L-track hardware and single-stud
ancra fittings
QRx 218 S
•
Subwoofer
•
Direct radiating vented design
•
High Sensitivity
•
Solid bass down to 31 Hz (-10 dB)
•
Rectangular
•
Also perfect in combination with large HP
and MH horns
•
Equipped with shown features below
•
Flyable version available
The dedicated amps for QRx series are the Precision Series™ controller amplifiers. They guarantee maximum
performance, ultralinear frequency response, and optimized operation safety on the strength of EV´s dynamic
limiter and VCP (voice coil protection).
Rubber feet
P 1202 controller amp configured with QRx modules QRx subwoofer features
QRx 153/75
QRx 218 S
QRx 118 S
Frequency Range (-10 dB)
52 Hz - 18 kHz
45 Hz - 15 kHz
42 Hz - 20 kHz
50 Hz - 15 kHz
38 - 250 Hz
35 - 250 Hz
Frequency Range (-3 dB) with controller amp
46 Hz - 18 kHz
48 Hz - 18 kHz
50 Hz - 16 kHz
43 Hz - 18 kHz
36 - 130 Hz
35 - 135 Hz
Recommended High-pass frequency
45 Hz (12 dB/Oct.)
45 Hz (12 dB/Oct.)
—
45 Hz (12 dB/Oct.)
36 Hz (12 dB/Oct.)
35 Hz (12 dB/Oct.)
Recommended controller module (P-Series amp)
M-112
M-115
M-153
M-212
M-118S
M-218S
Axial Sensitivity SPL 1W/1m
98 dB
98 dB
98/105 dB
102 dB
98 dB
99 dB
(Biamp operation)
(100/112 dB)
(101/112 dB)
—
(102/112 dB)
—
—
Max. SPL / 1m (calc.); full space
131 dB
130 dB
130 dB
136 dB
133 dB
139 dB
Continuous Power Handling
300 W (300 W/75 W)
400 W (400 W/75 W)
400 W/150 W/150 W
600 W (600 W/75 W)
600 W
1,200 W
Peak Power Handling (Biamp)
1,200 W (1,200/300 W)
1,600 W (1,600/300 W)
1,600 W/600 W/600 W 2,400 W (2,400/300 W)
2,400 W
4,800 W
Coverage (nominal -6 dB) H° x V°
75° x 50°
75° x 50°
75° x 50°
75° x 50°
essentially
essentially
(asym. CD horn)
(asym. CD horn)
(asym. CD horn)
(asym. CD horn)
omni
omni
LF woofer (transducer)
12” (DL12BFH)
15” (DL15ST)
15” (DL15ST)
2 x 12” (DL12BFH)
18” (EVX-180B)
2 x 18” (EVX180B)
VC diameter
3” (DH7)
3” (DH7)
8” MF8 MF/ 3” DH7 HF 3” (DH7)
---
---
Crossover Frequencies (slope in Biamp mode)
1,500 Hz (24 dB/Oct.)
1,500 Hz (24 dB/Oct.)
1,200 Hz
1,500 Hz (24 dB/Oct.)
100 Hz (24 dB/Oct.)
100 Hz (24 dB/Oct.)
Nominal Impedance (Biamp mode)
8
Ω
(8
Ω
/8
Ω
)
8
Ω
(8
Ω
/8
Ω
)
8
Ω
/12
Ω
/12
Ω
4
Ω
(4
Ω
/8
Ω
)
8
Ω
4/8
Ω
Input Connections
2 Neutrik
®
NL4
2 Neutrik
®
NL4
2 Neutrik
®
NL4
2 Neutrik
®
NL4
2 Neutrik
®
NL4
2 Neutrik
®
NL4
Dimensions (H x W at front x D)
675 x 390 x 372 mm
759 x 450 x 407 mm
1,240 x 467 x 485 mm
990 x 390 x 375 mm
760 x 450 x 677 mm
1,015 x 560 x 599 mm
26.6” x 15.36” x 14.77”
29.9” 17.72” x 16.02”
41.5” x 18.4” x 19.12”
38.98” x 15.47” x 14.77”
29.9” x 17.74” x 26.63”
40” x 22.05” x 23.6”
Net Weight (subs without wheel kit)
26.0 kg (58 lbs.)
32.0 kg. (71 lbs.)
47 kg (97 lbs.)
36.5 kg. (80 lbs.)
47.5 kg (100 lbs.)
68 kg (150 lbs.)
QRx112/75
QRx115/75
QRx153
QRx(H) 212/75
QRx118 S
QRx218S
