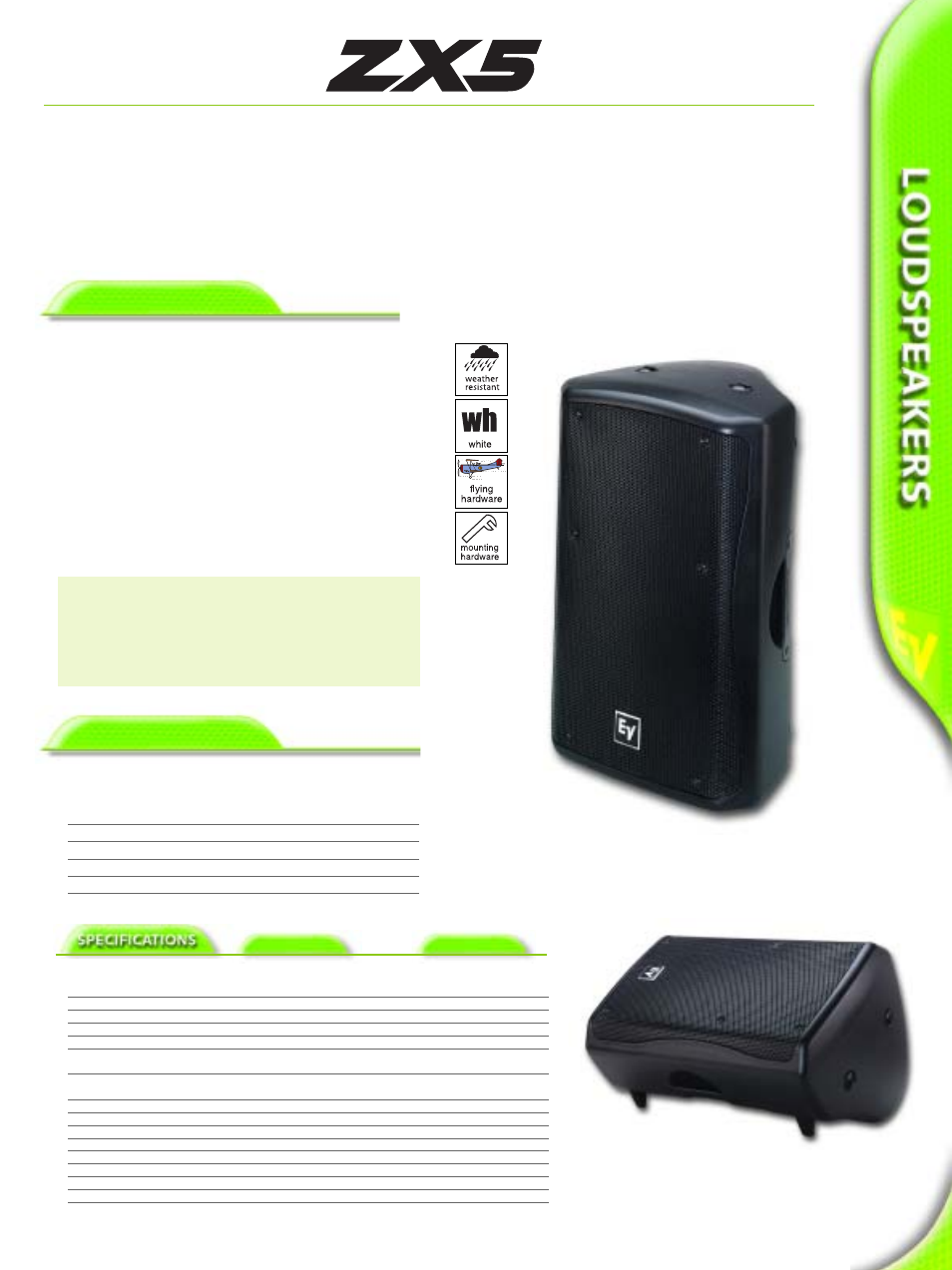

ZX5 family features
• DVX-3150 : New high-power 15" woofer
• ND2 : New 2" voicecoil Neodymium compression driver
• New asymmetrically molded polypropylene enclosure
• Internal passive crossover
• 10 x metric inserts (M8)
• 3 Ancra single-stud fittings (5 attachment points)
• Integrated pole-mount adaptor
• Powder-coated full-face steel grille backed with foam
• Standard floor monitor angle 45°, adjustable to 55°
with integrated monitor feet
ZX5 is available as 90° x 50° or 60° x 60°, in black or
white finish. Both horn patterns are also for outdoor
use, these black PI versions come up with powder-
coated stainless steel grilles and waterproof glandnut
input panels with SJO cable.
Founded on more than 20 years of experience in building
professional lightweight loudspeakers based on polypropy-
lene enclosures and high-end components, ZX loudspeakers
comprise a new family that includes all of EV’s expertise in
sound reinforcement for mobile and fixed install business. Incorporating brand-new, high-power series woofers and
drivers, the new elegant style molded cabinets combine
mechanical solutions for all permanent installation and mobile
stage application demands.
The Advanced Generation of Versatile, High-Performance Lightweight Speakers
Product Matrix
Model Pattern Color Weather-
(H x V) resistant IP44
ZX5-90B 90° x 50° black
ZX5-60B 60° x 60° black
ZX5-90W 90° x 50° white
ZX5-60W 60° x 60° white
ZX5-90PI 90° x 50° black X
ZX5-60PI 60° x 60° black X
ZX5-60 ZX5-90
(B, W & PI Versions) (B, W & PI Versions)
Frequency range (+/-3 dB) 52-16 kHz
Recommended Hi-Pass Frequency 36 Hz
Axial sensitivity SPL 1W/1m (Biamp mode) 99 dB
Maximum SPL (calc.); full space 133 dB
Long Term Power Handling 600 W
Short Term Power Handling 2,400 W
(Peak), low Z
Coverage, H° x V°
60° x 60° 90° x 50°
(nominal -6 dB)
LF transducer
15" DVX-3150
HF transducer 2" ND2
Crossover Frequencies 1.500 Hz
Nominal Impedance 8 Ohms
Minimum Impedance 6.5 Ohms
Input Connections 2 x four-pin Speakon / glandnut SJO cable (PI versions)
Dimensions (H x W at front x D) 692 x 446 x 411 mm (27.24” x 17.56” x 16.18”)
Net Weight 22.5 kg (49.6 lbs.)
*
