The RE90 series brings the famous sound performance of EV´s
legendary RE series to fixed installations. EV´s RE90 micro-
phones are the most natural-sounding microphones on the
market for public speaking, etc. and as a matter of course for
professional theatrical productions. Ergonomically and archi-
tecturally designed, EV has married functionality with aes-
thetics making RE series the traditional favorite among sound
contractors, architects and sound engineers. RE90 micro-
phones are designed for the highest-quality applications with

linear frequency response and excellent, high gain-before-
feedback. All microphones guarantee a uniform polar pattern
across the range, high sensitivity, low self-noise and provide a
transformerless output device. The high-quality pre-amps are
highly-resistant to electrical noise and radio frequency inter-
ference (RFI). RE90 L and RE90 H have a external pre-amp
housing into the XLR connector. Gooseneck microphones
have an all-metal construction to substantially reduce noise
from stray magnetic fields and RFI.

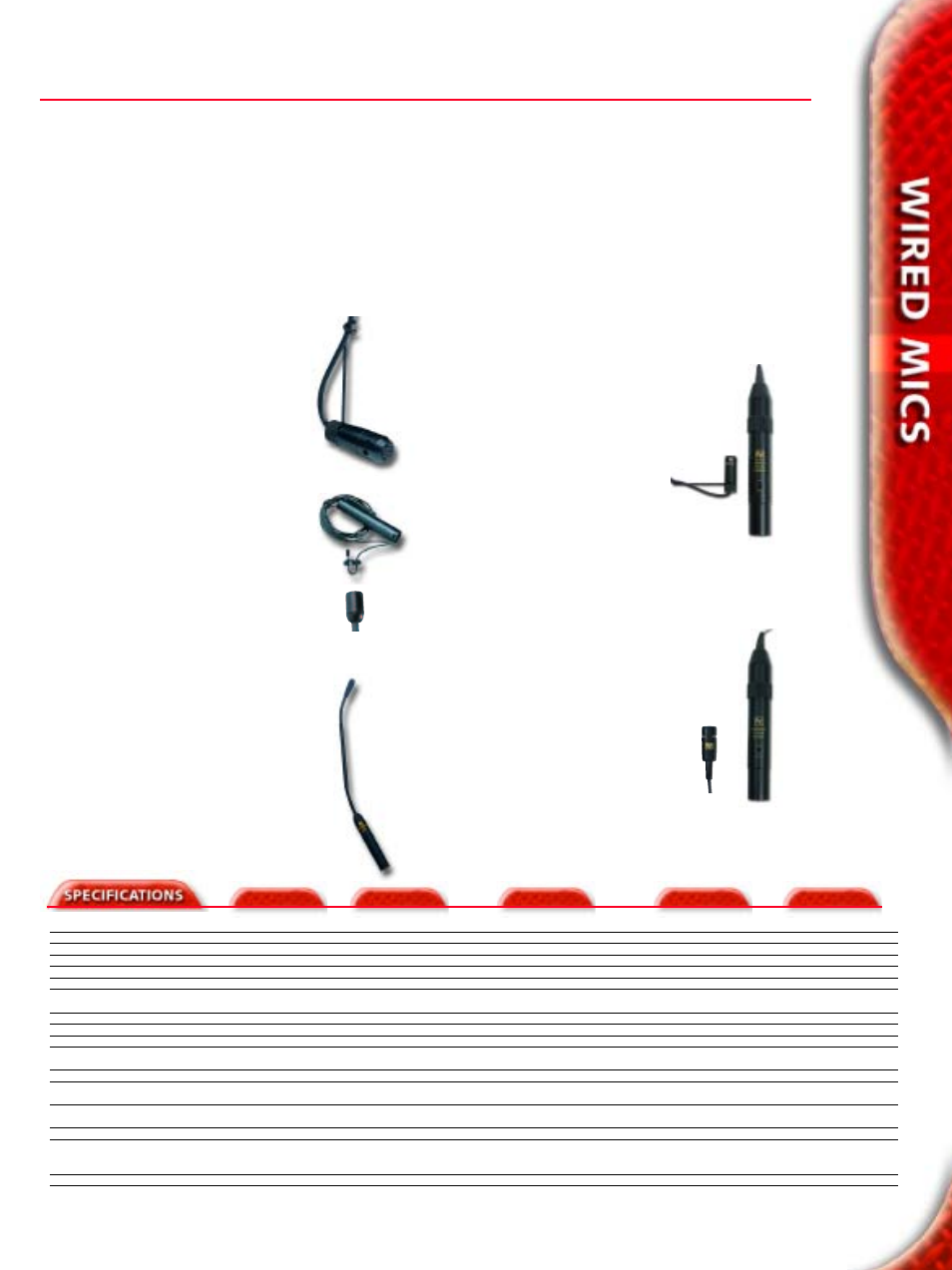

RE90 H

(Black)

RE90 HW

(White)

• Hanging microphone
• External Pre-amp
• Very uniform polar pattern
• Includes an installation guide
• Comes with accessories

RE90 L

• Lavalier microphone
• Sub-miniature capsule design
• Capsule provides superior EMI/RFI shielding
• Very light-weight yet extremely reliable
• External pre-amp with very low

current consumption

• Comes with accessories

Actual

size

RE90 P-12

(281mm)

RE90 P-18

(443mm)

• Gooseneck podium microphone
• Also perfect for instruments on-stage, such as

acoustic guitar or choir

• Uniform frequency response and polar pattern
• Strutted (yet flexible) ultra-thin gooseneck
• Integrated two-stage pop-filter
• Comes with accessories

RE92 H

(Black)

RE92 HW

(White)

• Hanging microphone
• External Pre-amp
• Very uniform polar pattern
• Includes an installation guide
• Comes with accessories

RE92 L

• Premium quality lavalier

cardioid microphone

• Sub-miniature capsule design
• Capsule provides superior EMI/RFI shielding
• Very light-weight yet extremely reliable
• External pre-amp with very low

current consumption

• Comes with accessories

Wired Microphones

RE90 H

RE90 L

RE90 P

RE92 H

RE92 L

Element

Back electret condenser

Polar pattern

Cardioid

Omnidirectional

Cardioid

Impedance, Low-Z balanced

200 ohms

100 ohms

200 ohms

250 ohms

Frequency Response (-3 dB)

75 - 15,000 Hz

50 - 18,000 Hz

70 - 15,000 Hz

40 - 20,000 Hz

Power Level (0dB=1 m W/Pascal) at 1,000 Hz

- 30 dB

- 34 dB

- 43 dB

Open Circuit Voltage (at 1,000 Hz)

27 mV/Pascal

12.6 mV/Pascal

4.5 mV/Pascal

5,6mV

Equivalent Noise (0 dB=20 micropascal)

< 25 dB SPL

< 29 dB SPL

< 28 dB SPL

< 30 dB SPL (A-weighted)

A-weighted
Maximum SPL (1% distortion, 1,000 Hz)

120 dB

130 dB

>135 dB

Power requirement (Phantom power)

9 - 52 VDC

24 to 52 Volt Phantom Power

Current Consumption

2.0 mA

1.0 mA

2.5 mA

6 mA

Specials

external pre-amp

transformerless

external preamp

output device

Case Material

Steel

Polycarbonate resin

Steel

Finish

Low-gloss black

Nonreflecting black

nonreflective black

or white

Included accessories

760 cm braided cable

Gig bag

Windscreen, double-sided

mounting hardware

flexible cable

tape

Connector type

3-pin XLR

Dimension (length x diameter)

37 x 13 mm

6 x 5 mm

P-12: 281 x 6.4 mm P-18: 443 x 6.4 mm

32.1 x 10.5mm

24.1 x 10.5mm

1.46” x 0.51”

0.24” x 0.20”

P-12: 11.06” x 0.25” P-18: 17.44” x 0.25”

1.26” x 0.41”

0.95” x 0.41”

(gooseneck)

(mic only)

Weight net

157 g (0.35 lbs.)

34 g (0.07 lbs)

P-12: 400 g (0.88 lbs.) P-18: 528 g (1.16 lbs.)

240 g (0.53lbs.) total

160 g (0.35 lbs.) total
