Subwoofers offer a variety of low-frequency solutions for
general fixed installation or additional LF supplementation in
existing installations. Low-frequency systems have f3s (the
point at which response is -3 dB down) as low as 40 Hz. In
general, response below 40 Hz is required for theatrical
effects, full reproduction of pipe organs, and some special effects in contemporary music such as synthesizers and
down-tuned bass guitars. The TL 880D is especially suited
for this special type of application.
Note: TL subwoofers have unprotected fronts and woofers,
and should be used in inaccessible areas only.

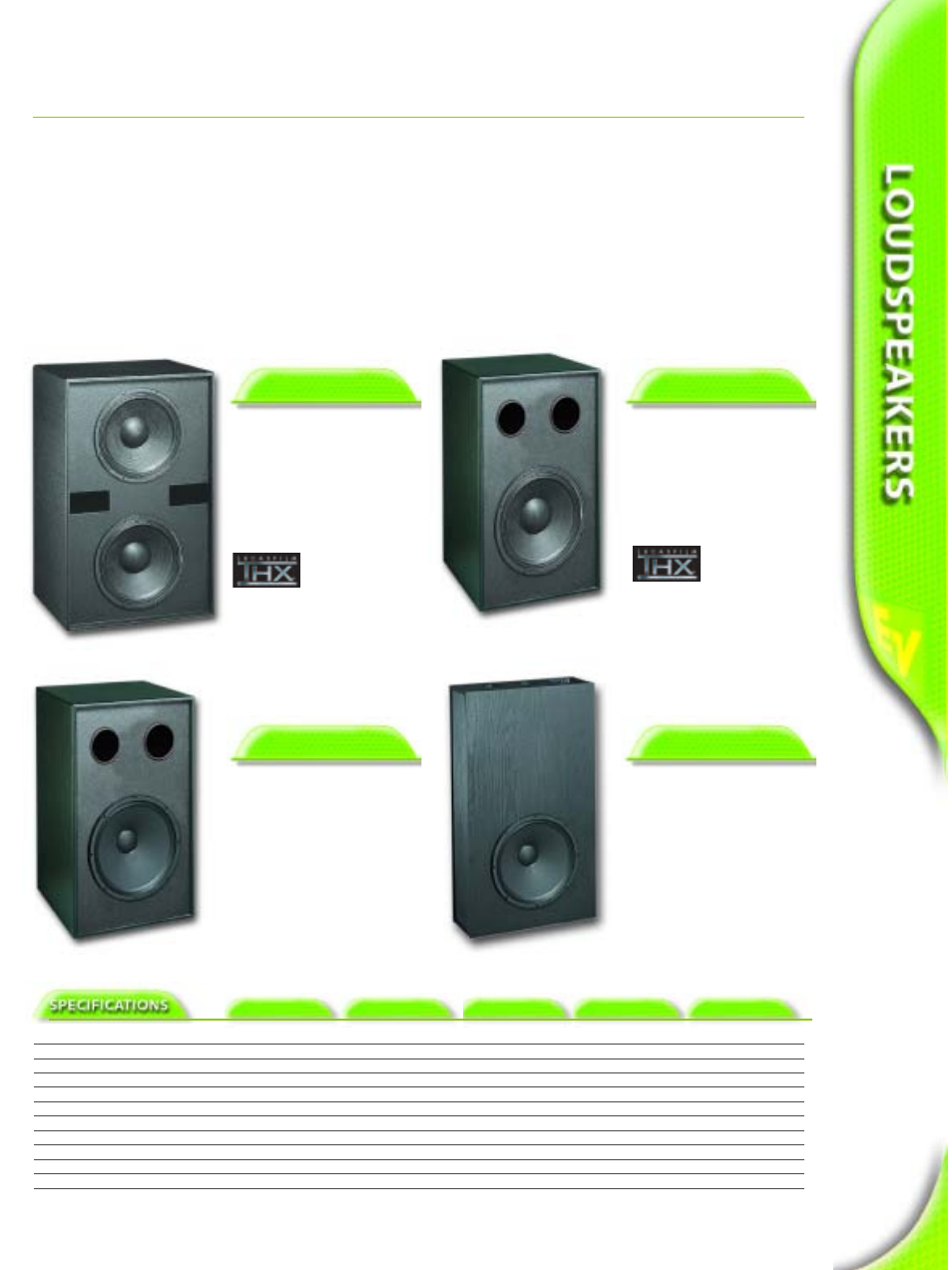

TL18-1ES
• Low-frequency subwoofer
• Direct radiating vented design
• 38 Hz low end for rich bass
• Ultrathin depth
TL440
• Very-low-frequency subwoofer
• Direct radiating vented design
• High acoustic output featuring
single EVX180B woofer
• THX® approved
TL880D
• Very-low-frequency subwoofer
• Direct radiating vented design
• High acoustic output to below
20 Hz (-10 dB) allows real
low end effects
• THX® approved
TL440M
• Very-low-frequency subwoofer
• Direct radiating vented design
Cinema Systems
TL880D TL880DM TL440 TL440M TL18-1ES
Frequency Range 23 Hz - 1.8 kHz 27 Hz - 1.8 kHz 33 Hz• - 3.2 kHz 38 Hz• - 3.2 kHz 38 Hz - 2.0kHz
Sensitivity, 1W/1m (full/half-space) 99 / 105 dB 99 / 105 dB 96 / 102 dB 96 / 102 dB 96 / 102 dB
Max.SPL/1m (calc.) (ave./peak) 136 / 162 dB 133 / 137 dB 130 / 136 dB 128 / 133 dB 128 / 134 dB
Long-term Power Handling 1.200 W 800 W 600 W 350 W 400W
Short-term Power Handling 4.800 W 3.200 W 2.400 W 1.500 W 1.600 W
Coverage (<125 Hz) omnidirectional omnidirectional omnidirectional omnidirectional omnidirectional
LF driver 2 x EVX180B 2 x EVS-18S 1 x EVX 180B EV518S 1 x DL18-MT
Nominal Impedance 4 Ohms 4 Ohms 8 Ohms 8 Ohms 8 Ohms
Dimensions (Height/Width/Depth) in mm 1210 / 762 / 605 1207 / 762 / 605 1003 / 572 / 559 1003 / 572 / 559 1193 / 680 / 254
Weight (net) 72,6kg 70,8kg 49 kg 49 kg 43kg
•) 24Hz in step-down mode
Subwoofers
(not shown)
