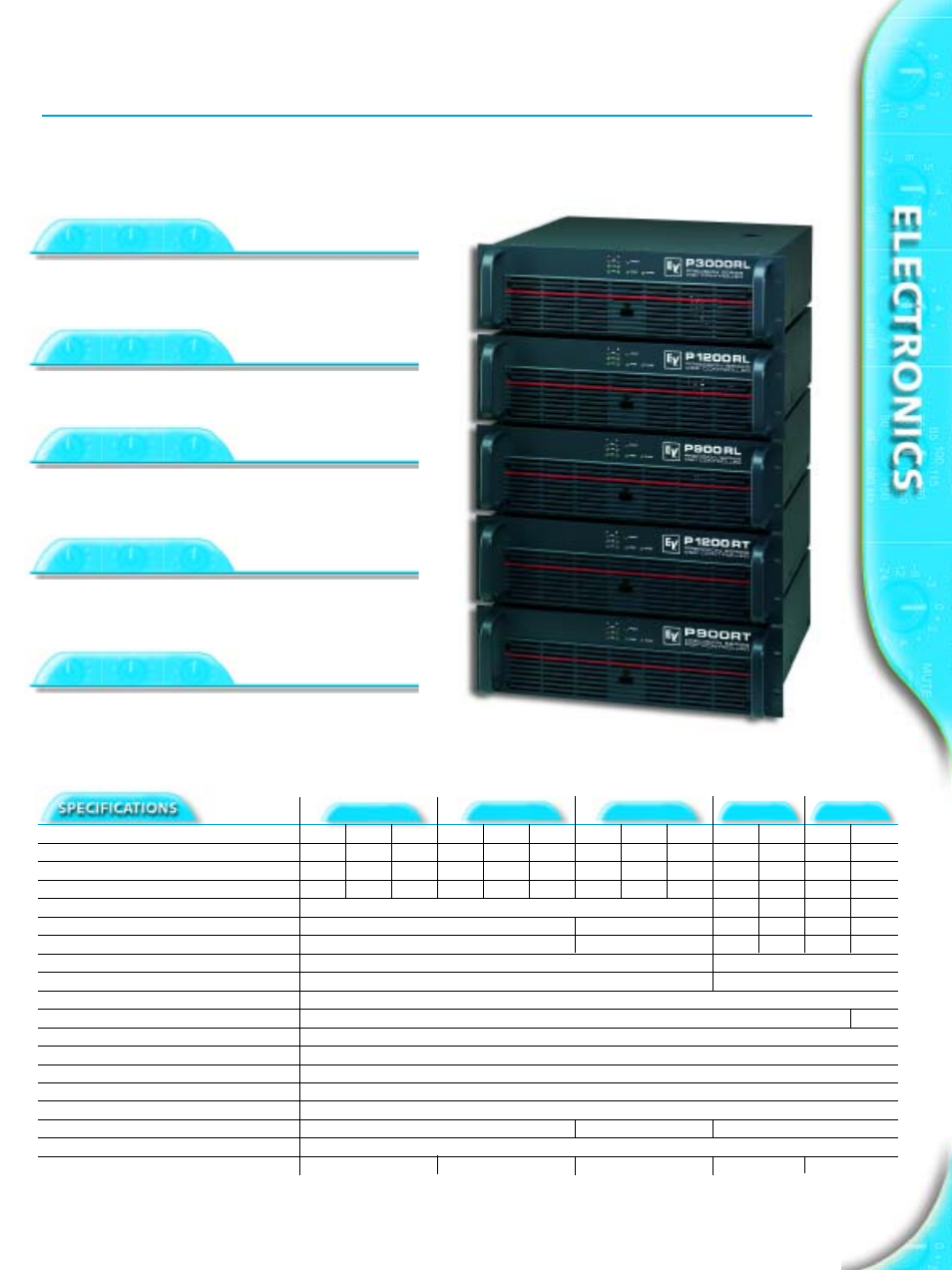

P3000 RL

The flagship, with 2 x 1300 watts into 4 ohms and 2 x 1800 watts
into 2 ohms: the digitally controlled version of the legendary
P3000 amplifier. Speaker outputs on Speakon NL4 connectors.

P1200 RL

The universal, with 2 x 600 watts into 4 ohms and 2 x 850 watts into
2 Ohms. Speaker ouputs on barrier strip.

P1200 RT

High-impedance output for 100/70V-lines with 2 x 590 watts.
The dynamic limiter circuit includes the output transformer and lim-
its THD to 1% maximum. Speaker outputs on barrier strip.

P900 RL

Featuring 2 x 450 watts into 4 and 2 x 650 watts into 2 ohms the
P900RL is dedicated for HF drive in multi-way systems. Speaker
outputs on barrier strip.

P900 RT

High-impedance output for 100/70V-lines with 2 x 410 watts.
Speaker output on barrier strip.

P900 RL

P1200 RL

P3000 RL

P900 RT

P1200 RT

Ω

100V

70 V

100V

70 V

Continous Output Power (1 kHz, THD 1%)

280 W

450 W

650 W

380 W

600 W

850 W

850 W 1300 W 1800 W 410 W

400 W

590 W

580 W

Rated Output Power (20 Hz-20 kHz, THD <0,2%)

230 W

350 W

300 W

500 W

750 W 1200 W

350 W

500 W

Maximum Bridged Output (1 kHz, THD 1%)

900 W 1300 W

1200 w 1700 W

2600 W 3600 W

THD @ Rated Output Power

< 0.05%

<0.1%

<0.2% <0.1% <0.2%

DIM 30

<0.03%

<0.01%

<0.2%

<0.3% <0.2% <0.3%

Intermodulation (SMPTE)

<0.08%

<0.001%

<0.1%

<0.3% <0.1% <0.3%

Signal-to-Noise Ratio

> 105 dB

>100 dB

Frequency Response (-1 dB)

20 Hz - 20 kHz

45 Hz - 20 kHz

Dynamic Audio Limiter

THD

Protections

Hi-Temperature, DC, HF, Back EMF, Peak Current Limiter, Inrush Current Liminter, Power On Delay

Cooling

3(4)-stage fan, front-to-rear cooling

Input Sensivity and Impedance

1.55 V (+6dBu), 20 kOhm, XLR Input

Maximum Input Level

8.7 V (+21 dBu)

Serial Interface

Network: CAN, 2 RJ45 (CAT-5 Cabling), RS-232 for media control systems

Control Logic In- and Outputs

2 x 0V 5V free configurable, Easy-Remote

Loudspeaker Connectors

Barrier Strip

Speakon NL4

Barrier Strip

Dimensions (Width x Height x Depth)

483 x 132.5 x 390 mm (52” x 19” x 15.4”) ( 3 U)

Net Weight

16 kg (35.3 lbs.)

17 kg (37.5 lbs.)

30 kg (66.2 lbs.)

24 kg (53 lbs.)

25 kg (55.1 lbs.)

All measurements both channels driven into 8 ohms unless other specified.

Range of Amplifiers for High and Low Impedance Applications
