33

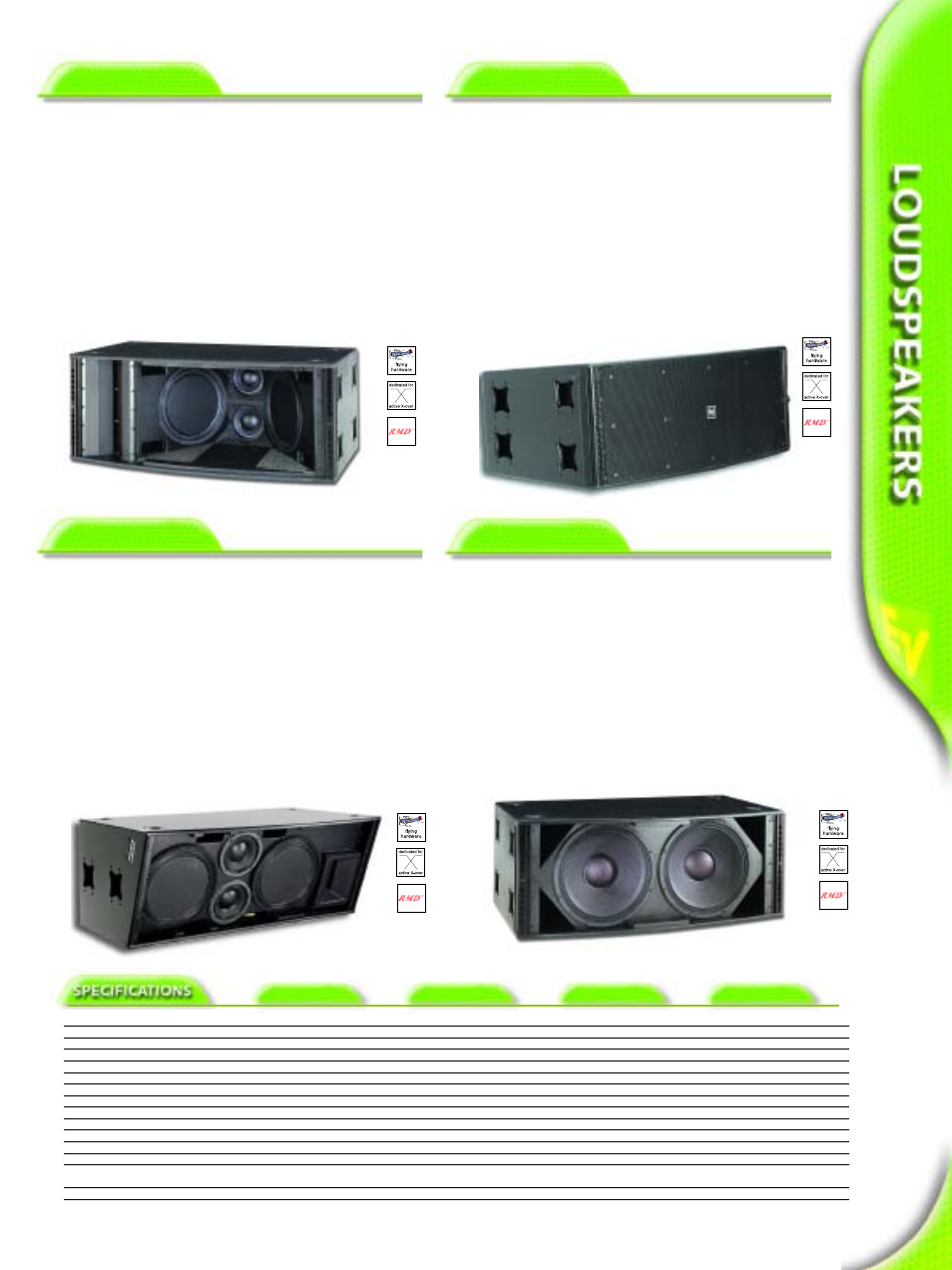

Xvls
• High-output, three-way line-array system
• Rectangular cabinet designed for upper section of linear array
• 90° horizontal coverage pattern ideal for long-throw
applications
• New EV ® Hydra™ time-synchronized HF vertical plane-wave
generator provides excellent far-field summing
• Ring Mode Decoupling ® (RMD ® ) provides level-
independent fidelity, greater midbass clarity, and high
frequency accuracy
• Proprietary rigging allows for rapid venue load-in and
load-out
Xfil1/Xfil2
• High-output, two-way line-array system
• Downfill system designed to complement a line array of
Xvls and Xvlt systems for near-field assignment with 120º
horizontal coverage
• Wide 40° vertical coverage with voicing similar to other
X-Line™ models for smooth transition from near-field
to mid-field
• Ring Mode Decoupling ® (RMD ® ) provides level-independent
fidelity, greater midbass clarity, and high-frequency accuracy
• Proprietary rigging allows for rapid venue load-in and load-out
• Mirror-imaged Xfil1 and Xfil2 models for left and right sides.
Xvlt
• High-output, three-way line-array system
• Five-degree trapezoidal cabinet design for lower "J" section
of linear array
• 120° horizontal coverage typical for medium-throw
assignment
• New EV Hydra™ time-synchronized HF vertical plane wave
generator provides excellent far-field summing
• Ring Mode Decoupling ® (RMD ® ) provides level-independent
fidelity, greater midbass clarity, and high frequency accuracy
• Proprietary rigging allows for rapid venue load-in and
load-out
Xsub/f
• High-output, line-array subwoofer system
• Rectangular cabinet with footprint identical to other X-Line
systems
• Can be flown or ground-stacked with non-flying version
• Proprietary rigging allows for rapid venue load-in and
load-out
Xvls Xvlt Xfil1/Xfil2 Xsub/f
Frequency range (-3 dB) 40 Hz–16 kHz 40 Hz–16 kHz 40 Hz–16 kHz 33–400 Hz
Recommended high-pass frequency 50 Hz 50 Hz 50 Hz 33 Hz
Sensitivity (SPL 1 W/1 m) (LF/MB/HF) 101 dB/111 dB/118 dB 101 dB/111 dB/117 dB 101 dB/107 dB/112 dB 100/106 dB*
Max. SPL/1m (calc.) (LF/MB/HF) 132 dB/139 dB/142 dB 132 dB/139 dB/141 dB 132 dB/135 dB/134 dB 131/137 dB*
Long-term power handling (LF/MB/HF) 1,200 W/600 W/225 W 1,200 W/600 W/225 W 1,200 W/600 W/150 W 1,200 W
Short-term power handling (LF/MB/HF) 4,800 W/2,400 W/900 W 4,800 W/2,400 W/900 W 4,800 W/2,400 W/600 W 4,800 W
Coverage (H° x V°) 90° x 5° 120° x 9° 120° x 40° 200° x 325°
LF driver 2 x EVX-155 Plate 2 x EVX-155 Plate 2 x EVX-155 Plate 2 x EVX-180B
MB driver 2 x ND08 2 x ND08 2 x ND08 —
HF driver 3 x ND6 3 x ND6 2 x ND6 —
Crossover frequencies 220 Hz/1,250 Hz 220 Hz/1,250 Hz 220 Hz/1,250 Hz 80 Hz
Nominal impedance 2 x 8 Ω /8 Ω /5.3 Ω 2 x 8 Ω /8 Ω /5.3 Ω 2 x 8 Ω /8 Ω /8 Ω 2 x 8 Ω
Input connections 2 Neutrik ® NL8 2 Neutrik ® NL8 2 Neutrik ® NL8 2 Neutrik ® NL8
Dimensions (H [front/rear] x W x D) 494.3/494.3 x 1244.6 x 740.4 mm 494.3/429.7 x 1244.6 x 740.4 mm 494.3/429.7 x 1244.6 x 740.4 mm 494.3/494.3 x 1244.6 x 740.4 mm
19.46"/19.46" x 49" x 29.15" 19.46"/16.92" x 49" x 29.15" 19.46"/16.92" x 49" x 29.15" 19.46"/19.46" x 49" x 29.15"
Net weight 117 kg (257 lbs.) 115 kg (253 lbs.) 115 kg (253 lbs.) 92 kg (202 lbs.)
* 1/2-space
