11

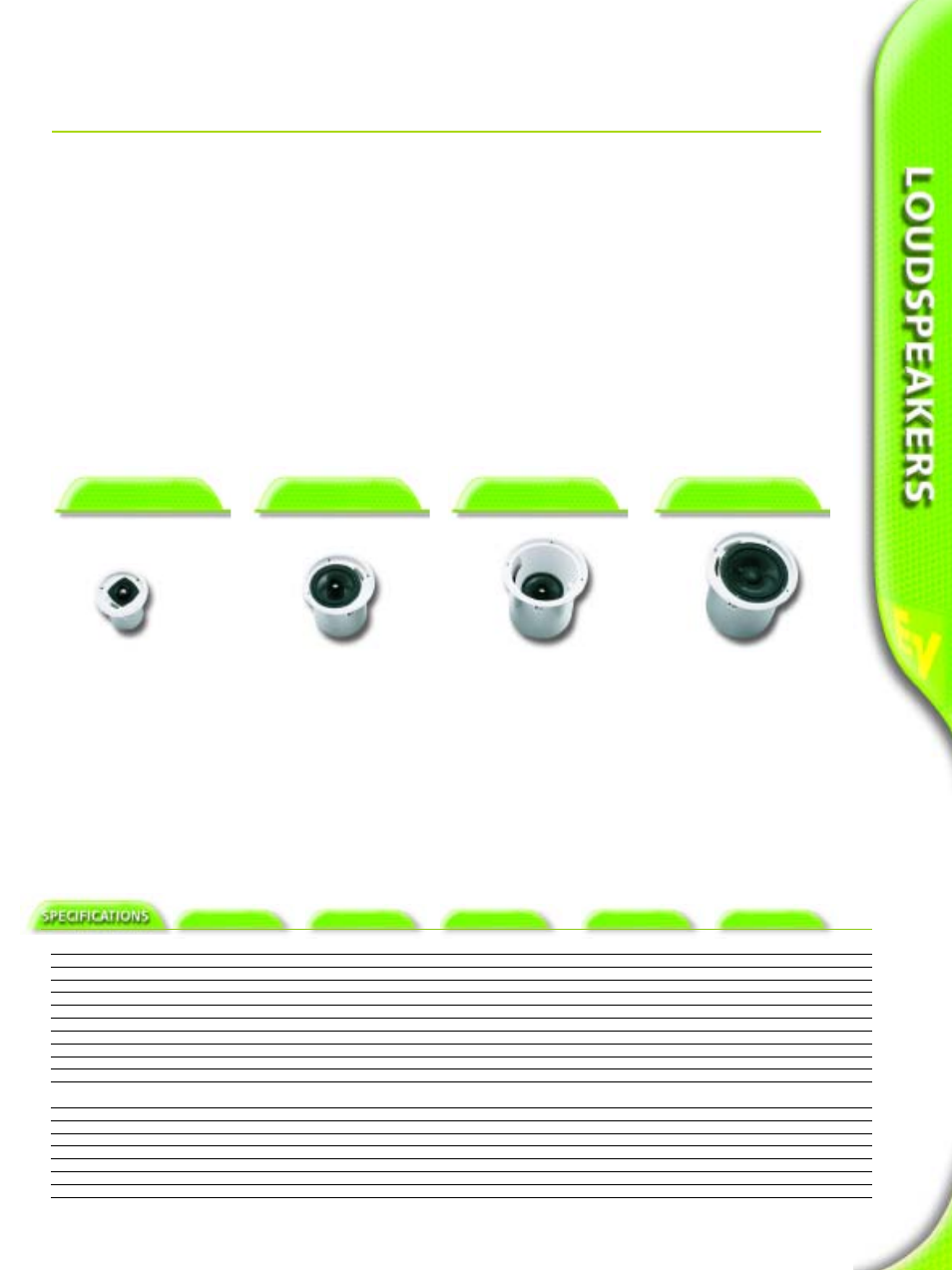

EVID Ceiling Speakers
Perfect for conventional rooms.
Excellent bandwidth in an esthetical-
ly, unobtrusive installation profile. Its
compact design fits in tight areas.
Fully rated for use in air handling
spaces. Its 4” woofer and waveguide
coupled titanium coated dome
tweeter give smooth, wide frequen-
cy response. The enclosure is ported
and tuned to provide surprising bass
response in such a compact package.
Features an easy 3-point mounting
system for quick installations. Comes
complete with mounting support
ring and tile rails. No additional
accessories needed for most installa-
tions.
EVID C4.2
Never before has a ceiling speaker
system delivered such a full range
punch. Its specially tuned enclosure
and 8” woofer provide amazing bass
response. The 1” waveguide coupled
tweeter give smooth controlled cov-
erage out to 18 kHz. Perfect for
installations where a flush-mount
design is desired but demand for high
quality audio exists. Features a 4-
point mounting system which makes
installations fast and easy. Comes
complete with mounting support ring
and tile rails. No additional acces-
sories needed for most installations.
A low-profile version (LP) is available
for ceiling spaces with tight clear-
ance.
EVID C8.2
The EVID C8.2HC is ideal for high cei-
ling and reverberant “problem” rooms.
Its exclusive ported, waveguide-coupled
8” driver provides for excellent intelli-
gibility and definition. The C8.2HC’s
patent pending design provides great
coverage control throughout the voice
range and above. No other speaker
system provides the combination of
excellent pattern control, wide band-
width, high power handling and com-
pact design like the C8.2HC. Features
a secure 4-point mounting system
which makes installations fast and
easy. Comes complete with mounting
support ring and tile rails. No addition-
al accessories needed for most installa-
tions.
EVID C8.2HC
The C10.1 packs a large 10” subwoofer
in a tuned high-performance enclosure
to give amazing low frequency per-
formance down to 45Hz! The C10.1 is
one of the only quick-mount ceiling
TRUE subwoofers available on the
market. Flexible installation and pow-
erful low-end performance make this
an ideal companion to any EVID model.
Features a secure 4-point mounting
system which makes installations fast
and easy. Comes complete with mount-
ing support ring and tile rails. No addi-
tional accessories needed for most
installations.
EVID C10.1
The Intelligible Choice
No matter what the installation calls for, the new EVID ceiling
speaker line can fill the need. Each model is unique and
designed to meet the toughest “problem” job specifications.
Sonically superior and esthetically pleasing, the EVID ceiling
speaker line has no match. From the compact, powerful C4.2
to the exclusive waveguide-coupled design of the C8.2HC
(patent pending) for high-ceiling environments; the EVID cei-
ling line will solve any installation requirement. All models
meet NFPA/UL requirements for air handling spaces so they
will be approved for any specification including emergency
notification applications. The EVID ceiling speaker line was
designed with the contractor and listener in mind. Great
sound, simple installation, and exceptional value are all part of
every model.
The key features
• Acoustically matched to the EVID surface mount
speaker line
• Meets UL and NFPA regulations for air handling spaces
• Regardless of the acoustic and esthetic requirements
there is an EVID ceiling monitor system to fit the require-
ments
• Solves any installation challenge
• Either 70V/100V or 8 ohm operation is standard on
every model of the EVID ceiling speaker line. No need
to buy or stock special versions!
• All installation accessories commonly needed for most
jobs are included! No expensive add-ons are necessary!
EVID C4.2 EVID C8.2LP EVID C8.2 EVID C8.2HC EVID C10.1
LF Transducer 4” 8” 8” 8” 10”
Polyprolylene cone Polyprolylene cone Polyprolylene cone Polyprolylene cone Polyprolylene cone
+Waveguide
HF Transducer 19 mm (0.75”) 25 mm (1”) 25 mm (1”) 25 mm (1”)
Ti Mylar Laminate Dome Ti Mylar Laminate Dome Ti Mylar Laminate Dome Ti Mylar Laminate Dome
Frequency Response (-10 dB) 65 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz 45 - 180 Hz
Power Handling(8 Ohms) 80 W (overload protected) 100 W (overload protected) 100 W (overload protected) 100 W (overload protected) 150 W
Coverage Pattern 130° conical 110° conical 110° conical 75° conical (@ >1 kHz) 180°
Sensitivity (1W/1m) 86 dB 91 dB 91 dB 93 dB 94 dB
Input Configuration 8 Ohms, 70 V, 100 V 8 Ohms, 70 V, 100 V 8 Ohms, 70 V, 100 V 8 Ohms, 70 V, 100 V 8 Ohms, 70 V, 100 V
Transformer Power Taps (W) (1.88*), 3.75, 7.5, 15, 30 (1.88*), 3.75, 7.5, 15, 30 (1.88*), 3.75, 7.5, 15, 30 (7.5*), 15, 30, 60 (7.5*), 15, 30, 60
Dimensions (H x Dia.) 176 x 181mm 178 x 270 mm 255 x 270 mm 303 x 320 mm 303 x 320 mm
6.93” x 7.13” 7.01” x 10.65” 10.04” x 10.63” 11.99” x 12.60” 11.99” x 12.60”
Weight 2.7 kg (6.0 lbs.) 5.0 kg (11.0 lbs.) 5.0 kg (11.0 lbs.) 6.0 kg (13.2 lbs.) 7.0 kg (15.4 lbs.)
Acoustic Design Ported cabinet, internally damped Dual ported cabinet,
Two-Way, inc. passive crossover internally damped
Cabinet Construction Steel enclosure and UL94V-0 rated baffle and bezel
Mounting System Integrated 3-point toggle anchors
Grille Construction Powder-coated steel
Available Colors White (paintable surface)
*70 V only
