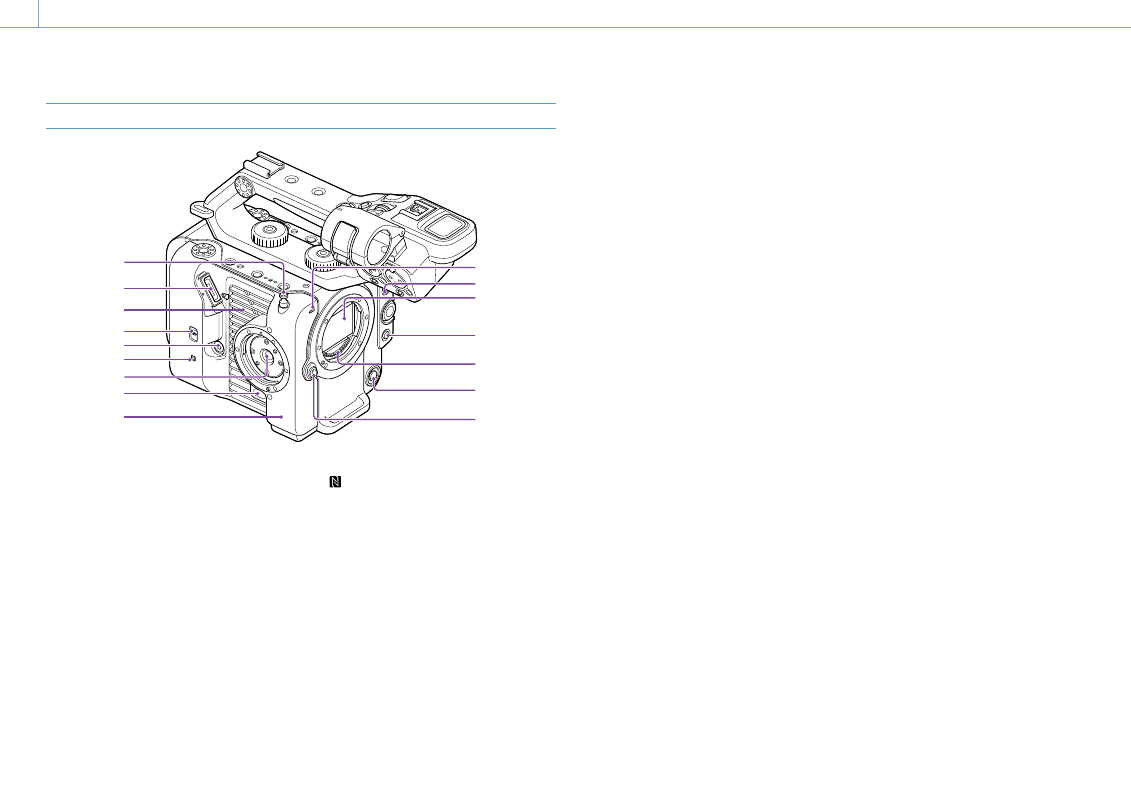

Location and Function of Parts
Left Side and Front Side
11
1
2
4
5
6
7
8
9
12
13
14
3
16
15
10
1. Tape measure hook
The tape measure hook is on the same plane
as the image sensor. To measure the distance
between the camcorder and the subject
accurately, use this hook as a reference point.
You can attach the end of a tape measure to
the hook to measure the distance from the
subject.
2. Viewfinder connector (page 19)
3. Air vent
[Note]
Do not cover the air vent.
4. TC IN/OUT select switch (page 34,
107)
5. Grip remote control connector
(page 20)
6. (N-Mark) (page 56)
ˎ ˎ Touch a smartphone equipped with the
NFC function against the unit to establish a
wireless connection.
Some smartphones that support wireless
pay systems may not support NFC. For
details, refer to the operation manual for the
smartphone.
ˎ ˎ NFC (Near Field Communication) is an
international communications protocol for
wireless communication between objects in
close proximity.
7. Grip remote control attachment
(page 20)
8. Grip remote control release button
(page 20)
9. Wi-Fi antenna
10. Recording/tally lamp (front) (page 34)
Flashes when the remaining capacity on the
recording media or battery is low.
11. FOCUS switch (page 37)
12. Image sensor
13. PUSH AUTO FOCUS button (page 40)
14. Lens signal contacts
[Note]
Do not touch directly with your hands.
15. WB SET (white balance set) button
(page 45)
16. Lens release button (page 22)
