2. Preparation: Attaching Devices 21
2

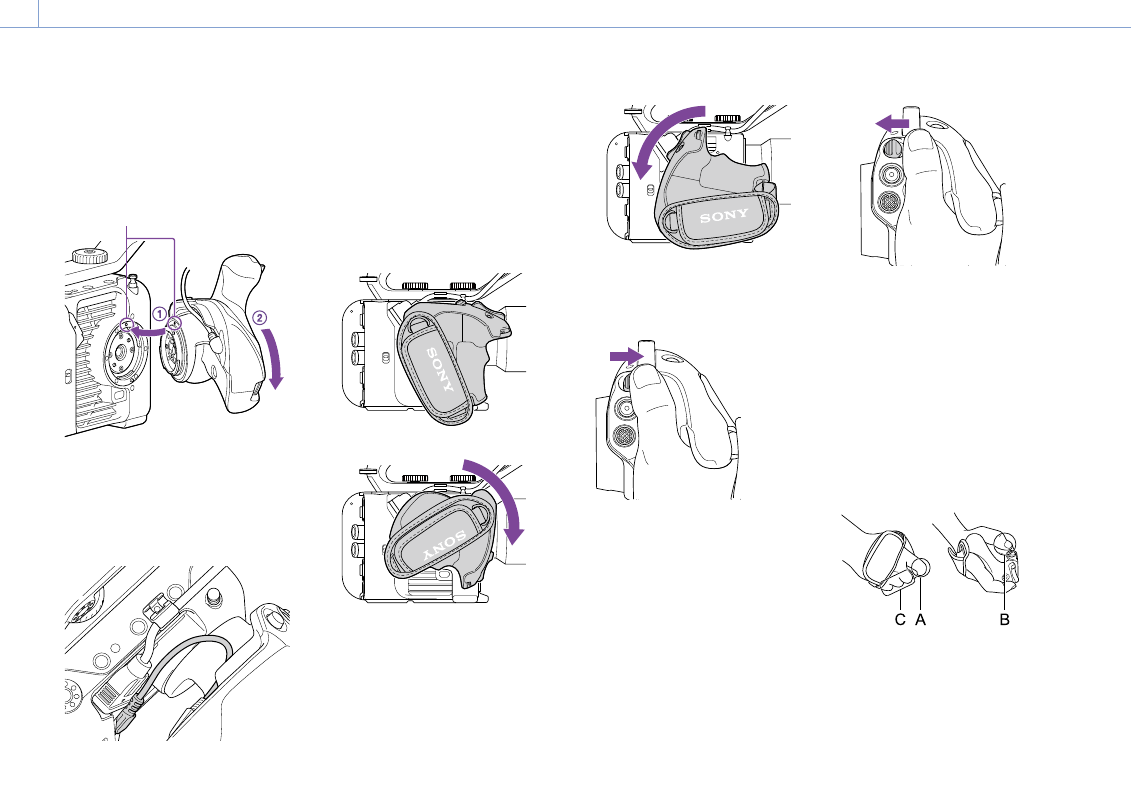

Align the grip remote control attachment
of the camcorder and the mount index
mark on the grip (
 ), attach the grip to
the camcorder, and turn it
counterclockwise slowly (
 ).
A click sound can be heard when it locks
into position.
Index mark
[Note]
If it cannot be attached correctly, re-attach it without
applying excessive force to the grip remote controller or
the camcorder.
3
Insert the cable connected in step 2 under
the slit of the grip remote control as
shown in the diagram.
[Note]
If the cable is not placed under the slit, changing the
angle of the grip attachment may place excessive force
on the cable or the cable may get caught in the rotating
mechanism.
Adjusting the angle of the grip remote
control
You can adjust the angle of the grip remote
control over a range shown in the following
diagram to suit your shooting style.
Standard position
Rotated toward lens (90° max.)
Rotated toward rear (83° max.)
1
Move the grip rotation lever to the
position shown in the diagram and rotate
the grip while pressing the lever.
2
Remove your finger from the grip rotation
lever near the desired position.
3
Move the grip slightly until you hear a
click sound, indicating the grip is secured
in position.
When the grip is secured, the grip
rotation lever returns to the original
position.
[Notes]
ˎ ˎ After changing position, always check that the grip is
securely positioned.
ˎ ˎ You cannot adjust the angle beyond the adjustment
range. Do not use excessive force when rotating the
grip.
Holding the grip (recommended
method)
There are no rules about how to hold the grip,
but the following example shows a way for
easy operation of the grip.
When using the ASSIGN 5 button or multi
selector
A: Operate the grip assignable dial using your
index finger.
B: Operate the multi selector and ASSIGN 5
button using your thumb.
C: Firmly hold the grip using your middle
finger, ring finger, and little finger.
