PLANET WGS3-2820 User Manual
Page 82
User’s Manual of WGS3-2820/WGS3-5220
82

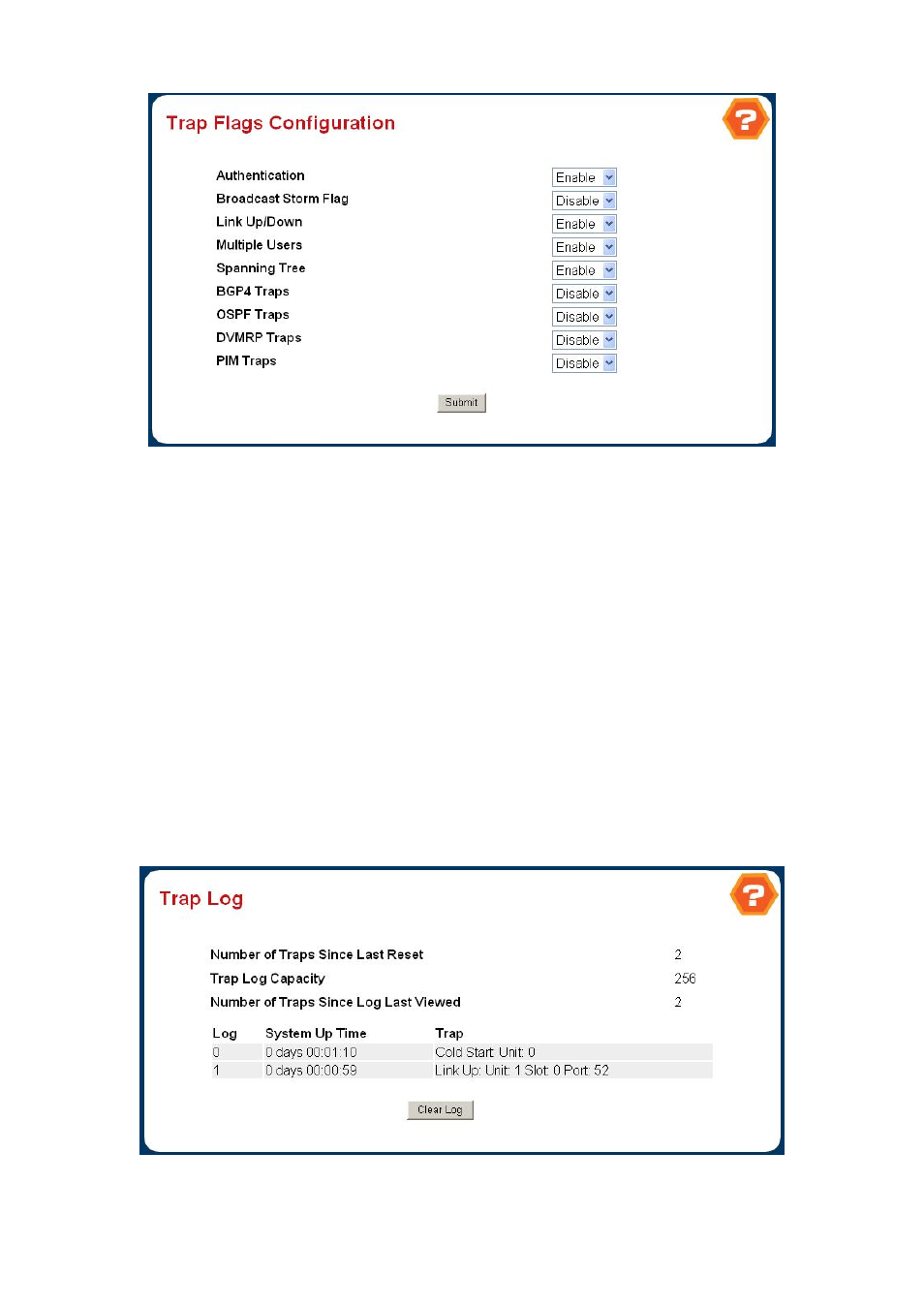

Figure 4-2-48
Trap Flags
4.2.10.2 Trap Log
This screen lists the entries in the trap log. The information can be retrieved as a file by using System Utilities, Upload File from
Switch.
Non-Configurable Data
。
Number of Traps since last reset -
The number of traps that have occurred since the last time the switch was
reset.
。
Number of Traps since log last viewed -
The number of traps that have occurred since the traps were last
displayed. Displaying the traps by any method (terminal interface display, Web display, upload file from switch etc.)
will cause this counter to be cleared to 0.
。
Log -
The sequence number of this trap.
。
System Up Time -
The time at which this trap occurred, expressed in days, hours, minutes and seconds since the
last reboot of the switch.
。
Trap -
Information identifying the trap.
Figure 4-2-49
Trap Log
