User’s Manual of WGS3-2820/WGS3-5220
309
o
Component BSR Expiry Time
- Displays the minimum time remaining before the bootstrap router in the local
domain will be declared.
o
Component CRP Hold Time
- The hold time of the component when it is a candidate Rendezvous Point in the local
domain.
Command Buttons
o
Refresh
- Refresh the data on the screen with the present state of the data in the router.

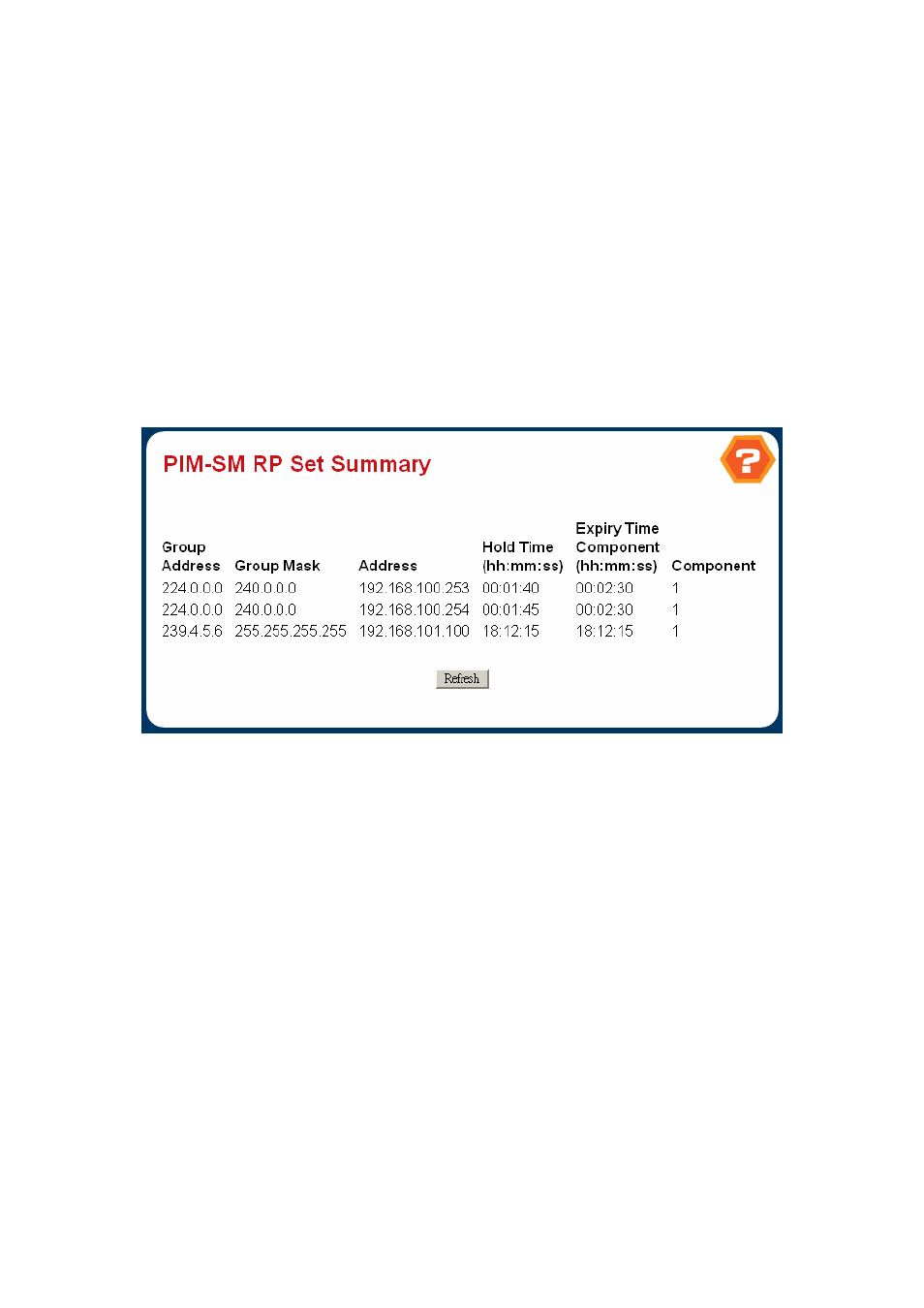

4.7.6.6 PIM-SM RP Set Summary
Figure 4-6-83
PIM-SM RP Set Summary
Non-Configurable Data
o
Group Address
- Displays IP multicast group address.
o
Group Mask
- Displays Multicast group address mask.
o
Address
- Displays IP address of the Candidate-RP.
o
Hold Time
- The holdtime of a Candidate-RP.If the local router is not the BSR, this value is 0.
o
Expiry Time Component
- The minimum time remaining before the Candidate-RP will be declared.
Command Buttons
o
Refresh
- Refresh the data on the screen with the present state of the data in the router.
