User’s Manual of WGS3-2820/WGS3-5220
193
4.5.5 Class of Service
4.5.5.1 Trust Mode Configuration
Use this page to access Class of Service (CoS) Mapping Table Configuration

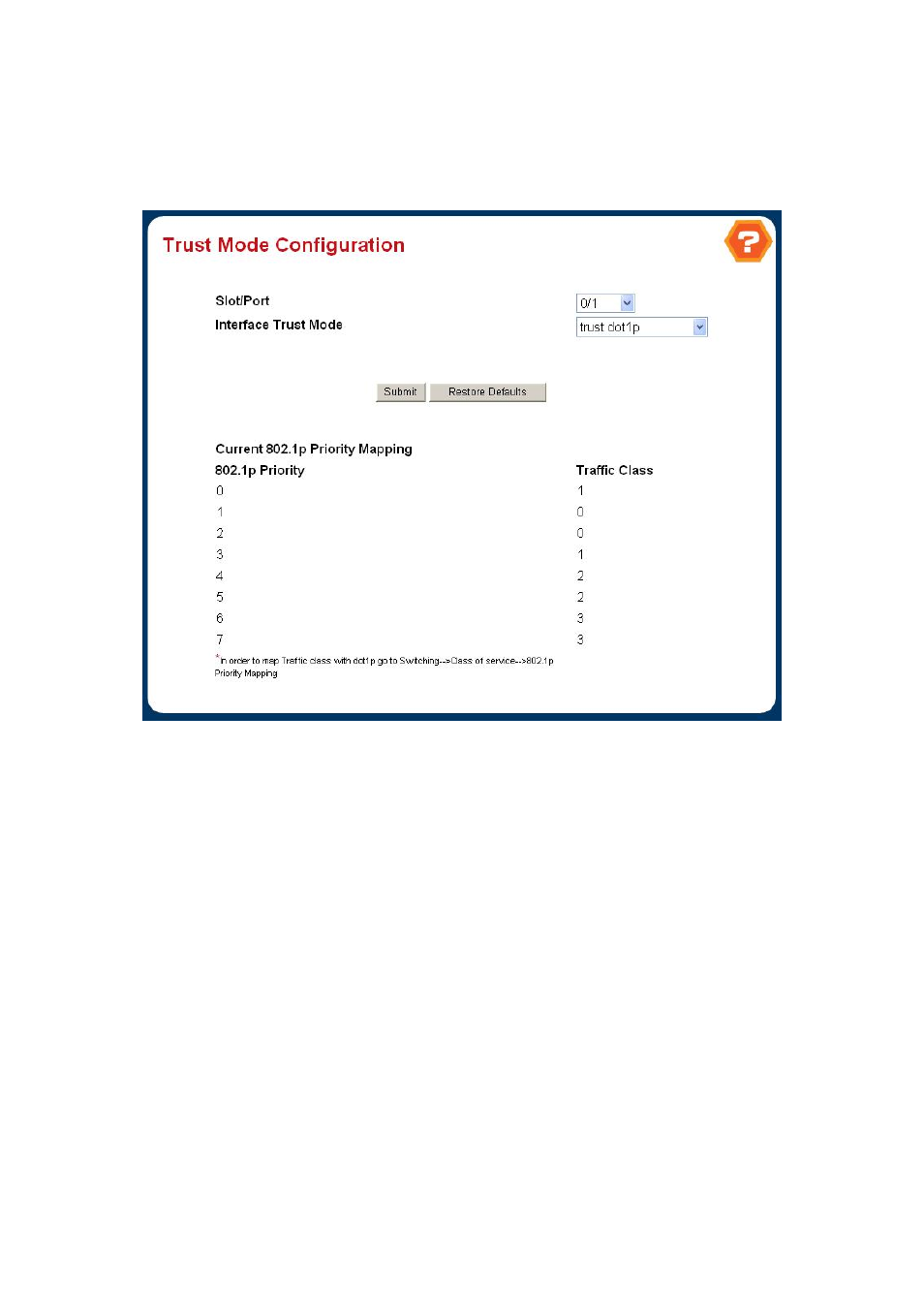

Figure 4-5-26
Trust Mode Configuration
Selection Criteria
。
Slot/Port
- Specifies all CoS configurable interfaces. The option "Global" represents the most recent global
configuration settings.
Configurable Data
。
Interface Trust Mode
- Specifies whether or not to trust a particular packet marking at ingress.
Interface Trust Mode can only be one of the following:
untrusted
trust dot1p
trust ip-precedence
trust ip-dscp
Default value is
trust dot1p.
。
IP Precedence Traffic Class
- Specify which internal traffic class to map the corresponding IP Precedence value.
Valid Range is (0 to 7) .
