Page 114
GT 600 / 601 Engineer’s Reference Guide

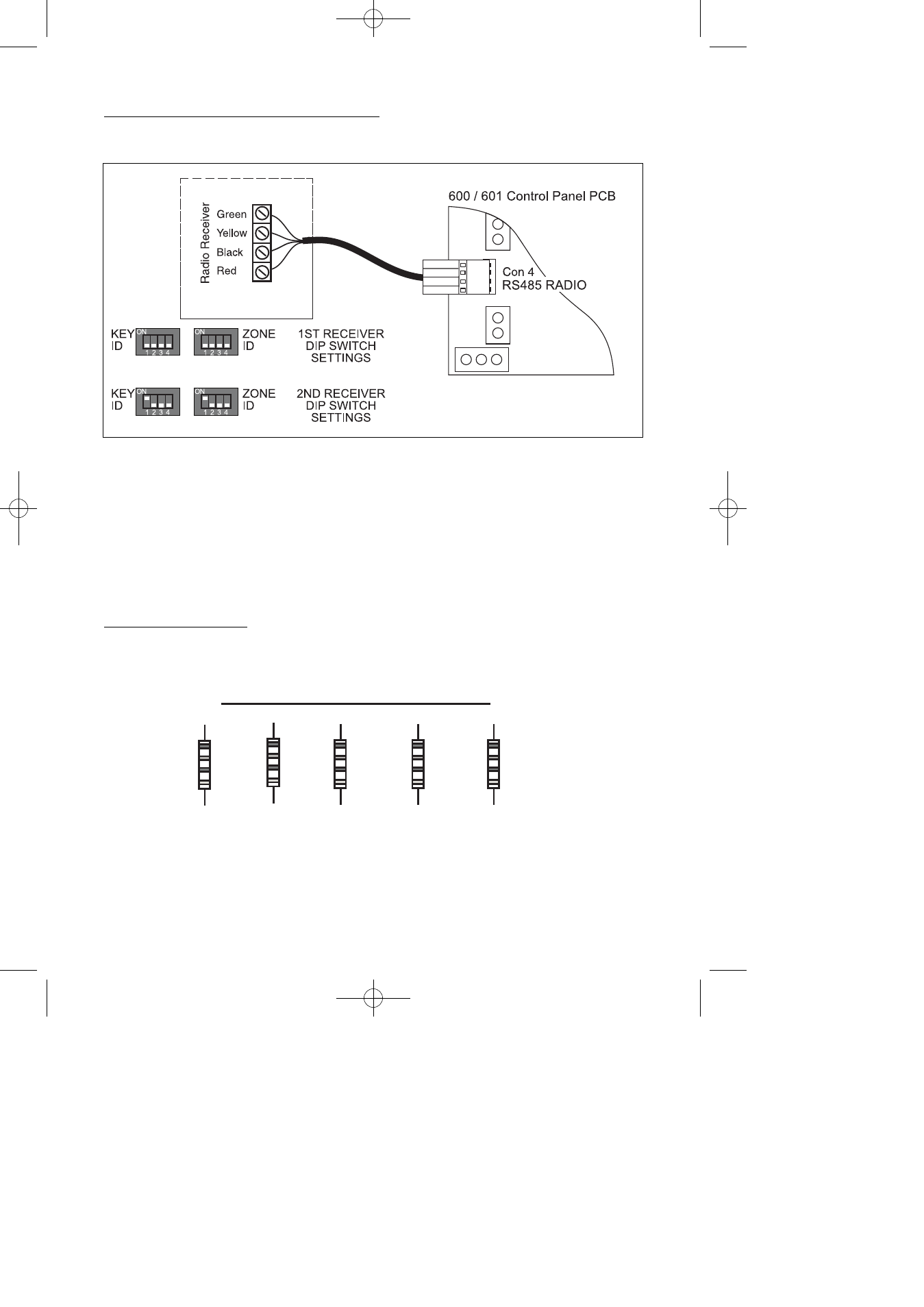

Radio Expander Wiring & Switch Settings
Fig 16.
Connect cable between Con 4 on the 600 / 601 PCB and the Radio Receiver.
Each receiver has two banks of switches marked as Key ID and Zone ID.
For Receiver 1, all the switches must be in the OFF position.
For Receiver 2, switch 1 on the Key ID and the Zone ID banks must be in the ON
position.
Note: Move switches before applying power to the Receiver.
Resistor Colour Code
Fig 17
Use Cable
1CB 6047
Blue
Grey
Red
Brown
6K8
Brown
Blue
Orange
Brown
16K
Red
Violet
Orange
Brown
27K
Yellow
Violet
Red
Brown
4K7
R E S I S T O R C O L O U R C O D E S
Brown
Red
Orange
Brown
12K
