GT 600 / 601 Engineer’s Reference Guide
ID Expander Detector Wiring
One ID Expander Card may be fitted to the
GT 600 control panel giving 8 panel zones
plus up to 30 ID zones using industry standard ID Biscuits or ID Detectors. ID zones
numbers are 21 through to 50. Two ID Expander Cards may be fitted to the
GT 601
Control Panel. The 2nd ID card will be zones 51 - 80.

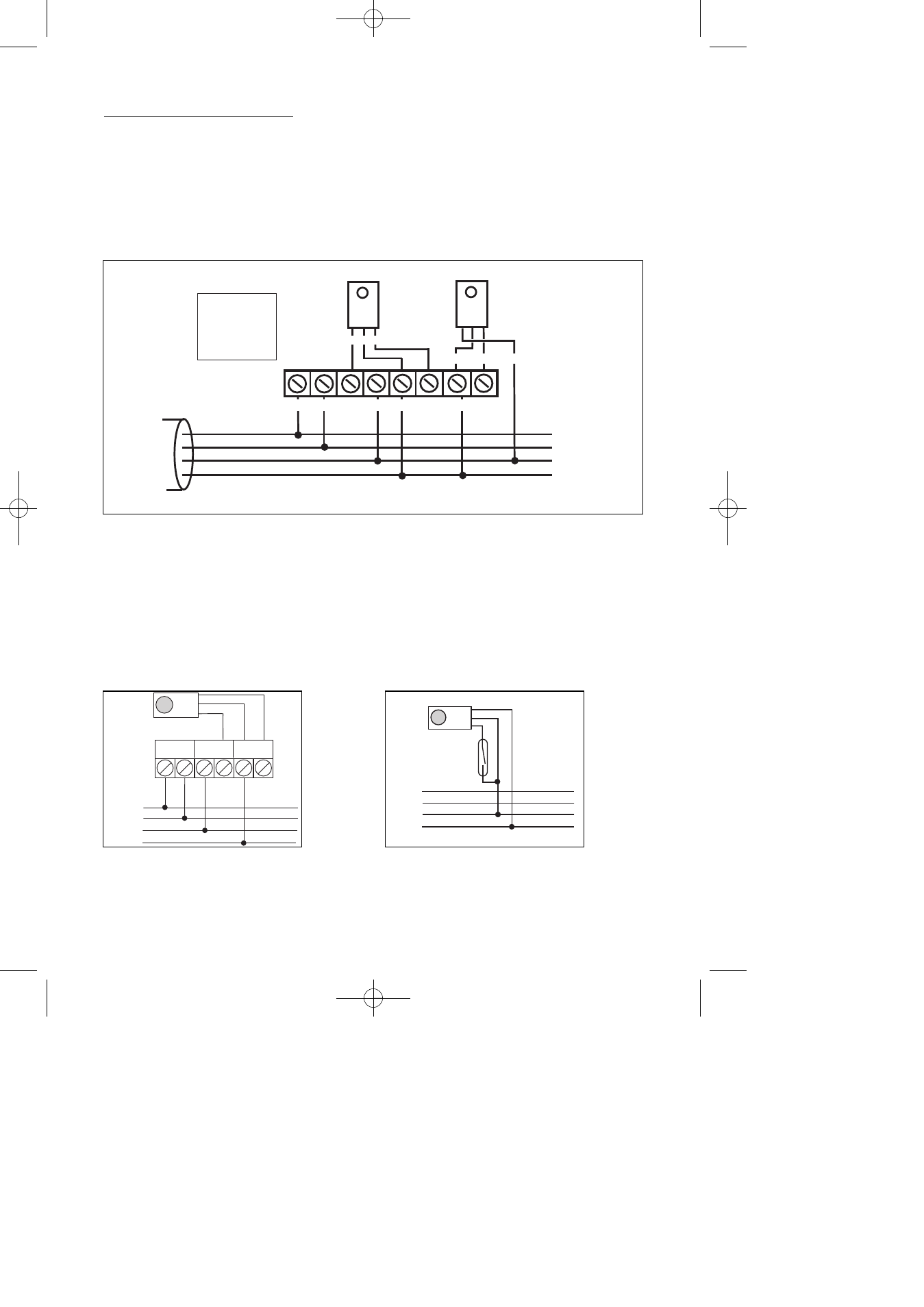

Typical wiring for ID Biscuits is shown below.
Fig 12.
Fig 13.
Fig 14.
Note: For ID pairing, biscuit numbers MUST be in sequence...
Example: PIR1 = Biscuits 1& 2, PIR2 = Biscuits 3 & 4 etc...
+
-
TAMPER
ALARM
Supply+
Supply-
L+
L-
White
Blue
Yellow
ID Biscuit
Detector Using Wired Biscuit
Yellow
Blue
White
Reed Switch
(PA / Contact)
Supply+
Supply-
L-
L+
PA Using Wired Biscuit
Red +12V
Black 0V
Blue > ID-
Yellow > ID +
Y B W
B
W
Y
Y = Yellow
B = Blue
W = White
Key -
+ - Tamper Alarm Fault/Mask
