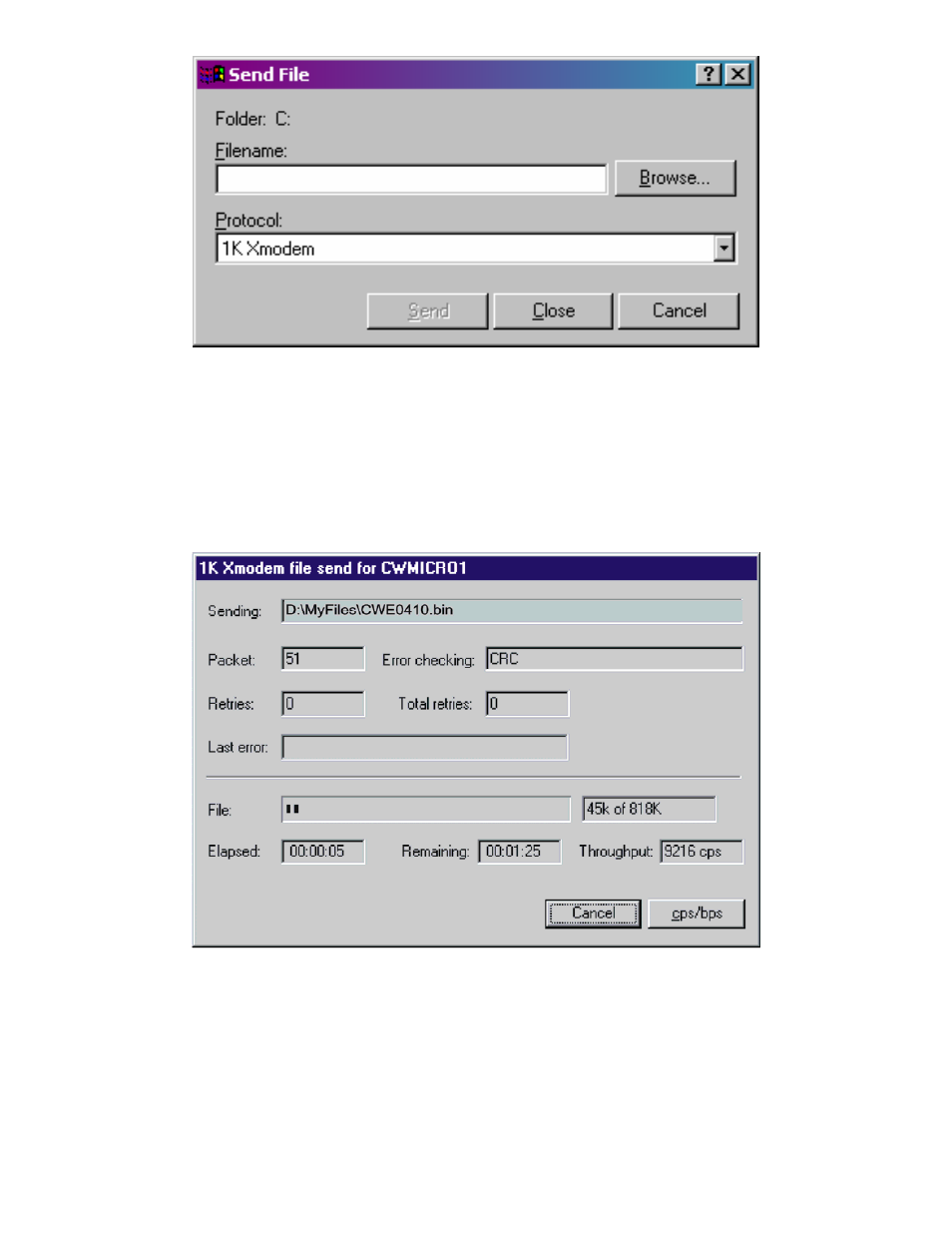

Figure 2-24 - HyperTerminal Flash Download (Send File Dialog Box)
6. Close the HyperTerminal program. The null modem cable connected between the
ControlWave XFC and the PC can be removed if desired.
7. Set CPU Switch (SW1) for ‘Local Mode,’ i.e., set SW1-9 OFF and SW1-10 ON. Then switch
power OFF/ON.
Figure 2-25 - HyperTerminal FLASH Download
(Download in Process)
2.4.2.3 Remote Upgrade of ControlWave XFC Firmware
It is possible to download system firmware into an unattended remote ControlWave XFC.
This function can only be accomplished if CPU Board Switch SW1-6 (associated with the
unit in question) is set in the ON position (factory default). The procedure for performing a
remote download of system firmware is discussed in Appendix J of the Open BSI Utilities
Manual (document D5081). Note: Remote upgrade of ControlWave XFC Firmware
